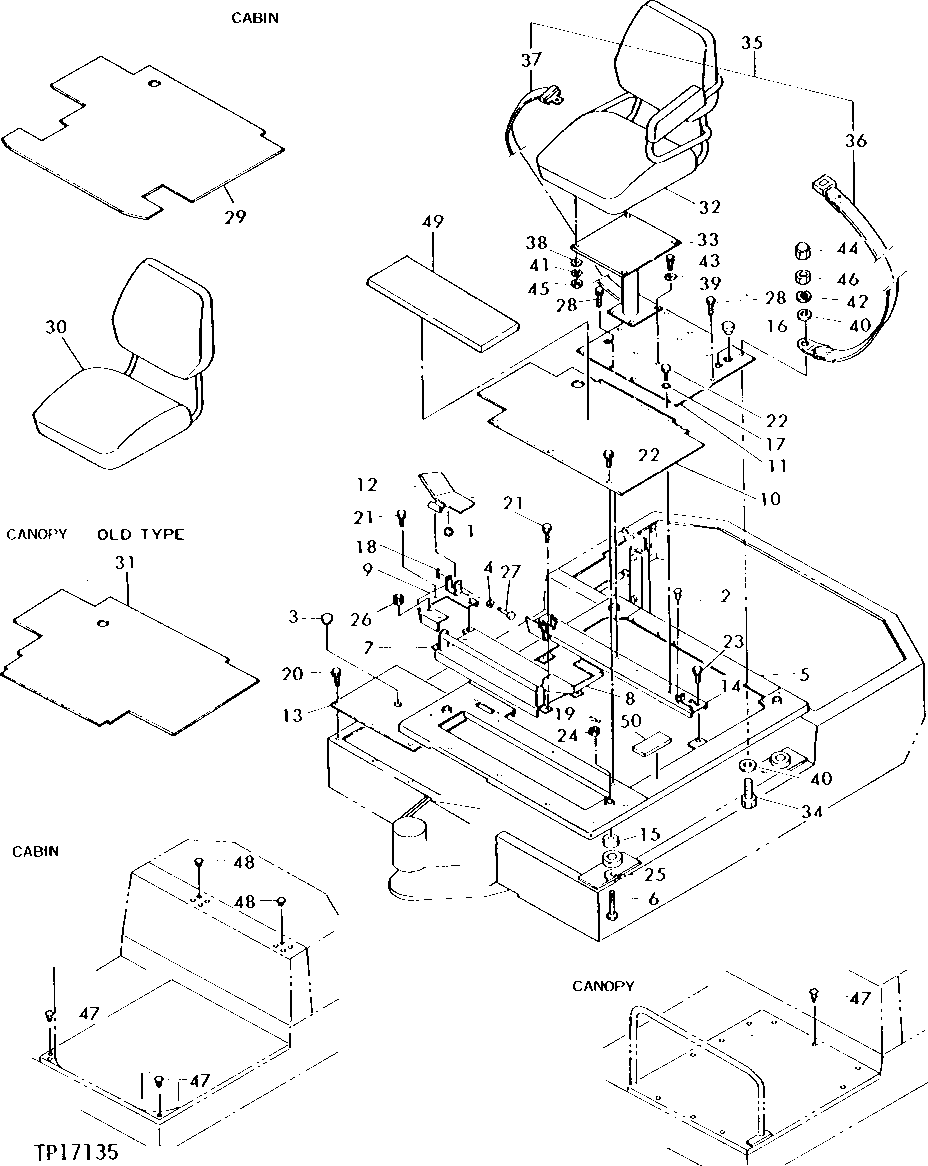

Запчасти John Deere 0 2 - SEAT, SEAT BELT, FOOT REST AND FLOOR MAT 1821 - OPERATORS STATION 18

1

T110011

GROMMET

1шт.

2

T110847

PLUG

1шт.

3

99M7045

PLUG

(SUB FOR T110399) USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

4

T110375

SPRING WASHER

1шт.

5

AT110047

FLOOR

1шт.

6

T110027

BOLT

(USE IF AVAILABLE)

4шт.

7

AT110048

STEP

1шт.

8

T110140

STEP

1шт.

9

AT110049

STEP

1шт.

AT111814

STEP

1шт.

10

AT110050

STEP

1шт.

11

AT110410

STEP

1шт.

12

AT110411

GUARD

1шт.

13

T110143

STEP

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

1шт.

14

AT110051

RIB

1шт.

15

T110025

CUSHION

8шт.

16

T110026

GROMMET

2шт.

17

CH15392

WASHER

2шт.

18

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR 11M7081)

1шт.

19

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7021)

4шт.

20

12M7066

LOCK WASHER

10 MM

5шт.

19M7166

CAP SCREW

M10 X 20

5шт.

21

12M7066

LOCK WASHER

10 MM

9шт.

19M7166

CAP SCREW

M10 X 20

9шт.

22

12M7066

LOCK WASHER

10 MM

6шт.

19M7166

CAP SCREW

M10 X 20

6шт.

23

12M7066

LOCK WASHER

10 MM, USE WITH CANOPY, CANOPY AND AUXILIARY VALVE AND CAB

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

24

T110475

NUT

4шт.

25

T110600

WASHER

4шт.

26

T110613

GROMMET

1шт.

27

T110625

PIN

1шт.

28

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

29

T111620

MAT

USE WITH CAB, CAB AND AUXILIARY VALVE

1шт.

30

AT111875

SEAT

(SUB FOR AT110412) USE WITH CAB, CAB AND AUXILIARY VALVE

1шт.

31

MAT

( T111148 NO LONGER AVAILIABLE) (USE WITH CANOPY, CANOPY AND AUXILIARY VALVE)

1шт.

32

AT111874

SEAT

(SUB FOR AT110413 OR T114171) USE WITH CANOPY, CANOPY AND AUXILIARY VALVE

1шт.

33

T111013

SUPPORT

1шт.

34

19M8637

CAP SCREW

M10 X 40, (SUB FOR T111201)

2шт.

35

BELT

( AT110414 NO LONGER AVAILABLE)

1шт.

36

AT110415

SEAT BELT

1шт.

37

AT110416

SEAT BELT

1шт.

38

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

39

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

40

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

41

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

42

12M7060

WASHER

5.300 MM

2шт.

43

12M7066

LOCK WASHER

10 MM

4шт.

19M7402

CAP SCREW

M10 X 25

4шт.

44

T111322

CAP

2шт.

45

14M7273

NUT

M8

4шт.

46

14M7274

NUT

M10

2шт.

47

T110847

PLUG

USE WITH CAB, CAB AND AUXILIARY VALVE

10шт.

48

99M7045

PLUG

(SUB FOR T110399)

8шт.

49

T111621

SEAT

1шт.

50

T111622

SEAT

USE WITH CANOPY, CANOPY AND AUXILIARY VALVE

1шт.
