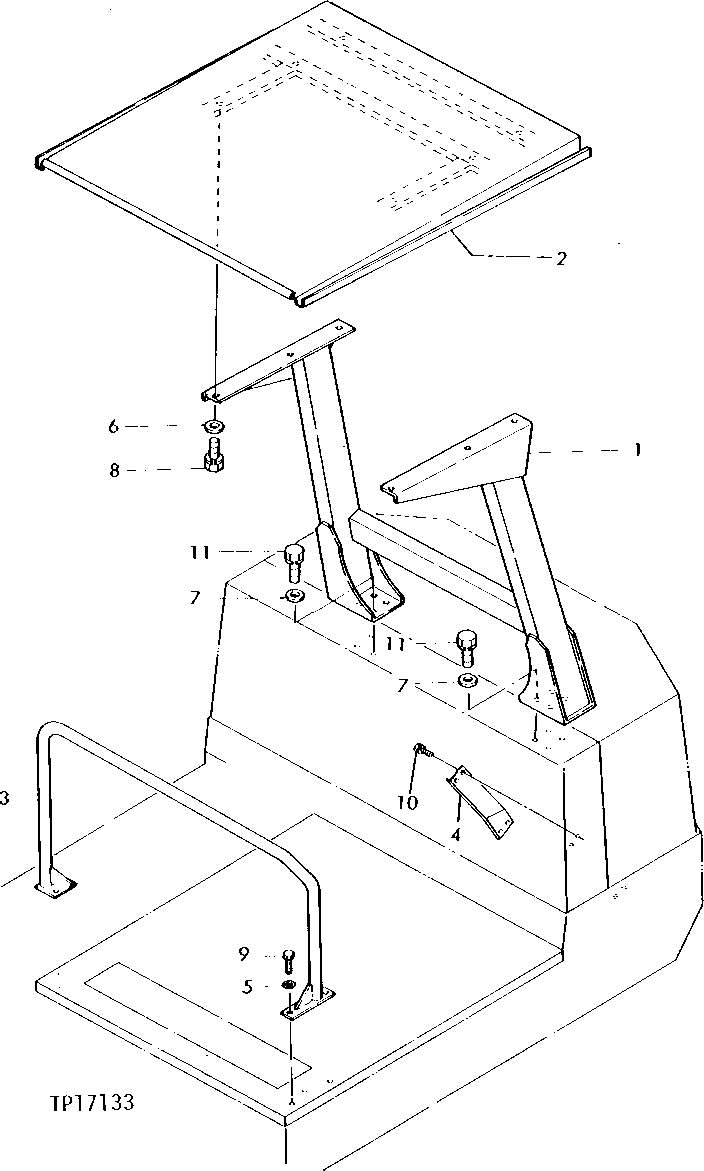

Запчасти John Deere 0 6 - CANOPY 1810 - OPERATORS STATION 18

1

AT111742

CANOPY

(SUB AT111742) (SUB FOR AT110423)

1шт.

2

AT111742

CANOPY

(SUB AT111742) (SUB FOR AT110424)

1шт.

AT111742

CANOPY

ONE-PIECE WELDED ASSEMBLY

1шт.

3

AT110057

GRIP

1шт.

4

T111062

SUPPORT

1шт.

5

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM

6шт.

7

24M7047

WASHER

13 X 24 X 2.500 MM

8шт.

8

12M7066

LOCK WASHER

10 MM

6шт.

19M7166

CAP SCREW

M10 X 20

6шт.

9

12M7066

LOCK WASHER

10 MM

4шт.

19M7402

CAP SCREW

M10 X 25

4шт.

10

12M7066

LOCK WASHER

10 MM

4шт.

19M7402

CAP SCREW

M10 X 25

4шт.

11

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

8шт.

19M8011

CAP SCREW

M12 X 30

8шт.
