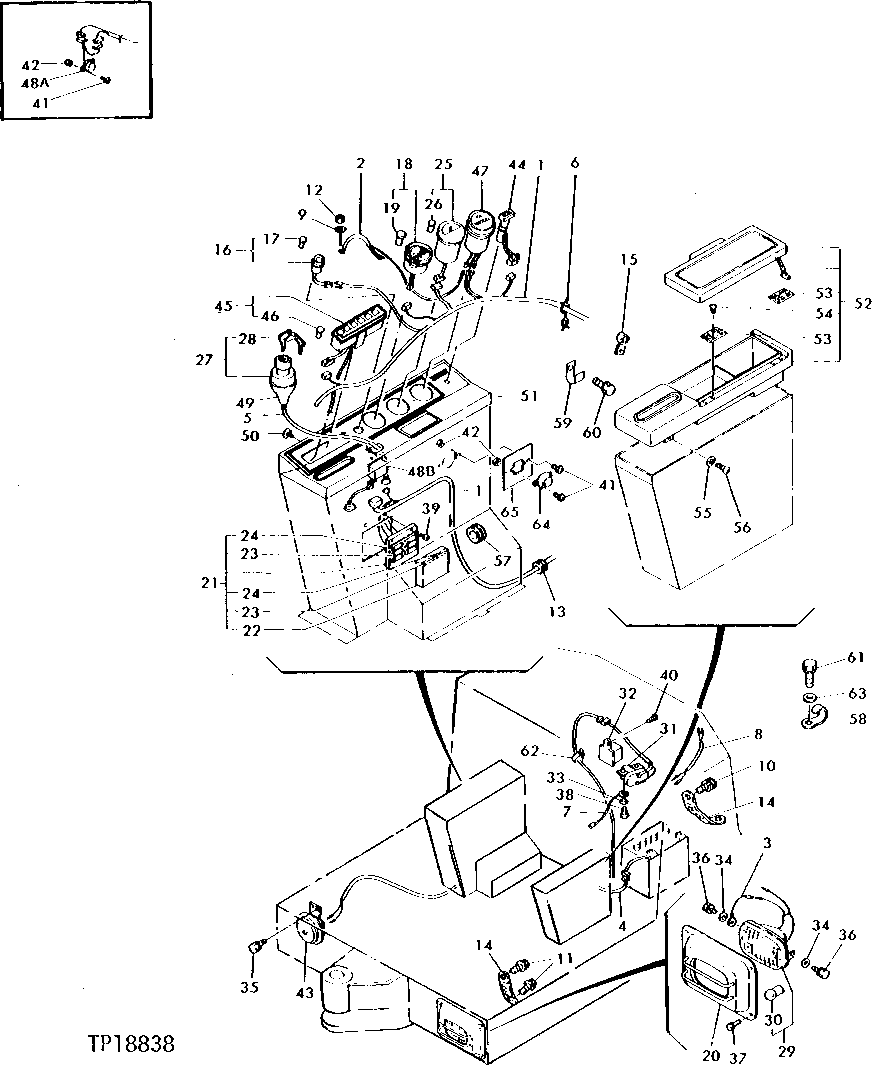

Запчасти John Deere 0 8 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

41

T110459

SCREW WITH WASHER

2шт.

T110459

SCREW WITH WASHER

4шт.

42

T110465

NUT

2шт.

T110465

NUT

4шт.

43

T110480

HORN

1шт.

44

T110519

SWITCH

(LIGHT)

1шт.

45

AT110215

MONITOR CONSOLE

1шт.

INSTRUMENT PANEL

( AT110592 OR AT111780 NO LONGER AVAILABLE FOR SERVICE)

1шт.

46

T110521

BULB

(12 VOLT 1.7 WATT)

5шт.

T110521

BULB

(12 VOLT 1.7 WATT)

3шт.

47

T110524

HOUR METER

1шт.

48A

T110529

ELECTRONIC CONTROL UNIT

1шт.

48B

T110530

TIMER

(BUZZER)

1шт.

49

T111336

COVER

1шт.

50

T110847

PLUG

2шт.

51

T111033

PANEL

1шт.

52

INSTRUMENT PANEL

(SUB FOR AT110397) (LEFT) ( AT111725 NO LONGER AVAILABLE FOR SERVICE) (SUB INDIVIDUAL COMPONENTS)

1шт.

53

T114048

HINGE

(SUB FOR T111032)

2шт.

54

T114049

SCREW

(SUB FOR T114065)

12шт.

55

CH13482

WASHER

3шт.

56

T110849

SCREW WITH WASHER

3шт.

57

T110622

GROMMET

1шт.

58

T111144

CLAMP

3шт.

59

( CH13189 NO LONGER AVAILABLE)

1шт.

60

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

19M7964

CAP SCREW

M8 X 12

1шт.

61

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

62

T110612

TIE BAND

1шт.

63

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

64

T110992

AUDIBLE WARNING ALARM

1шт.

65

T110285

BRACKET

1шт.
