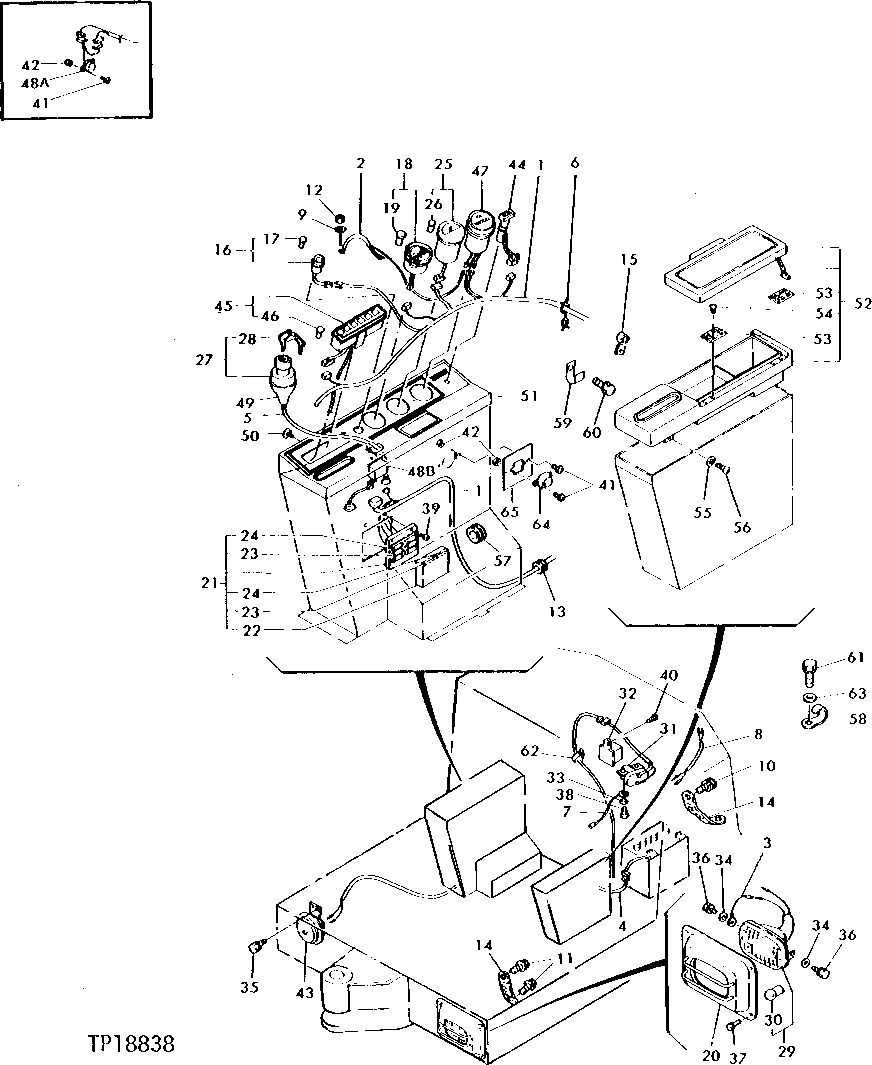

Запчасти John Deere 0 6 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

1

T111028

WIRING HARNESS

1шт.

T111954

WIRING HARNESS

1шт.

2

T110066

WIRING HARNESS

1шт.

3

T110067

WIRING LEAD

1шт.

4

T110092

LINK

1шт.

5

T110093

WIRING HARNESS

1шт.

6

T110095

TIE BAND

4шт.

7

T111030

WIRE

1шт.

8

T111031

WIRE

1шт.

9

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

10

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

19M7386

CAP SCREW

M12 X 20

1шт.

11

19M7783

SCREW

M10 X 16, (SUB FOR T110460)

2шт.

12

14M7274

NUT

M10

1шт.

13

T110485

GROMMET

1шт.

14

T110624

GROUND CABLE

2шт.

15

T110015

CLAMP

1шт.

16

AT110208

LAMP

1шт.

17

T110390

BULB

(12 VOLT 3.4 WATT)

1шт.

18

AT110589

TEMPERATURE GAUGE

ENGINE COOLANT

1шт.

19

T111335

BULB

1шт.

20

AT110388

COVER

1шт.

21

AT110211

FUSE BOX

1шт.

22

T110389

COVER

1шт.

23

CH11321

FUSE

(10 AMP) ALTERNATOR, FUEL TRANSFER PUMP, CIGAR LIGHTER, HORN, LIGHTS, MONITOR AND GAUGES

5шт.

24

AT39227

FUSE

(SUB FOR CH11322 OR T116143) (15 AMP) WIPERS, HEATER

3шт.

25

AT110008

GAUGE

FUEL

1шт.

26

T111335

BULB

1шт.

27

AT110584

SWITCH

IGNITION

1шт.

28

AT110583

KEY

1шт.

29

AT110210

LAMP

(HEAD)

1шт.

30

CH15208

BULB

1шт.

31

AT212068

RELAY

(USE T111004 UNTIL EXHAUSTED) (SUB FOR T111004) (SAFETY) (WITH 5 WIRES)

1шт.

32

T111402

TIMER

1шт.

33

CH10525

WASHER

2шт.

34

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

35

CH13781

BOLT

2шт.

36

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

37

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

38

M801342

SCREW WITH WASHER

2шт.

39

T111377

SCREW

2шт.

40

T110455

SCREW WITH WASHER

1шт.
