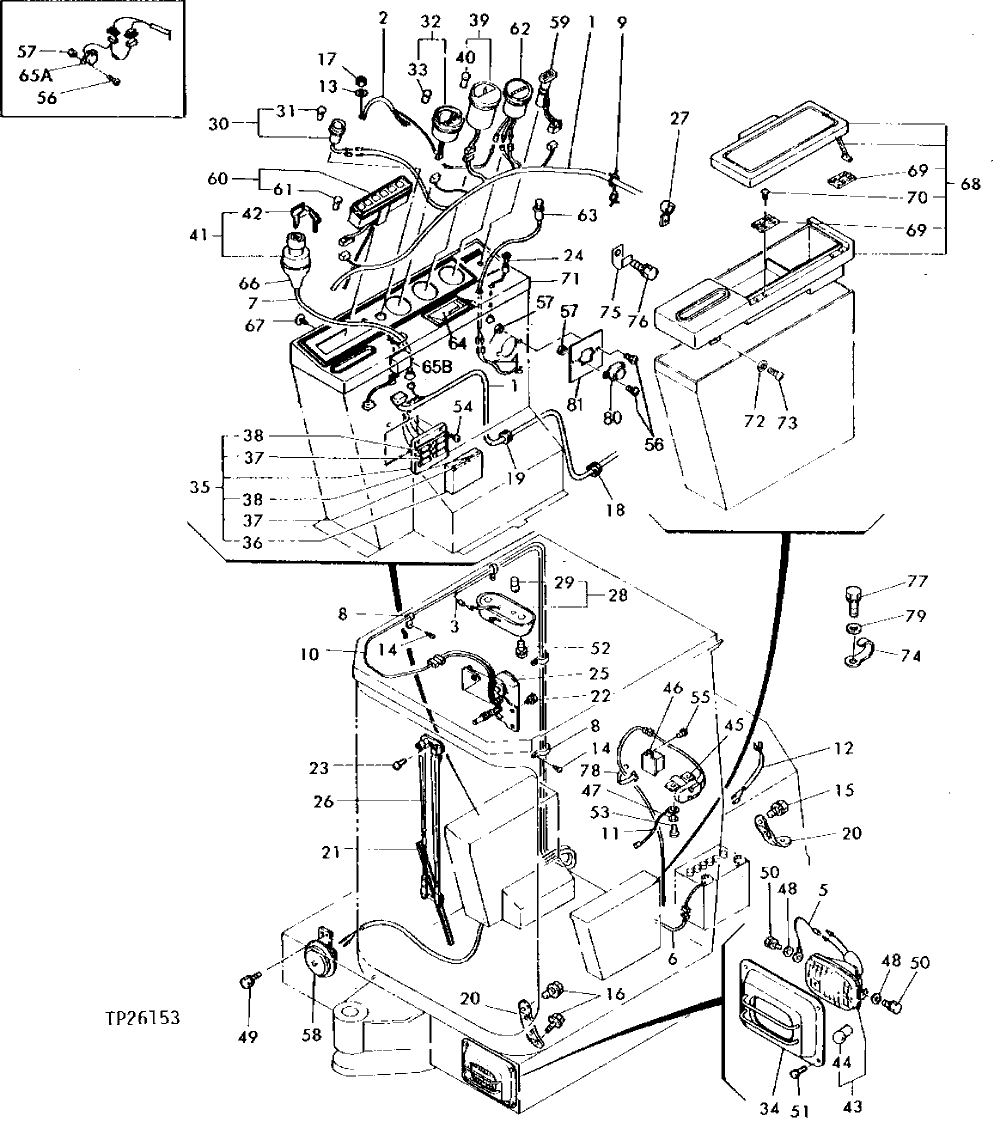

Запчасти John Deere 0 4 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

47

CH10525

WASHER

2шт.

48

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

49

CH13781

BOLT

2шт.

50

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

51

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

52

T110452

SCREW WITH WASHER

2шт.

53

M801342

SCREW WITH WASHER

2шт.

54

T111377

SCREW

2шт.

55

T110455

SCREW WITH WASHER

1шт.

56

T110459

SCREW WITH WASHER

2шт.

T110459

SCREW WITH WASHER

4шт.

57

T110465

NUT

2шт.

T110465

NUT

4шт.

58

T110480

HORN

1шт.

59

T110519

SWITCH

LIGHT

1шт.

60

AT110215

MONITOR CONSOLE

1шт.

INSTRUMENT PANEL

( AT110592 OR AT111780 NO LONGER AVAILABLE FOR SERVICE)

1шт.

61

T110521

BULB

5шт.

T110521

BULB

(12 VOLT 1.7 WATT)

3шт.

62

T110524

HOUR METER

1шт.

63

T110525

ELECTRICAL LIGHTER

CIGAR

1шт.

64

T110526

ASHTRAY

1шт.

65A

T110529

ELECTRONIC CONTROL UNIT

1шт.

65B

T110530

TIMER

(BUZZER)

1шт.

66

T111336

COVER

1шт.

67

T110847

PLUG

2шт.

68

INSTRUMENT PANEL

(SUB FOR AT110397) ( AT111725 NO LONGER AVAILABLE FOR SERVICE) (SUB INDIVIDUAL COMPONENTS)

1шт.

69

T114048

HINGE

(SUB FOR T111032)

2шт.

70

T114049

SCREW

(SUB FOR T114065)

12шт.

71

T110846

INSTRUMENT PANEL

1шт.

72

CH13482

WASHER

3шт.

73

T110849

SCREW WITH WASHER

3шт.

74

T111144

CLAMP

3шт.

75

( CH13189 NO LONGER AVAILABLE)

1шт.

76

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

19M7964

CAP SCREW

M8 X 12

1шт.

77

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

78

T110612

TIE BAND

1шт.

79

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

80

T110992

AUDIBLE WARNING ALARM

1шт.

81

T110285

BRACKET

1шт.
