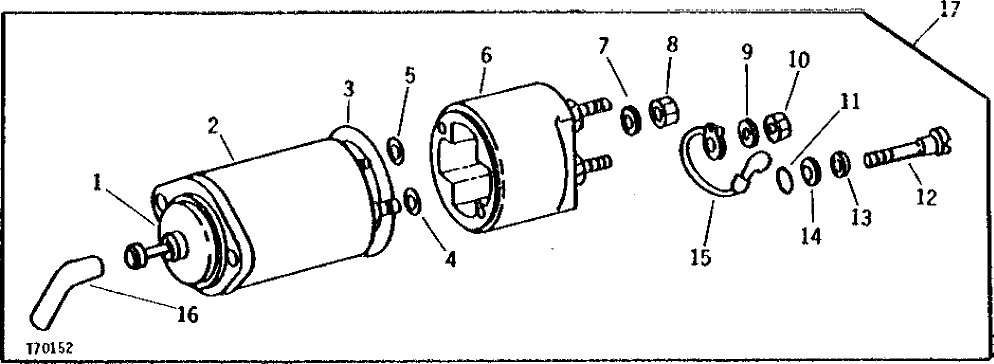

Запчасти John Deere 90D 51 - STARTING MOTOR SOLENOID SWITCH 0422 STARTING MOTOR AND FASTENINGS

1

R52385

Boot

1шт.

2

Housing

(SUB RE15661)

1шт.

3

R68224

Gasket

1шт.

4

R56792

Washer

1шт.

5

R56793

Shim

1шт.

6

RE20872

Cover

(SUB FOR AR84334)

1шт.

7

12H303

Lock Washer

5/16"

2шт.

8

R51671

Nut

1шт.

9

12H246

Lock Washer

0.190"

1шт.

10

14H631

Nut

0.190"

1шт.

11

R50894

O-Ring

1шт.

12

R51669

Screw

2шт.

13

12H302

Lock Washer

1/4"

2шт.

14

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

15

RE15058

Wire

1шт.

16

R68222

Boot

1шт.

17

RE15661

Solenoid

1шт.

20

RE15718

Starter Motor

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE15718)

1шт.
