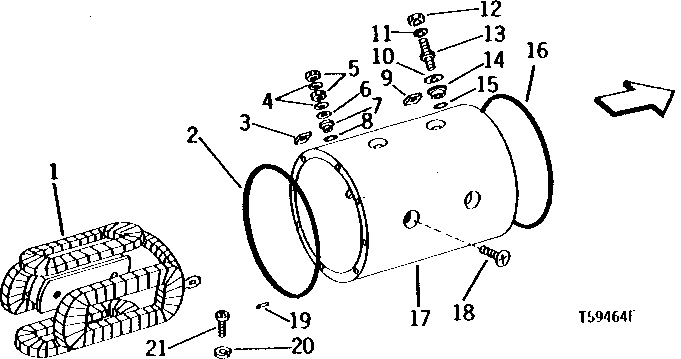

Запчасти John Deere 90D 49 - STARTING MOTOR AND MAIN FRAME COIL 0422 STARTING MOTOR AND FASTENINGS

1

AR84339

Field Winding Coil

1шт.

2

R50913

O-Ring

1шт.

3

R50916

Washer

1шт.

4

12H246

Lock Washer

0.190"

2шт.

5

R50907

Nut

2шт.

6

24H1283

Washer

7/32" X 1/2" X 0.049"

1шт.

7

R50914

Washer

1шт.

8

R50915

O-Ring

1шт.

9

R50920

Bushing

1шт.

10

R50917

Washer

1шт.

11

R50899

Lock Washer

1шт.

12

R50909

Nut

1шт.

13

R56802

Stud

1шт.

14

R50918

Washer

1шт.

15

R50919

O-Ring

1шт.

16

R50922

O-Ring

1шт.

17

Housing

(SUB RE15718)

1шт.

18

R50921

Screw

8шт.

19

R51664

Dowel Pin

1шт.

20

12H246

Lock Washer

0.190"

1шт.

21

R50931

Screw

1шт.

22

RE15718

Starter Motor

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE15718)

1шт.
