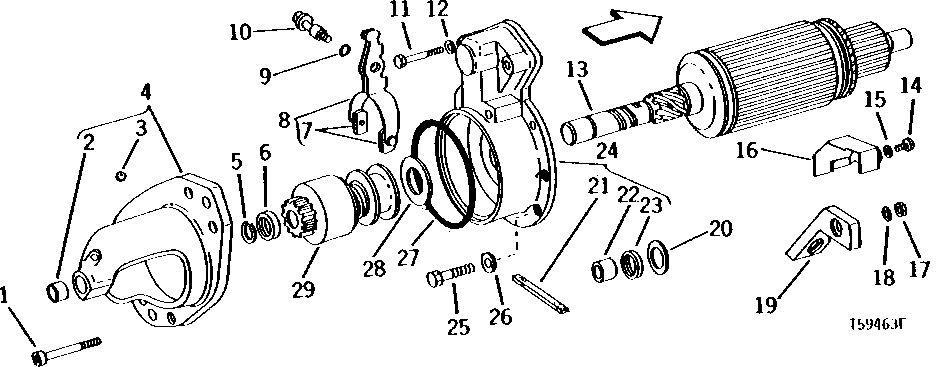

Запчасти John Deere 90D 48 - STARTING MOTOR DRIVE MOTOR AND ARMATURE 0422 STARTING MOTOR AND FASTENINGS

1

R65700

Screw

6шт.

2

R50891

Bushing

1шт.

3

R50892

Plug

1шт.

4

RE16047

Starter Motor

REAR HOUSING

1шт.

5

R50902

Snap Ring

1шт.

6

R65701

Locking Collar

1шт.

7

R51667

Wear Plate

2шт.

SE501424

Starter Motor

(REMAN FOR TY25970)

1шт.

8

AR67827

Arm

1шт.

9

R52387

O-Ring

1шт.

10

R50897

Shaft

1шт.

11

R50893

Screw

2шт.

12

12H302

Lock Washer

1/4"

2шт.

13

Armature

( AR84338 NO LONGER AVAILABLE)

1шт.

14

AR55946

Screw

1шт.

15

Washer

(SUB RE39064)

1шт.

16

Shield

(SUB RE39064)

1шт.

17

14H971

Nut

1/2"

1шт.

18

R50899

Lock Washer

1шт.

19

R50910

Electrical Connector Assy

1шт.

20

R50906

Thrust Washer

1шт.

21

R51666

Wick

FELT, OIL

1шт.

22

R51665

Bushing

CENTER HOUSING

1шт.

23

AR55947

Seal

1шт.

24

Housing

CENTER BEARING ( AR68731 NLA)

1шт.

25

R51661

Screw

2шт.

26

12H302

Lock Washer

1/4"

2шт.

27

R50901

Washer

1шт.

28

R50905

Wear Ring

1шт.

29

AR84337

Drive

1шт.

30

RE15718

Starter Motor

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE15718)

1шт.

TY25970

Starter Motor

(NLA) (ORDER SE501424)

1шт.

SE501424

Starter Motor Reman

(REMAN FOR TY25970)

1шт.
