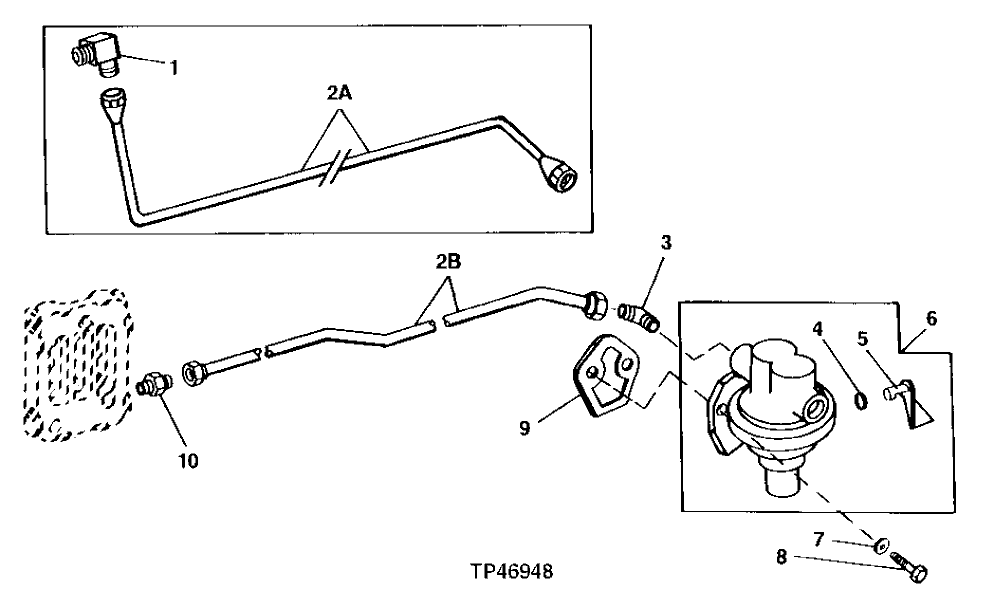

Запчасти John Deere 90D 46 - FUEL TRANSFER PUMP 0421 FUEL TRANSFER PUMP

1

R82131

Elbow Fitting

1шт.

2A

Fuel Line

( AR84733 NO LONGER AVAILABLE ), (SUB RE26214 AND R82131)

1шт.

RE26214

Fuel Line

1шт.

2B

RE36688

Fuel Line

1шт.

3

R82131

Elbow Fitting

1шт.

4

A4365R

O-Ring

1шт.

5

Lever

( AR52556, USE IF AVAILABLE)

1шт.

6

RE42211

Fuel Pump

(SUB FOR RE27667 ) (ALSO ORDER R520618)

1шт.

7

T27860

Washer

2шт.

8

19H1849

Cap Screw

5/16" X 1-1/4"

2шт.

9

R520618

Gasket

(SUB FOR R97350)

1шт.

10

R27346

Fitting

1шт.
