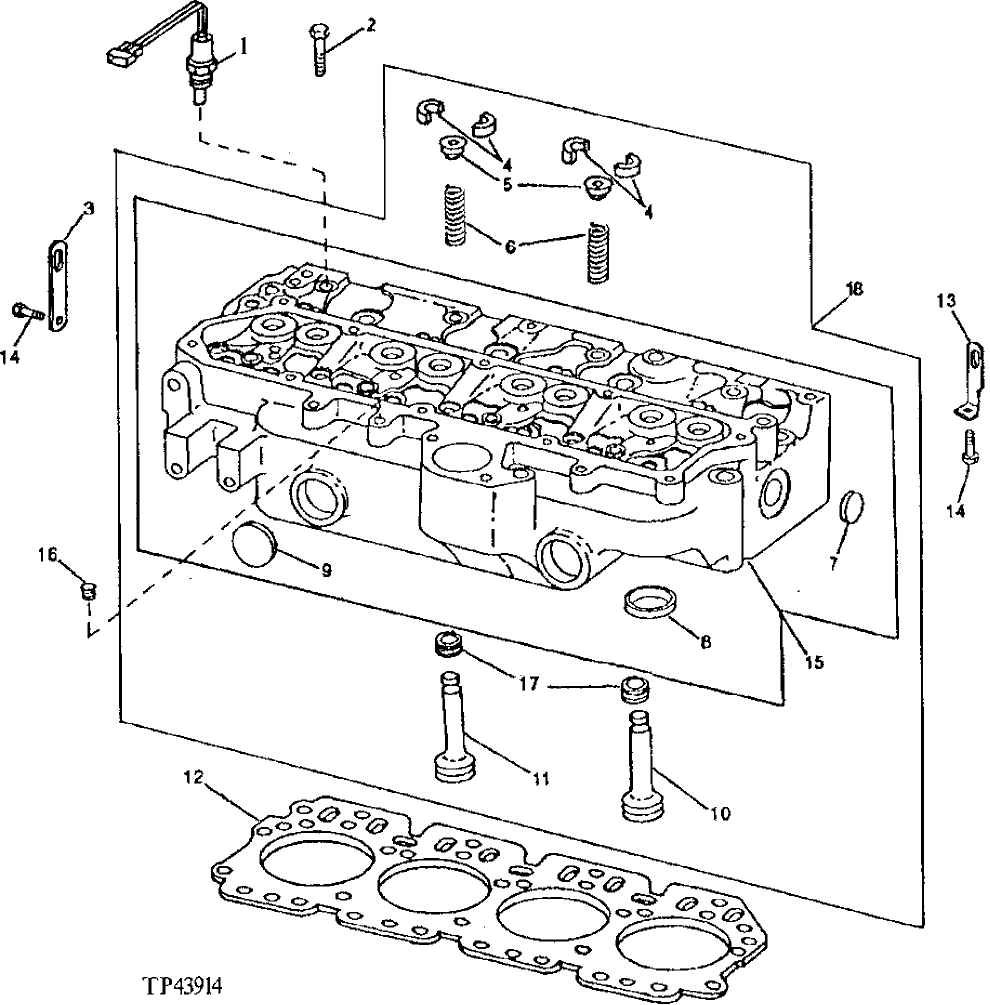

Запчасти John Deere 90D 33 - CYLINDER HEAD, HEAD GASKET AND VALVES (300000 - ) 0409 CYLINDER HEAD AND VALVES

1

AT120609

Sensor

(ENGINE COOLANT TEMPERATURE)

1шт.

2

R85363

Cap Screw

18шт.

3

T26509

Strap

1шт.

4

R91889

Retainer

16шт.

5

RE60005

Rotator

(SUB FOR RE31323)

8шт.

6

R26125

Spring

8шт.

7

A3910R

Plug

2шт.

8

R98063

Valve Seat Insert

STANDARD SIZE INTAKE VALVE

4шт.

R98335

Valve Seat Insert

OVERSIZE INTAKE VALVE

4шт.

R85687

Valve Seat Insert

STANDARD SIZE EXHAUST VALVE

4шт.

R93910

Valve Seat Insert

OVERSIZE EXHAUST VALVE

4шт.

9

R43409

Plug

2шт.

10

R90692

Exhaust Valve

STANDARD

4шт.

R97492

Exhaust Valve

015" OVERSIZE

4шт.

R97493

Exhaust Valve

030" OVERSIZE

4шт.

11

R98062

Intake Valve

STANDARD

4шт.

R97490

Intake Valve

015" OVERSIZE

4шт.

R97491

Intake Valve

030" OVERSIZE

4шт.

12

R125863

Gasket

(SUB FOR R92425)

1шт.

13

R91903

Strap

1шт.

14

19H2472

Cap Screw

1/2" X 1"

2шт.

15

RE48616

Cylinder Head

(SUB RE48615 ) (MARKED R111949)( SUB FOR RE36428, MARKED R97628)

1шт.

16

R104592

Pipe Plug

(SUB FOR 15H558, THIS APPLICATION)

1шт.

17

RE31617

Seal

STANDARD

8шт.

Seal

RE37643 015"OVERSIZE NO LO NGER AVAILABLE(SUB RE31617)

8шт.

Seal

RE37644 030"OVERSIZE NO LO NGER AVAILABLE(SUB RE31617)

8шт.

18

RE48615

Cylinder Head

CONVENIENCE ASSEMBLY (MARKED R112746, R111949 OR R97628)

1шт.

SE501585

Cylinder Head Reman

(MARKED R112746, R111949 OR R97628) (REMAN FOR RE48615)

1шт.
