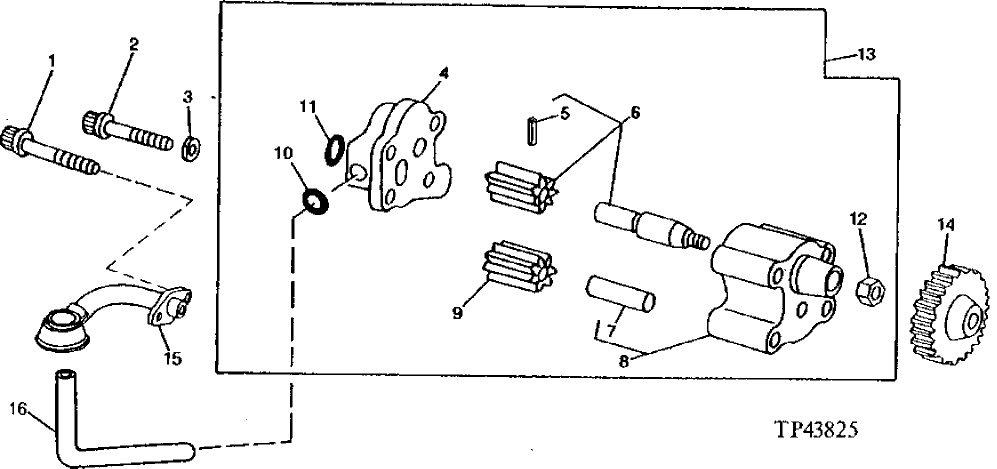

Запчасти John Deere 90D 29 - ENGINE OIL PUMP 0407 OILING SYSTEM

1

R74552

Screw

2шт.

2

R125586

Cap Screw

(SUB FOR R57059)

2шт.

3

R74553

Washer

10 X 16 X 3.050 mm (0. 394" X 0.630" X 0.120")

2шт.

4

R53382

Cover

1шт.

5

34H280

Spring Pin

3/16" X 7/8" (SUB FOR M 3853T, THIS APPLICATION)

1шт.

6

AR62978

Pinion

1шт.

7

T20091

Dowel Pin

1шт.

8

Housing

(MARKED R54615 ) (SUB RE55343 AND R113752)

1шт.

9

R54614

Gear

(7 TEETH)

1шт.

10

R74354

O-Ring

1шт.

11

R61871

O-Ring

1шт.

12

14H826

Nut

1/2"

1шт.

13

RE35685

Oil Pump

(SUB RE55343 AND R113752)

1шт.

14

T20298

Gear

(33 TEETH)

1шт.

15

RE36425

Oil Pump Intake

(SUB FOR AR60701)

1шт.

16

T20050

Oil Tube

1шт.
