Запчасти John Deere 90D 27 - ENGINE OIL DIPSTICK AND ENGINE OIL FILTER 0407 OILING SYSTEM

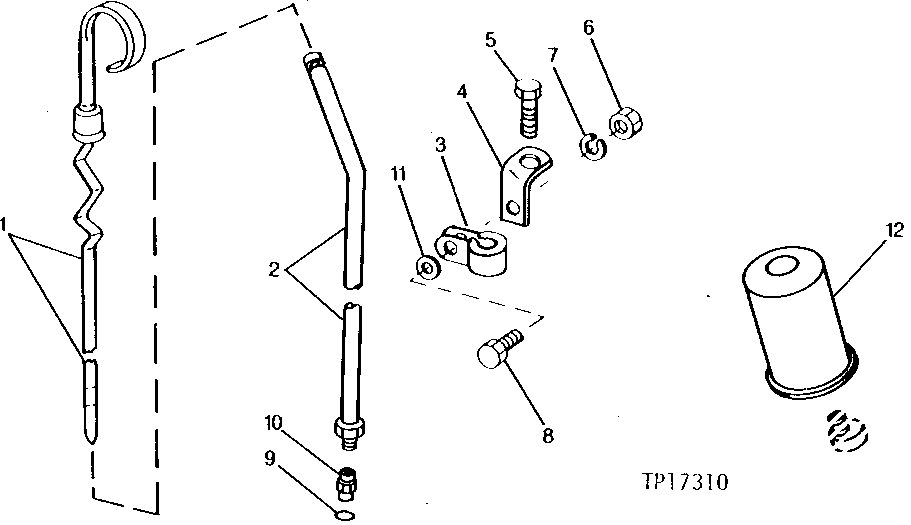

Схема запчастей John Deere 90D - 27 - ENGINE OIL DIPSTICK AND ENGINE OIL FILTER 0407 OILING SYSTEM

Артикул

Название

Примечание

Количество

1

RE10191

Dipstick

(SUB FOR RE46787, THIS APPLICATION)

1шт.

2

RE30695

Dipstick Tube

1шт.

3

T28862

Clamp

(SUB FOR T29299)

1шт.

4

R60357

Angle

1шт.

5

19H1895

Cap Screw

1/2" X 3/4"

1шт.

6

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

7

12H304

Lock Washer

3/8"

ARшт.

8

R122618

Screw

1шт.

9

R10093

O-Ring

ARшт.

10

R77016

Adapter Fitting

1шт.

11

24M7106

Washer

10 X 18 X 2.500 mm

1шт.

12

T19044

Oil Filter

1шт.

Выбрано товаров: 12
