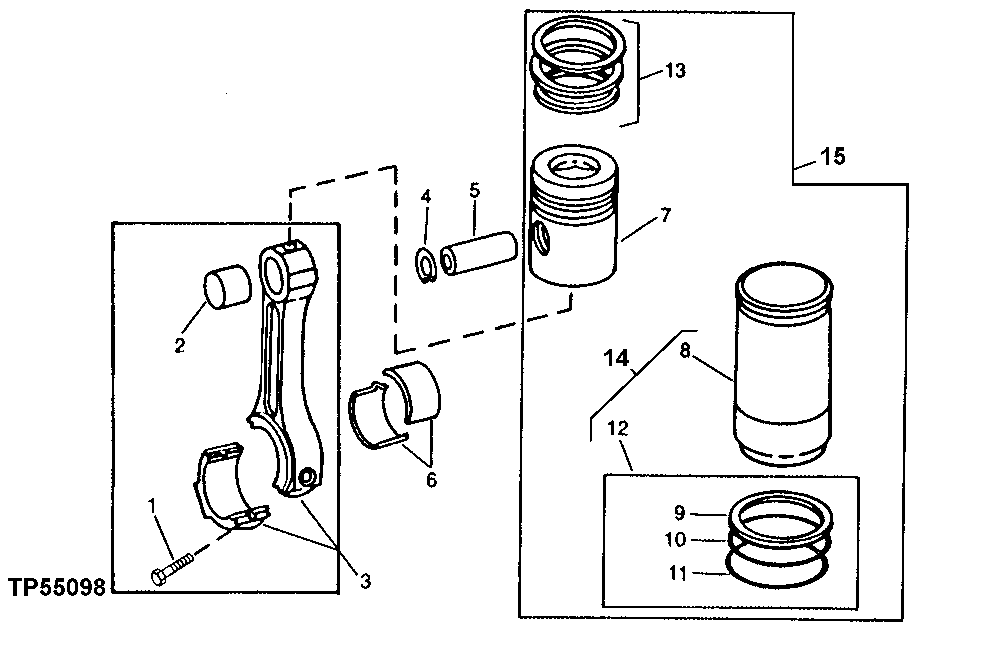

Запчасти John Deere 90D 20 - CONNECTING ROD, PISTON, RINGS AND LINER 0403 CONNECTING RODS AND PISTONS

1

R80033

Cap Screw

8шт.

2

R55647

Bushing

4шт.

3

RE21076

Connecting Rod

(MARKED R80034) (SUB (4) SE500747)

4шт.

SE500747

Connecting Rod Reman

(REMAN FOR RE21076)

ARшт.

4

M41029

Snap Ring

8шт.

5

R125754

Piston Pin

(SUB FOR R51731)

4шт.

6

RE27348

Bearing Kit

(SUB FOR AT21138)STAND ARD (SET OF (2) T20011)

4шт.

Bearing

( AT21122 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) T23566)

4шт.

RE27349

Bearing Kit

(SUB FOR AT21124) 0.25 MM (.010 ") UNDERSIZE (SET OF (2) T23568)

4шт.

RE27358

Bearing

(SUB FOR AT21126) 0.51 MM (.020 ") UNDERSIZE (SET OF (2) T23570)

4шт.

RE27364

Bearing Kit

(SUB FOR AT21128) 0.76 MM (.030 ") UNDERSIZE (SET OF (2) T23572)

4шт.

7

Piston

(USE IF AVAILABLE) (WHEN RE19282 I S NO LONGER AVAILABLE, SUB RE30250)

4шт.

8

Cylinder Liner

( R116281 IS NO LONGER AVAILABLE) (SUB FOR R51726 OR RE90059) (SUB RE500023 OR RE22678)

4шт.

9

R26121

O-Ring

4шт.

10

R48767

Packing

4шт.

11

R55453

O-Ring

4шт.

12

AR65507

O-Ring Kit

4шт.

13

RE507852

Piston Ring Kit

(SUB FOR RE15674, RE48818 OR RE66820)

4шт.

14

RE22678

Piston-Liner Kit

(SUB FOR RE500023) (MARKED R116281)

4шт.

15

RE30250

Kit

(SUB FOR RE24458) (MARKED RE19282)

4шт.
