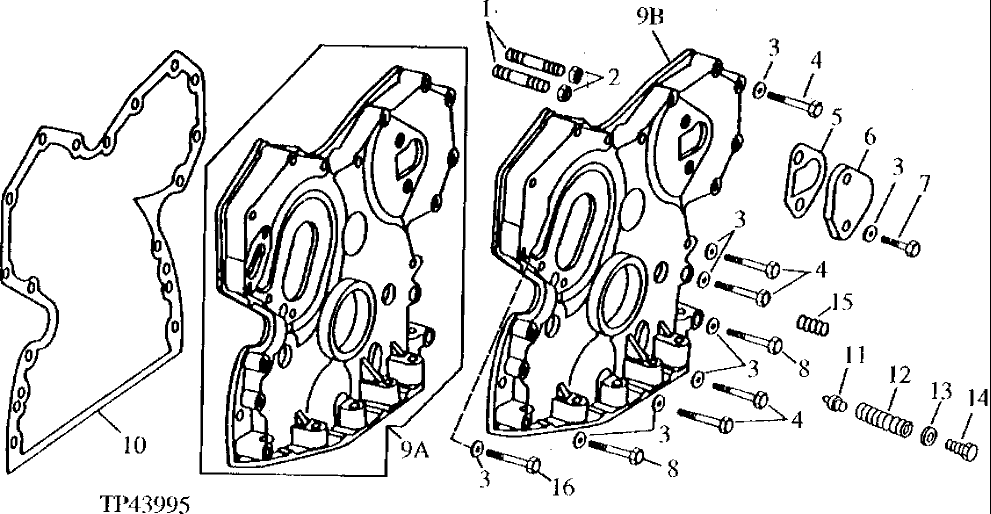

Запчасти John Deere 90D 19 - TIMING GEAR COVER 0402 CAMSHAFT AND VALVE ACTUATING MEANS

1

R122226

Stud

(SUB FOR R122226)

2шт.

2

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

3

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

4

19H3408

Screw

3/8" X 1-3/4"

5шт.

19H3693

Screw

3/8" X 1-1/4"

5шт.

5

R125066

Gasket

(SUB FOR R97773)

1шт.

6

R126041

Cover

(SUB FOR T20362)

1шт.

7

R124277

Cap Screw

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3733

Screw

3/8" X 2-1/2"

2шт.

9A

RE39252

Cover

WITH INSERTS (SUB FOR RE27895)

1шт.

9B

RE56443

Cover

1шт.

10

R126513

Gasket

(SUB FOR R97454, R119269 OR R121314)

1шт.

11

R83169

Valve

1шт.

12

T27658

Spring

1шт.

13

A4827R

Washer

1шт.

14

T27657

Fitting Plug

1шт.

15

15H275

Pipe Plug

1/4"

1шт.

16

19H1819

Cap Screw

3/8" X 2-1/8"

1шт.
