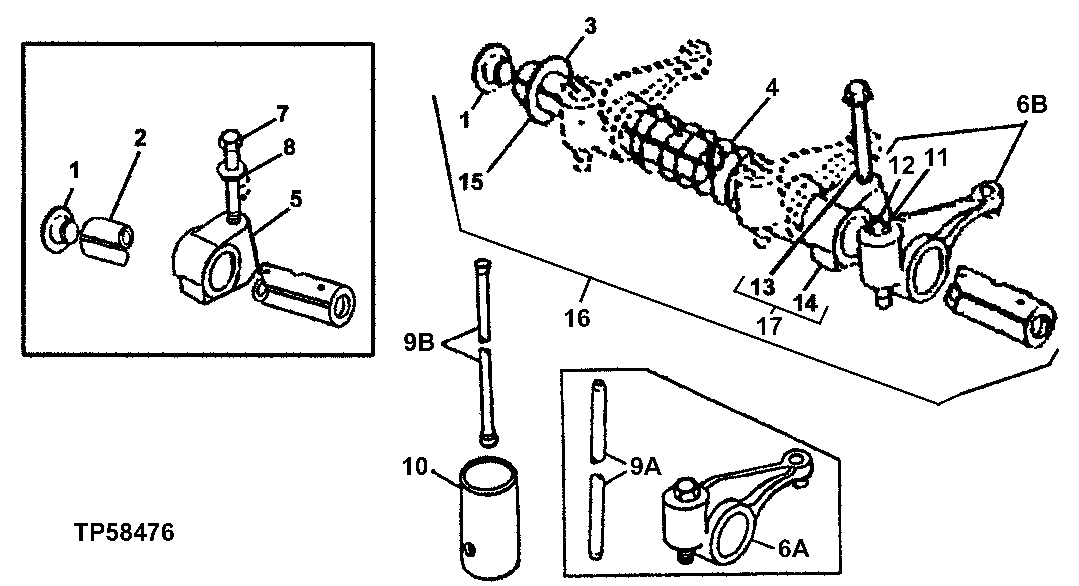

Запчасти John Deere 90D 17 - Rocker Arm Shaft, Push Rods and Rocker Arms 0402 CAMSHAFT AND VALVE ACTUATING MEANS

1

R54565

Plug

2шт.

2

DD12120

Rocker Arm Shaft

(SUB RE502874 ) (SUB FOR R54987 ) (USE WITH 19H3031 AND T20315)

1шт.

3

T20316

Washer

2шт.

4

T20314

Spring

3шт.

5

T20315

Support

(SUB RE502861 ) (USE WI TH 19H3031 AND DD12120)

4шт.

6A

RE31973

Rocker Arm

8шт.

6B

RE62148

Rocker Arm

(SUB FOR RE43384)

8шт.

7

19H3031

Cap Screw

3/8" X 2-1/2"

4шт.

8

R42729

Washer

4шт.

9A

R82896

Push Rod

8шт.

9B

R107732

Push Rod

8шт.

10

T20073

Cam Follower

8шт.

11

R125881

Lock Nut

(SUB FOR R119314)

8шт.

12

R125880

Screw

(SUB FOR R106116)

8шт.

13

R504813

Self-Locking Screw

(SUB FOR 19H3733 AND R501529)

ARшт.

19H3031

Cap Screw

3/8" X 2-1/2"

ARшт.

14

R123161

Support

4шт.

15

Rocker Arm Shaft

NLA; ORDER RE548059

1шт.

16

RE502874

Rocker Arm Shaft

1шт.

17

RE502861

Support

1шт.
