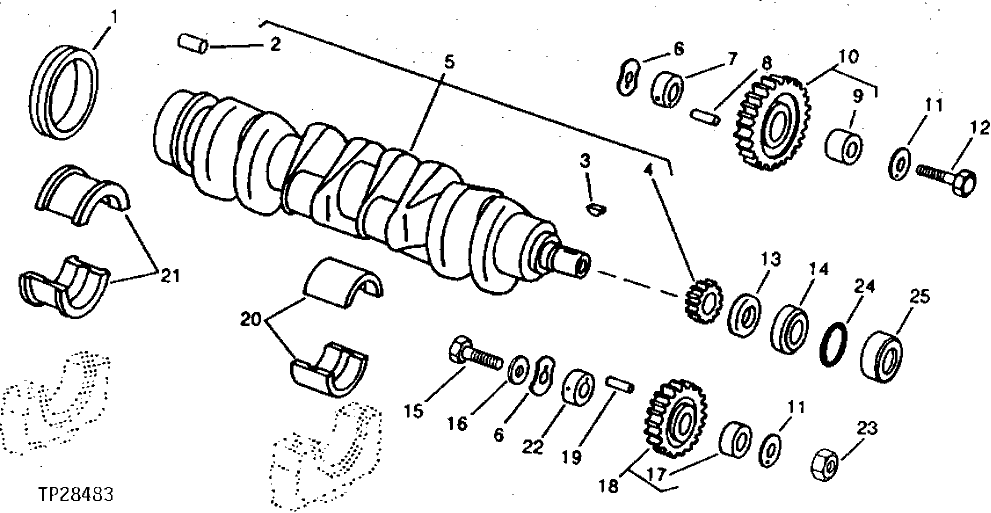

Запчасти John Deere 90D 13 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 0401 CRANKSHAFT AND MAIN BEARINGS

1

RE44574

Seal

(SUB FOR RE17831 OR RE24959)

1шт.

2

R48685

Dowel Pin

(SUB FOR A120R)

1шт.

3

26H72

Shaft Key

1/8" X 5/8"

1шт.

4

T20094

Helical Gear

(24 TEETH)

1шт.

5

Crankshaft

RE33197, MARKED R121018 NO LONGER AVA ILABLE (SUB FOR AT18030, MARKED T23519 OR T23480 AND RE57664, MARKED R81959) SUB RE48748 CRANKSHAFT KIT.(SHORT NOS E)

1шт.

RE48748

Crankshaft

1шт.

SE501646

Crankshaft Reman

(A) (REMAN FOR RE48748)

1шт.

Crankshaft

RE36605, MARKED R121018 NO LONGER AVAILABL E (SUB FOR RE20585 AND RE44468, MARKED R819 59) SUB RE65224 CRANKSHAFT KIT.(LONG NOSE)

1шт.

RE65224

Crankshaft

1шт.

SE501650

Crankshaft Reman

(A) (REMAN FOR RE65224)

1шт.

6

T26324

Thrust Washer

2шт.

7

R89824

Shaft

(SUB FOR T26323)

1шт.

8

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

9

T20034

Bushing

1шт.

10

AR91660

Gear

(55 TEETH), (MARKED R70182)

1шт.

11

T26326

Thrust Washer

2шт.

12

T26327

Screw

1шт.

13

T20046

Oil Slinger

1шт.

14

AR67942

Seal

1шт.

15

T26325

Screw

2шт.

19H3183

Cap Screw

1/2" X 2-1/8" HS, SAE 8, 1/2" X 2-1/8"

1шт.

16

R76126

Washer

2шт.

R100105

Washer

1шт.

17

T26321

Bushing

1шт.

18

AT24252

Gear

(45 TEETH), (MARKED T26322)

1шт.

19

34H286

Spring Pin

3/16" X 1-1/2"

1шт.

20

RE27352

Bearing Kit

(SUB FOR AT21140) STANDARD ( T23214)

4шт.

Bearing

( AT21108 NO LONGER AVAILABLE) 0. 05 MM (.002") UNDERSIZE ( T23552)

4шт.

RE27353

Bearing Kit

(SUB FOR AT21110)0.25 MM ( .010") UNDERSIZE ( T23554)

4шт.

RE27360

Bearing

(SUB FOR AT21112)0.51 MM ( .020") UNDERSIZE ( T23556)

4шт.

RE27368

Bearing

(SUB FOR AT21114) 0.76 MM (.030") UNDERSIZE ( T23558)

4шт.

21

R78598

Thrust Washer

(SUB FOR AT21139)STANDARD ( T23215)

1шт.

Bearing

( AT21130 NO LONGER AVAILABLE) 0. 05 MM (.002") UNDERSIZE ( T23574)

1шт.

R78598

Thrust Washer

(SUB FOR AT21132)0.25 MM ( .010") UNDERSIZE ( R130574)

1шт.

AT21134

Bearing

0.51 MM (.020") UNDERSIZE ( T23578)

1шт.

AT21136

Bearing

0.76 MM (.030") UNDERSIZE ( T23580)

1шт.

22

T26323

Shaft

(SUB R89824, R100105, 19H3183 AND E69392)

1шт.

R89824

Shaft

1шт.

23

E69392

Nut

(SUB FOR 14H865, THIS APPLICATION)

1шт.

24

H35244

Ring

1шт.

25

R81989

Sleeve

1шт.
