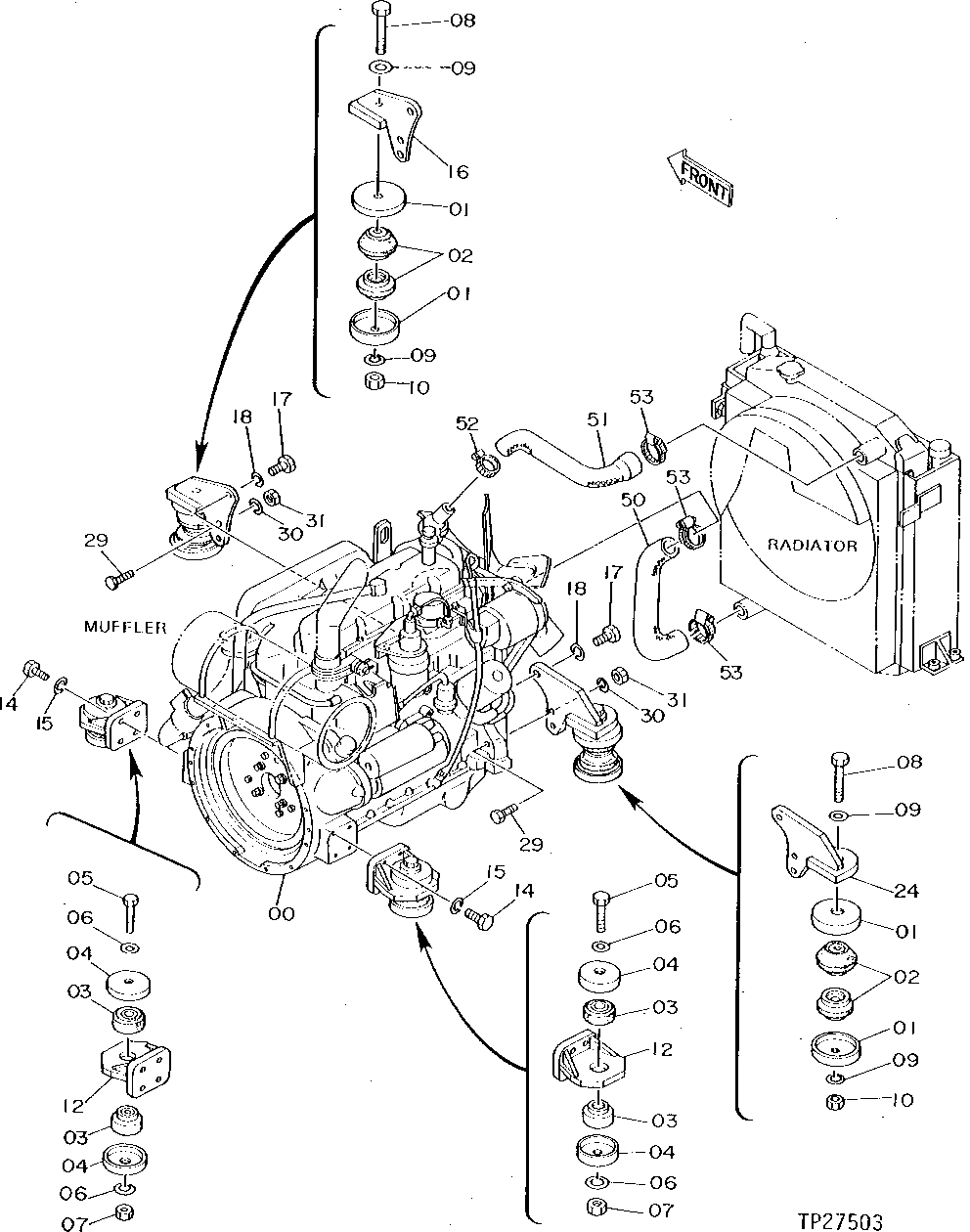

Запчасти John Deere 90D 11 - ENGINE MOUNTING PARTS 0400 REMOVAL AND INSTALLATION

0

Engine

1шт.

1

4169423

Retainer

(SUB FOR TH106409)

4шт.

2

4177883

Isolator

(SUB FOR TH106408)

4шт.

3

4184341

Isolator

(SUB FOR TH106407)

4шт.

4

4189018

Retainer

(SUB FOR TH109410)

4шт.

5

19M8970

Cap Screw

M18 X 120 (SUB FOR J931804)

2шт.

6

4114406

Washer

(SUB FOR TH100891)

4шт.

7

J951018

Nut

(SUB FOR TH100890)

2шт.

8

19M7954

Cap Screw

M16 X 150 (SUB FOR AT131549)

2шт.

9

4114405

Washer

(SUB FOR TH101105)

4шт.

10

14M7276

Nut

M16

2шт.

12

8028462

Bracket

(SUB FOR TH100892)

2шт.

14

19H2993

Cap Screw

1/2" X 1-1/2"

8шт.

15

12H301

Lock Washer

1/2"

8шт.

16

8045731

Bracket

(SUB FOR AT130742)

1шт.

17

19H2710

Cap Screw

5/8" X 1-3/4" (SUB FOR 19H1356)

4шт.

18

12H294

Lock Washer

5/8"

4шт.

24

8045732

Bracket

(SUB FOR AT130743)

1шт.

29

19H2599

Cap Screw

5/8" X 2-1/2"

2шт.

30

12H294

Lock Washer

5/8"

2шт.

31

14H1039

Nut

5/8"

2шт.

50

3049990

Radiator Hose

(SUB FOR AT130663)

1шт.

51

3047422

Hose

(SUB FOR AT130659)

1шт.

52

TY22470

Clamp

(SUB FOR AR21840, THIS APPL ICATION ) (SUB FOR AR65293)

1шт.

53

TY22470

Clamp

(SUB FOR TH101905 ) (SUB FOR AR65293)

3шт.
