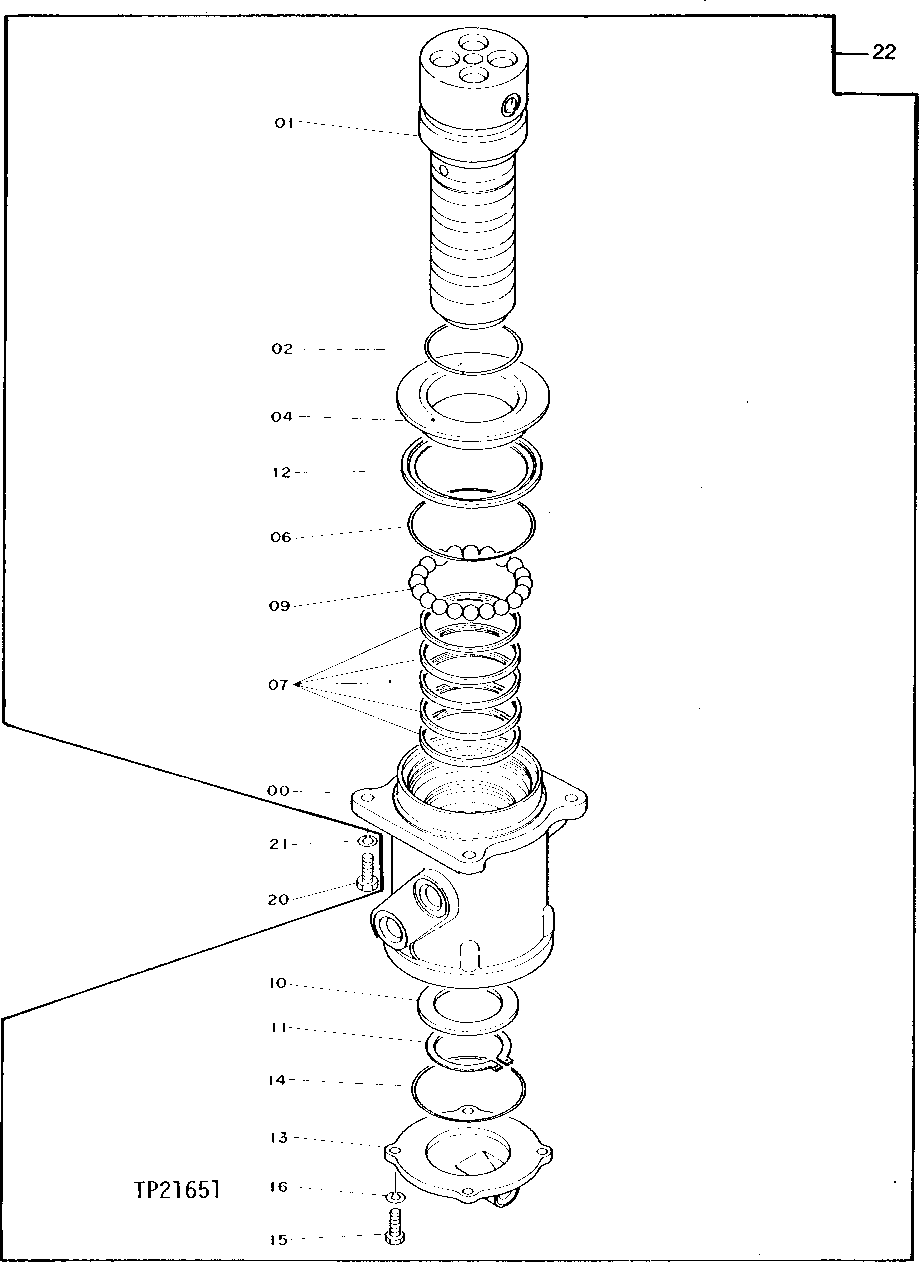

Запчасти John Deere 90D 10 - ROTARY MANIFOLD 0260 HYDRAULIC SYSTEM

0

Housing

( TH108902 NOT AVAILABLE FOR SERVICE)

1шт.

1

Spindle

( TH108903 NO LONGER AVAILABLE)

1шт.

2

CH17447

Packing

1шт.

4

4187060

Cover

(SUB FOR TH108904)

1шт.

6

TH110021

O-Ring

(SUB FOR TH108905)

1шт.

7

AT165703

Seal

(BLUE) (SUB FOR TH108906 TAN SEAL)

5шт.

9

972658

Ball

(SUB FOR T38788)

20шт.

10

4176429

Ring

(SUB FOR TH108907)

1шт.

11

40M7065

Snap Ring

(SUB FOR TH103138)

1шт.

12

TH108908

Seal

1шт.

13

2021481

Cover

(SUB FOR TH108909)

1шт.

14

T110443

O-Ring

1шт.

15

19M7662

Cap Screw

M10 X 30

4шт.

16

12M7066

Lock Washer

10 mm

4шт.

20

19M8011

Cap Screw

M12 X 30

4шт.

21

12H301

Lock Washer

1/2"

4шт.

22

9097161EX

Manifold Reman

(REMANUFACTURED) (SUB FOR AT105530, AT182273)

1шт.
