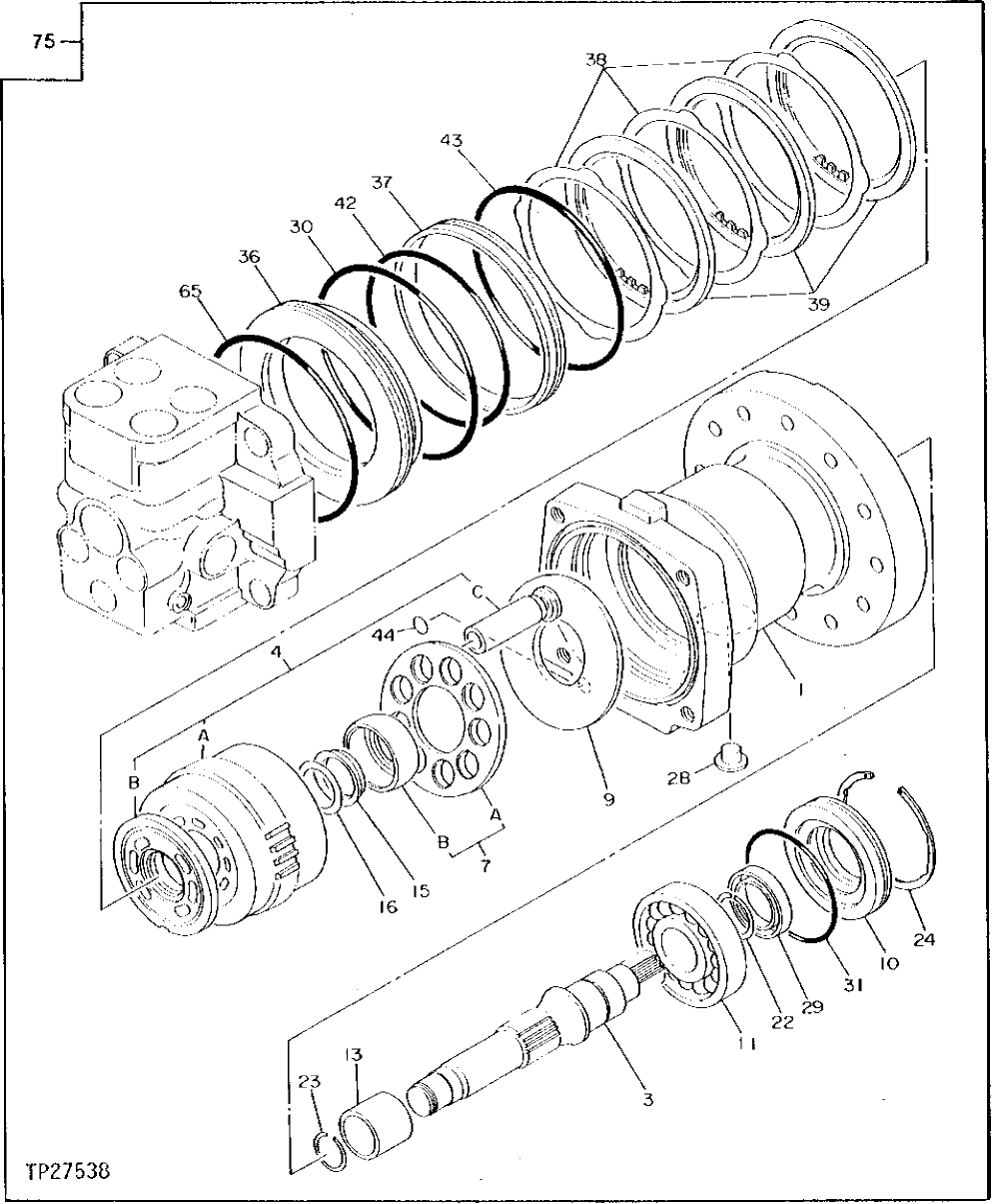

Запчасти John Deere 90D 176 - Swing Motor 4360 HYDRAULIC SYSTEM

1

Housing

SUB AT217308

1шт.

3

0356703

Shaft

SUB FOR AT130570

1шт.

4

0311304

Cylinder Block

SUB FOR TH109047

1шт.

4A

Cylinder Block

SUB TH109047

1шт.

4B

Plate

SUB TH109047

1шт.

4C

Piston

SUB TH109047

9шт.

7

0311305

Plate

SUB FOR TH109048

1шт.

7A

Plate

SUB TH109048

1шт.

7B

Holder

SUB TH109048

1шт.

9

0311306

Washer

SUB FOR TH109049

1шт.

10

0356704

Housing

SUB FOR AT130571

1шт.

11

JD9480

Ball Bearing

SUB FOR TH109051

1шт.

13

0311309

Bearing Race

SUB FOR TH109052

1шт.

15

0311311

Spring

SUB FOR TH109054

1шт.

16

0311312

Washer

SUB FOR TH109055

1шт.

22

40M7047

Snap Ring

SUB FOR TH108871

1шт.

23

0311316

Snap Ring

SUB FOR TH109059

1шт.

24

0329616

Snap Ring

SUB FOR TH110270

1шт.

28

Plug

SUB AT217308

1шт.

29

0251311

Seal

SUB FOR TH109063

1шт.

30

0409222

O-Ring

SUB FOR TH109064 OR 0311320

1шт.

31

CH17447

Packing

SUB FOR TH111724

1шт.

36

0311321

Piston

SUB FOR TH109065

1шт.

37

0311322

Bushing

SUB FOR TH109066

1шт.

38

0311323

Plate

SUB FOR TH109067

3шт.

39

0311324

Plate

SUB FOR TH109068

3шт.

42

0224924

O-Ring

SUB FOR TH105729

1шт.

43

0353321

O-Ring

SUB FOR TH109070 OR 4S00218, 0310017 NLA

1шт.

44

CH17167

O-Ring

1шт.

65

0425117

O-Ring

SUB FOR TH109085 OR 0311338

1шт.

75

Hydraulic Motor

SUB FOR AT130606, AT217308 NLA Remanufac tured Contains All Items On This Page For Additional Componenets, See Previous Pag e

1шт.
