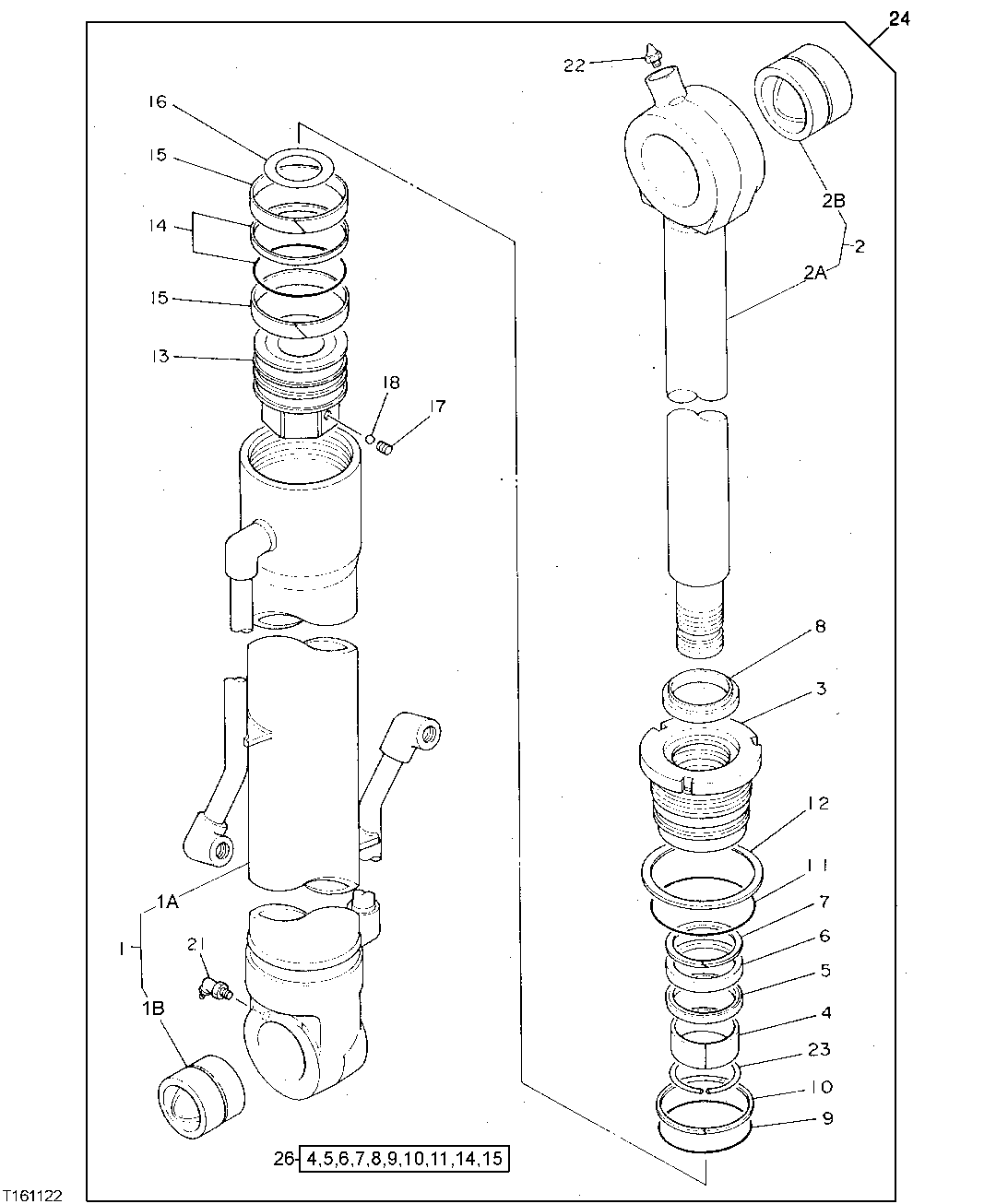

Запчасти John Deere 90D 172 - BUCKET CYLINDER 3365 HYDRAULIC CYLINDERS

1

4228535

Cylinder

SUB FOR AT130562 AND AT130782

1шт.

1A

Hydraulic Cylinder Barrel

SUB AT130782

1шт.

1B

0195708

Bushing

SUB FOR AT130533

1шт.

2

4228534

Piston

SUB FOR AT130563 AND AT130783)

1шт.

2A

Rod

SUB AT130783

1шт.

2B

4085458

Bushing

SUB FOR AT130597

1шт.

3

0333303

Hydr. Cylinder Rod Guide

SUB FOR AT130564

1шт.

4

Bushing

AT264404 NLA, SUB FOR 0331004 AND TH110296

1шт.

5

AT264380

Ring

SUB FOR TH105780 AND 0225714

1шт.

6

AT264378

Ring

SUB FOR TH105778 AND 0225711

1шт.

7

AT264379

Back-Up Ring

SUB FOR TH105779 AND 0225712

1шт.

8

AT264377

Ring

SUB FOR TH105777, 0225710 AND 0444715

1шт.

9

AT264234

O-Ring

SUB FOR AT130595 AND 4071223

1шт.

10

AT264236

Back-Up Ring

SUB FOR 4133852 AND AT130599

1шт.

11

AT264318

O-Ring

SUB FOR T110446 AND 0159408

1шт.

12

4043327

Lock Washer

SUB FOR AT130594

1шт.

13

0333006

Piston

SUB FOR AT130546

1шт.

14

AT264392

Ring

SUB FOR TH109376, 0310608 AND 4S00198

1шт.

15

AT264229

Ring

SUB FOR AT130547, 0495713 AND 0333007

2шт.

16

0333008

Shim

SUB FOR AT130548

1шт.

17

22M7139

Set Screw

M10 X 10

1шт.

18

400R

Ball

SUB FOR TH109381

1шт.

21

T116334

Lubrication Fitting

SUB FOR TH100075

1шт.

22

TH100074

Lubrication Fitting

1шт.

23

0225704

Snap Ring

SUB FOR TH105772

1шт.

24

Cylinder

AT130514 AND AT182454 NLA, ORDER 4194438

1шт.

25

Seal

NOT INCLUDED IN CYLINDER ASSEMBLY - FOR DETAIL SEE ARM AND BOOM HYDRA ULIC LINES Rod End Not Illustrated

2шт.

26

4369721

Seal Kit

SUB FOR AT130602, AT264426 OR 4216516

1шт.
