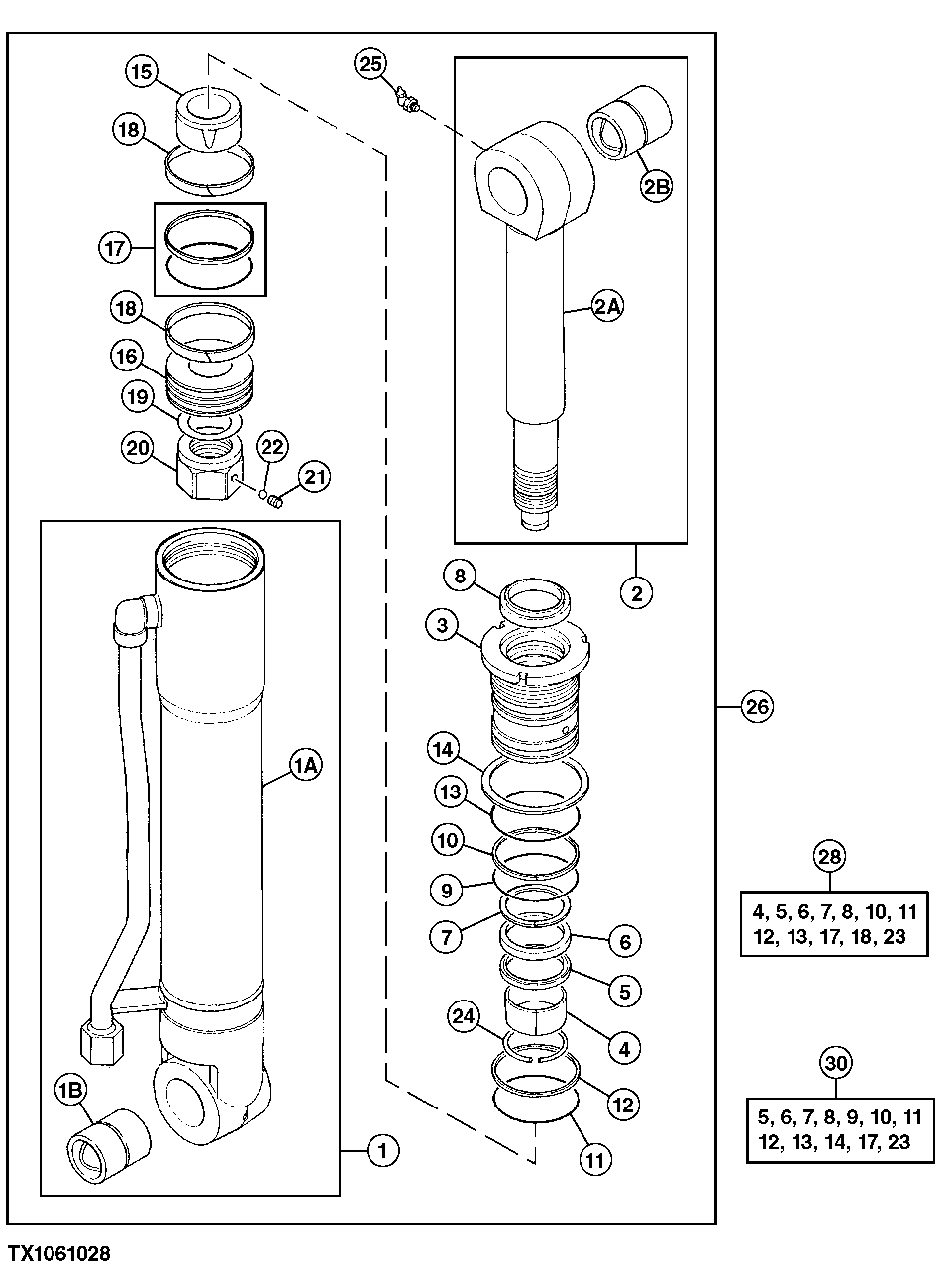

Запчасти John Deere 90D 171 - ARM CYLINDER 3365 HYDRAULIC CYLINDERS

1

4228537

Cylinder

(SUB FOR AT130553 ) (SUB FOR AT130781)

1шт.

1A

Hydraulic Cylinder Barrel

(SUB AT130781)

1шт.

1B

0195603

Bushing

(SUB FOR AT130532)

1шт.

2

4228536

Piston

(SUB FOR AT130554 ) (SUB FOR AT130784)

1шт.

2A

Rod

(SUB AT130784)

1шт.

2B

0195603

Bushing

(SUB FOR AT130532)

1шт.

3

0333203

Hydr. Cylinder Rod Guide

(SUB FOR AT130555)

1шт.

4

AT264230

Bushing

(K) (SUB FOR AT130556, 0333204)

1шт.

5

AT264258

Sealing Ring

(K) (SUB FOR AT133635, 4S00194)

1шт.

6

AT264256

Packing

(K) (SUB FOR 0271309, AT133633)

1шт.

7

AT264257

Back-Up Ring

(K) (SUB FOR 0271310, AT133634)

1шт.

8

H158453

Scraper Ring

(K) (SUB FOR AT133632)

1шт.

9

T77814

O-Ring

(SUB FOR AT121661 AND T19963)

1шт.

10

AT264231

Back-Up Ring

(K) (SUB FOR AT130557, 0333205)

1шт.

11

AT264418

O-Ring

(K) (SUB FOR 4367664, U46155)

1шт.

12

AT264232

Washer

(K) (SUB FOR AT130558, 0333206)

2шт.

13

AT264235

O-Ring

(K) (SUB FOR AT130598, 4103701)

1шт.

14

0143206

Lock Washer

(SUB FOR AT130530)

1шт.

15

0333207

Sleeve

(SUB FOR AT130559)

1шт.

16

0333208

Piston

(SUB FOR AT130560)

1шт.

17

AT264387

Ring

(K) (SUB FOR TH109322)

1шт.

18

AT264233

Ring

(K) (SUB FOR 0333209, AT130561)

2шт.

19

TH109328

Shim

(SUB FOR 0310514)

1шт.

20

0310511

Nut

(SUB FOR TH109325)

1шт.

21

22M6684

Set Screw

M12 X 12

1шт.

22

T13624

Ball

1шт.

23

AT264222

O-Ring

(K)

1шт.

24

0271304

Snap Ring

(SUB FOR AT133631)

1шт.

25

T116334

Lubrication Fitting

(SUB FOR TH100075)

1шт.

26

Cylinder

( AT264183 AND AT130515 NLA) (SUB 4194437)

1шт.

27

Seal

(ROD END) (NOT ILLUSTRATED OR INCLU DED IN CYLINDER ASSEMBLY - FOR DETAI L SEE ARM AND BOOM HYDRAULIC LINES)

2шт.

28

AT264425

Seal Kit

(INCLUDES ALL (K) PARTS)

1шт.

30

4369769

Seal Kit

(SUB FOR AT130601)

1шт.
