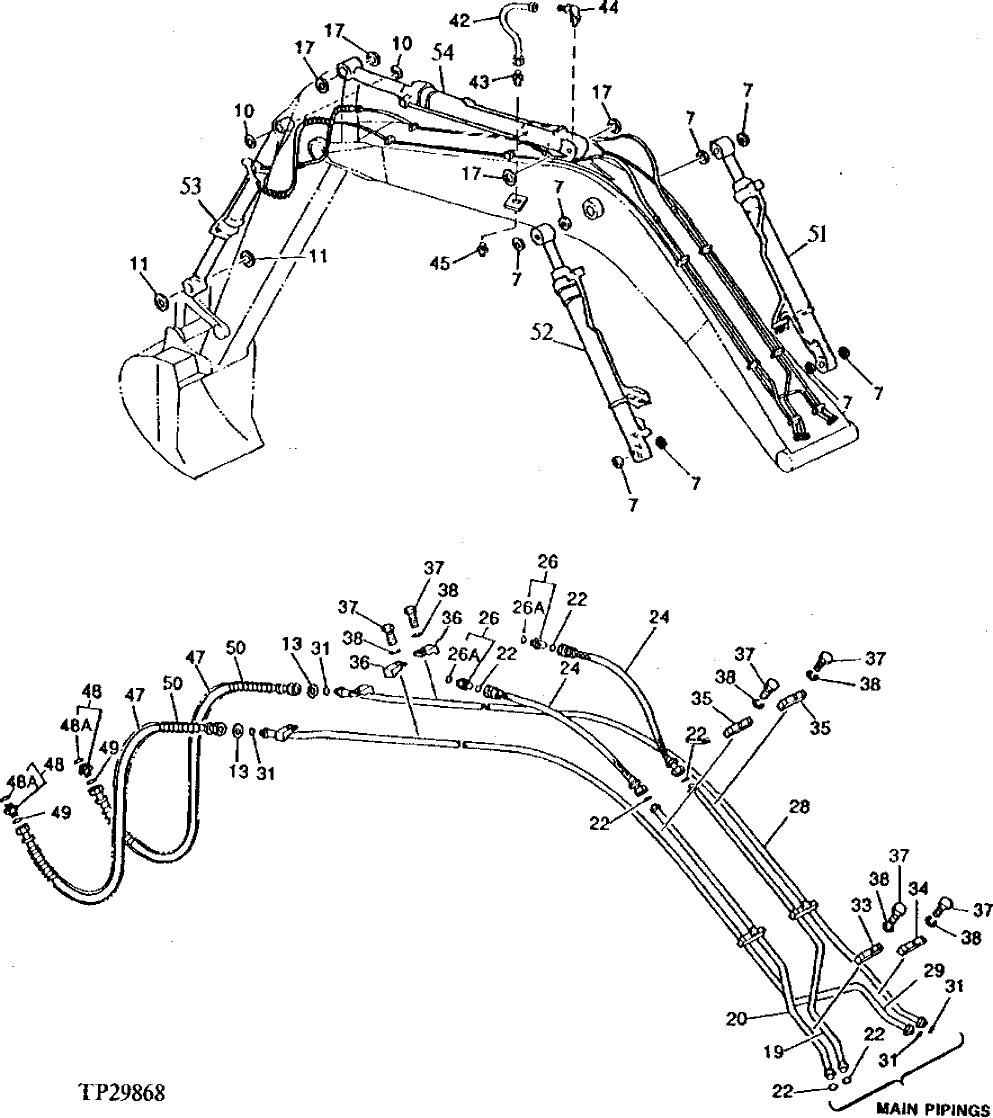

Запчасти John Deere 90D 165 - ARM AND BOOM HYDRAULIC LINES 3360 HYDRAULIC SYSTEM

7

TH100374

Seal

8шт.

10

4082194

Seal

(SUB FOR AT120759)

2шт.

11

4082193

Seal

(SUB FOR AT130367)

2шт.

13

4073051

Washer

(SUB FOR TH105953)

2шт.

17

4082194

Seal

(SUB FOR AT120759)

4шт.

19

8038066

Oil Line

(SUB FOR AT130483)

1шт.

20

8038065

Oil Line

(SUB FOR AT130482)

1шт.

22

T77858

O-Ring

(SUB FOR TH108349)

6шт.

24

4197797

Hydraulic Hose

30.1752" X 700 mm (27-1/2") X 30.1752" (SUB FOR AT130398)

2шт.

26

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

28

8038067

Oil Line

(SUB FOR AT130484)

1шт.

29

8038068

Oil Line

(SUB FOR AT130485)

1шт.

31

T77857

O-Ring

(SUB FOR TH108323)

4шт.

33

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

1шт.

34

4189858

Clamp

(SUB FOR TH108333)

1шт.

35

4141806

Clamp

(SUB FOR TH100968)

2шт.

36

4190125

Clamp

(SUB FOR TH108960)

4шт.

37

19M7361

Cap Screw

M12 X 50

8шт.

38

12H301

Lock Washer

1/2"

8шт.

42

AT132513

Hydraulic Hose

1шт.

43

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

1шт.

44

4154656

Elbow Fitting

(SUB FOR TH101588)

1шт.

45

TH100074

Lubrication Fitting

1шт.

47

AT130397

Hydraulic Hose

13/16" X 1100 mm (43-1/4") X 13/16"

2шт.

48

4189602

Fitting

(SUB FOR TH108350)

2шт.

48A

4506418

O-Ring

(SUB FOR U46489)

1шт.

49

T77857

O-Ring

(SUB FOR TH108323)

2шт.

50

Hose Guard

2шт.

51

4194435

Hydraulic Cylinder

RH (SUB FOR AT130512 ( AT264203 NLA))

1шт.

52

4194436

Hydraulic Cylinder

LH (SUB FOR AT130513 ( AT264203 NLA))

1шт.

53

4194438

Cylinder

(BUCKET) ( AT182454 NLA)

1шт.

54

4194437

Cylinder

(SUB FOR AT130515)(ARM) ( AT264183 NLA)

1шт.
