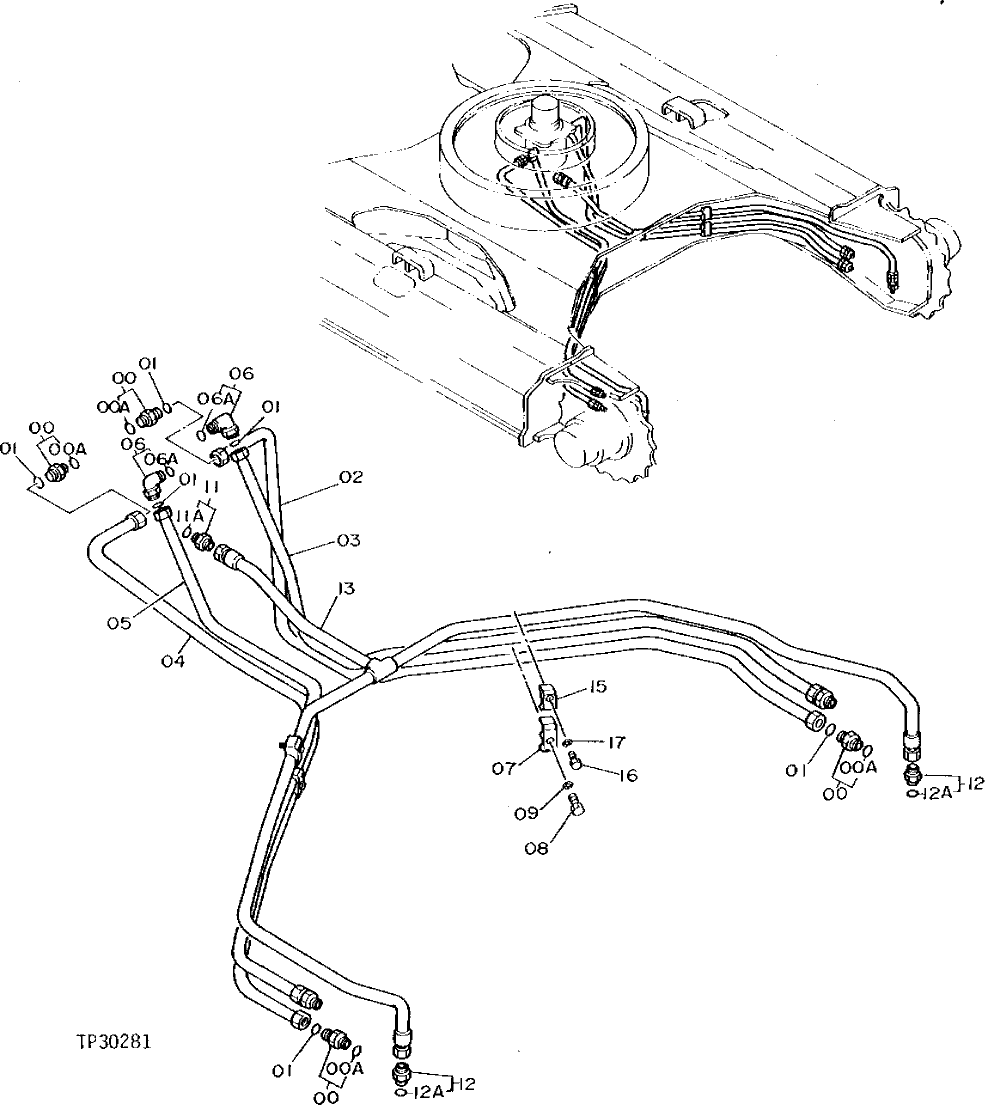

Запчасти John Deere 90D 164 - PROPEL LINES 3360 HYDRAULIC SYSTEM

0

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

6шт.

0A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

1

T77858

O-Ring

(SUB FOR TH108349)

8шт.

2

7018803

Oil Line

(SUB FOR AT130473)

1шт.

3

7018804

Oil Line

(SUB FOR AT130474)

1шт.

4

7018805

Oil Line

(SUB FOR AT130475)

1шт.

5

7018806

Oil Line

(SUB FOR AT130476)

1шт.

6

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

6A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

7

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

2шт.

8

19M7496

Cap Screw

M12 X 45 (SUB FOR AT122612)

2шт.

9

12H301

Lock Washer

1/2"

2шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11A

CH11570

O-Ring

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

12A

CH11570

O-Ring

1шт.

13

7017859

Oil Line

(SUB FOR AT130471)

1шт.

15

4190124

Clamp

(SUB FOR TH108727)

2шт.

16

19M7493

Cap Screw

M12 X 40

2шт.

17

12H301

Lock Washer

1/2"

2шт.
