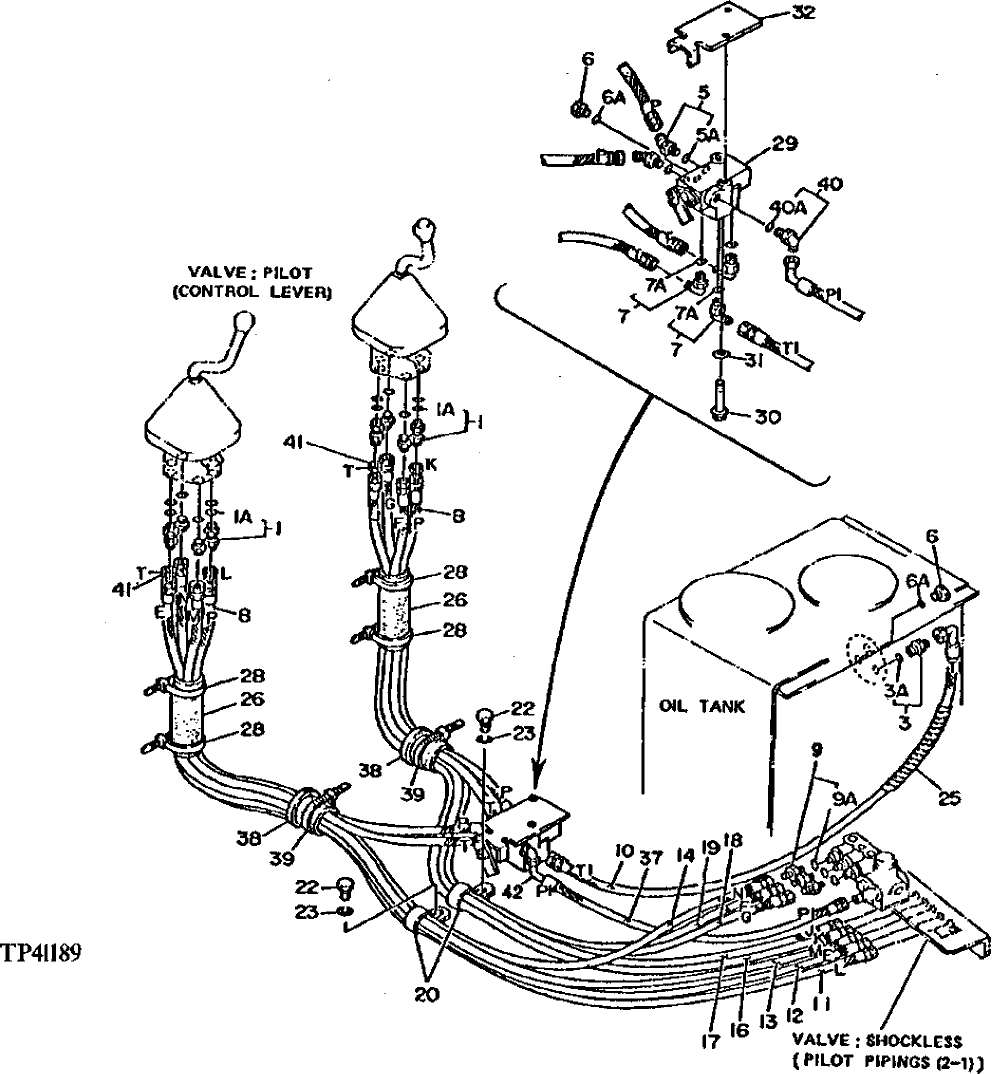

Запчасти John Deere 90D 163 - PILOT CONTROL LINES 3360 HYDRAULIC SYSTEM

1

4200467

Adapter Fitting

(SUB FOR TH108417)

12шт.

1A

M800650

Packing

1шт.

3

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

3A

CH11570

O-Ring

1шт.

5

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

5A

CH11570

O-Ring

1шт.

6

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)(SUB FOR 4217653, ALONG WITH CH11570)

2шт.

6A

CH11570

O-Ring

(USE WITH TH109285, 0309805 OR 15M7036)

2шт.

7

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

3шт.

7A

CH11570

O-Ring

1шт.

8

AT48422

Hydraulic Hose

9/16" X 1422 mm (56") X 9/ 16" (P) (SUB FOR AT130708)

2шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

9A

CH11570

O-Ring

1шт.

10

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/ 16" (T1) (SUB FOR AT130688)

1шт.

11

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (L) (SUB FOR AT130680)

1шт.

12

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (E) (SUB FOR AT130681)

1шт.

13

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (M) (SUB FOR AT130682)

1шт.

14

AT130683

Hydraulic Hose

9/16" X 2349 mm (92-1/2") X 9/16" (N)

1шт.

16

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (K)

1шт.

17

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (J) (SUB FOR AT130685)

1шт.

18

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16" (G) (SUB FOR AT130686)

1шт.

19

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16"

1шт.

20

AT121321

Hose Clamp

2шт.

22

19M8231

Cap Screw

M12 X 16 (SUB FOR TH100522)

2шт.

23

12H301

Lock Washer

1/2"

2шт.

25

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LEN GTH) (SUB FOR TH100996, AT138222 OR 3052919)

1шт.

26

4219918

Isolator

(SUB FOR TH111416)

2шт.

28

H77698

Tie Band

(SUB FOR TH106422)

4шт.

29

4179025

Flow Control Hyd. Valve

(SUB FOR TH108432)

1шт.

30

19M7329

Cap Screw

M10 X 75 (SUB FOR TH101999)

4шт.

31

12M7066

Lock Washer

10 mm

4шт.

32

4218688

Stop

(SUB FOR TH110769)

1шт.

37

AH108250

Hose

9/16" X 787 mm (31") X 9/16" (P1) ( SUB FOR AT130704, ALONG WITH AE24616)

1шт.

38

4100635

Bushing

(SUB FOR AT130371)

2шт.

39

H77698

Tie Band

(SUB FOR TH106422)

2шт.

40

4200471

Elbow Fitting

(SUB FOR TH108399)

1шт.

40A

4506418

O-Ring

(SUB FOR U46489)

1шт.

41

AT48422

Hydraulic Hose

9/16" X 1422 mm (56") X 9/ 16" (T) (SUB FOR AT130707)

2шт.

42

AE24616

Elbow Fitting

1шт.
