Запчасти John Deere 90D 162 - PILOT CONTROL LINES 3360 HYDRAULIC SYSTEM

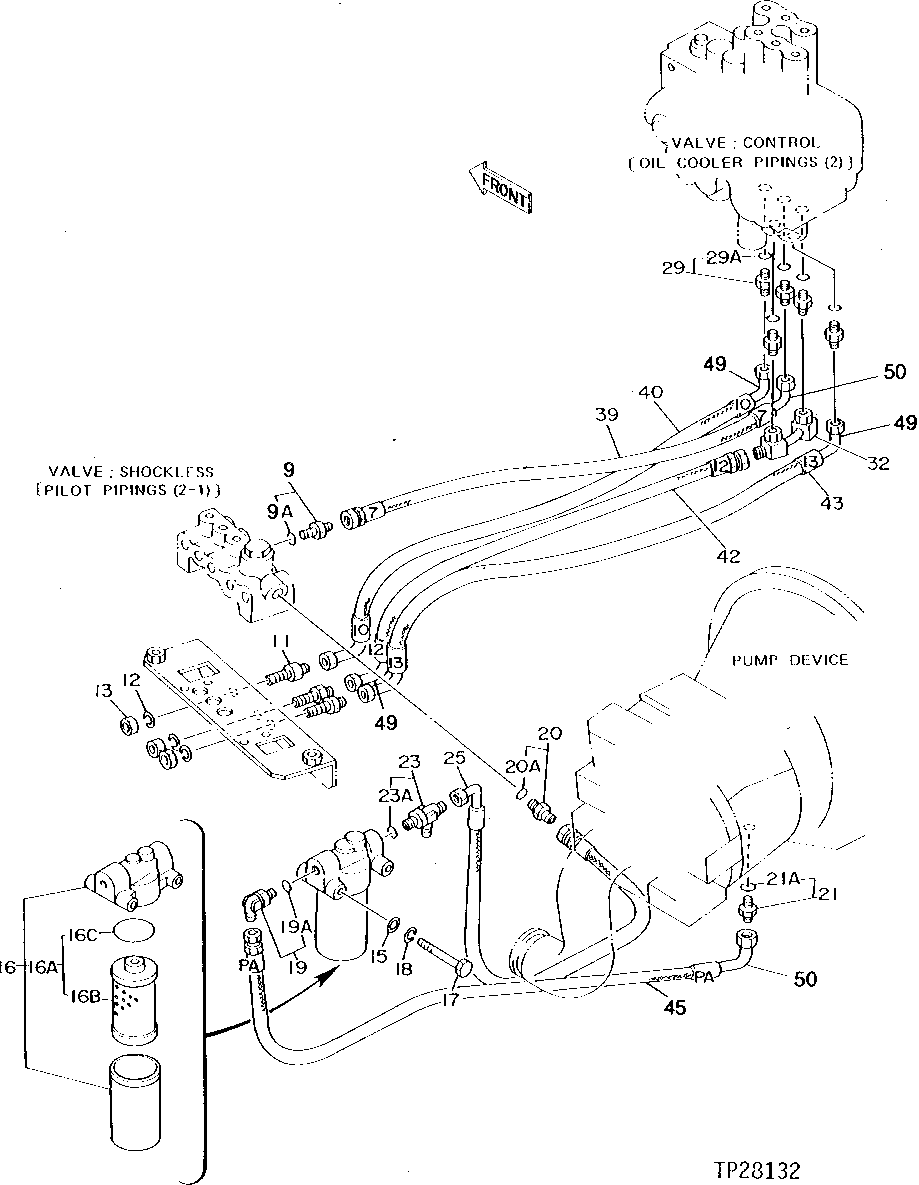

Схема запчастей John Deere 90D - 162 - PILOT CONTROL LINES 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

9

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

9A

CH11570

O-Ring

1шт.

11

R27238

Fitting

3шт.

12

12H294

Lock Washer

5/8"

3шт.

13

14H888

Nut

9/16" (SUB FOR TH108439)

3шт.

15

4114405

Washer

(SUB FOR TH101105)

2шт.

16

4631976

Oil Filter

(SUB FOR TH108402, 4191300)

1шт.

16A

AT186554

Filter Element

(SUB FOR TH108403 OR AT147821)

1шт.

16B

Filter Element

(SUB AT147821 OR AT186554)

1шт.

16C

AT264334

O-Ring

(SUB FOR TH100101)(USE WIT H TH108403 FILTER ELEMENT)

1шт.

CH17154

Packing

(USE WITH AT147821 FILTER ELEMENT)

1шт.

17

19M8761

Screw

M10 X 22 (SUB FOR TH102993)

2шт.

18

12M7066

Lock Washer

10 mm

2шт.

19

4200471

Elbow Fitting

(SUB FOR TH108399)

1шт.

19A

4506418

O-Ring

(SUB FOR U46489)

1шт.

20

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

20A

4506418

O-Ring

(SUB FOR U46489)

1шт.

21

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

21A

CH11570

O-Ring

1шт.

23

4217345

Tee Fitting

(SUB FOR AT126685)

1шт.

23A

4506418

O-Ring

(SUB FOR U46489)

1шт.

25

AT68572

Hydraulic Hose

9/16" X 837 mm (33") X 9/16" (SUB FOR AT130689)

1шт.

29

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

29A

CH11570

O-Ring

1шт.

32

8040069

Oil Line

(SUB FOR TH110933)

1шт.

39

AR86055

Hydraulic Hose

9/16" X 622 mm (24-1/2") X 9/16" (7) (SUB FOR AT130424, ALONG WITH AE24616)

1шт.

40

AR85229

Hose

9/16" X 524 mm (20-3/4") X 9/16" (10) (SUB FOR AT130425, ALONG WITH AU43156)

1шт.

42

AT67065

Hydraulic Hose

9/16" X 508 mm (20") X 9/16" (12) ( SUB FOR AT130427, ALONG WITH AU43156)

1шт.

43

AR85229

Hose

9/16" X 524 mm (20-3/4") X 9/16" (13) (SUB FOR AT130428, ALONG WITH AU43156)

1шт.

45

AH108250

Hose

9/16" X 787 mm (31") X 9/16" (SUB FOR AT130709, ALONG WITH AE24616)

1шт.

49

AU43156

Elbow Fitting

3шт.

50

AE24616

Elbow Fitting

2шт.

Выбрано товаров: 32
