Запчасти John Deere 90D 161 - PILOT CONTROL LINES 3360 HYDRAULIC SYSTEM

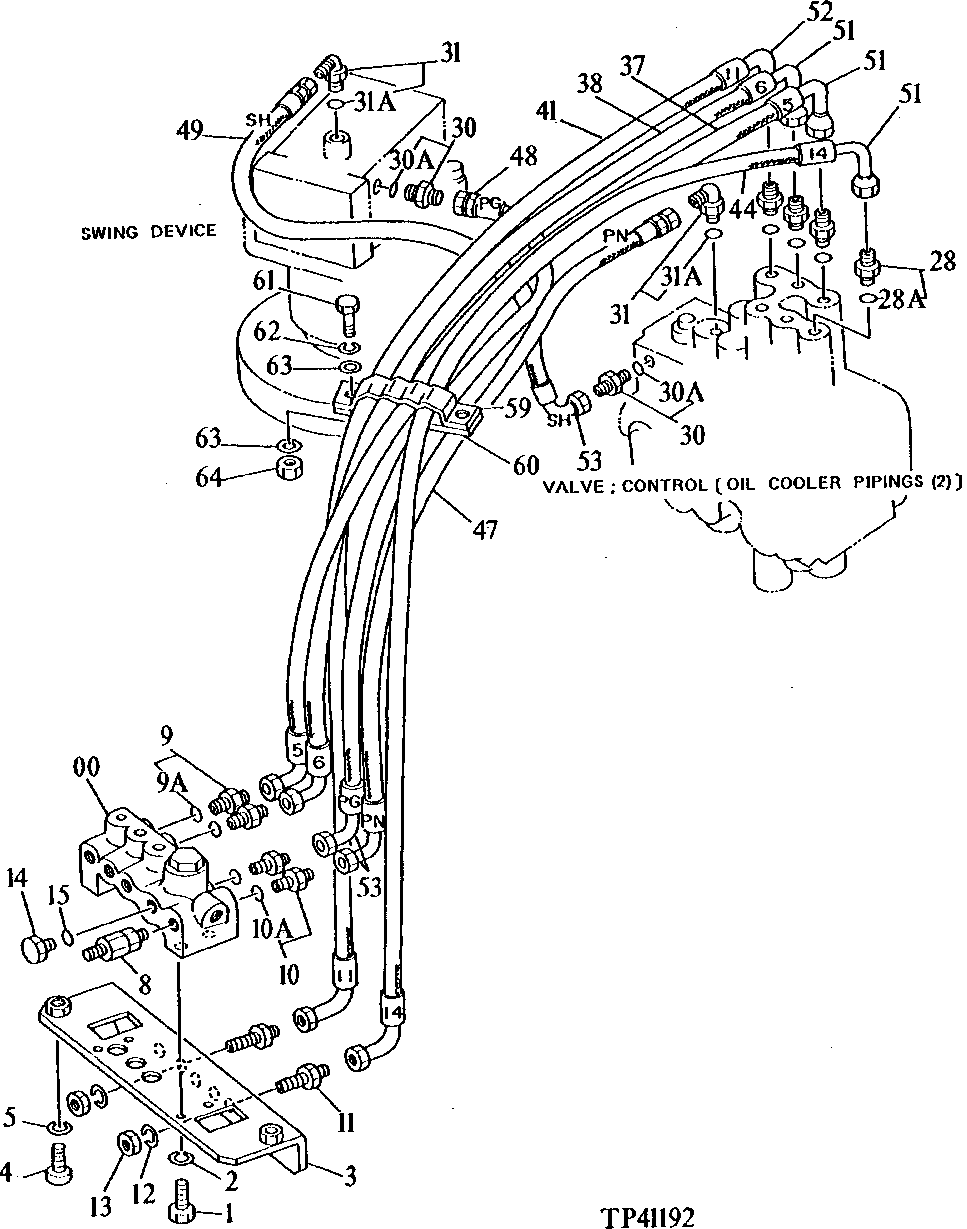

Схема запчастей John Deere 90D - 161 - PILOT CONTROL LINES 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4197817

Flow Control Hyd. Valve

(SUB FOR TH110551)

1шт.

1

19M7881

Screw

M8 X 20

4шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

3

8039763

Bracket

(SUB FOR AT130488)

1шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

5

12H301

Lock Washer

1/2"

2шт.

8

Filter

( 4188687 NLA) (SUB FOR TH108433)

1шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

9A

CH11570

O-Ring

1шт.

10

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

10A

M800650

Packing

1шт.

11

R27238

Fitting

2шт.

12

12H294

Lock Washer

5/8"

2шт.

13

14H888

Nut

9/16" (SUB FOR TH108439)

2шт.

14

15M7036

Drain Plug

(SUB FOR 4217653, TH109285 OR 0309805 ) (ALSO ORDER CH11570)

1шт.

15

CH11570

O-Ring

(USE WITH 4217653, TH109 285, 0309805 OR 15M7036)

1шт.

28

4202422

Adapter Fitting

(SUB FOR TH108440)

4шт.

28A

CH11570

O-Ring

1шт.

30

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

30A

M800650

Packing

1шт.

31

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

31A

M800650

Packing

1шт.

37

AE24616

Elbow Fitting

(5) (USE IF AVAILABLE) (SUB FOR AT130422)

1шт.

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16" (SUB FOR AT130422 ALONG WITH AE24616) Fabricate

1шт.

38

AE24616

Elbow Fitting

(6) (USE IF AVAILABLE) (SUB FOR AT130423)

1шт.

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16" (SUB FOR AT130423 ALONG WITH AE24616)

1шт.

41

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16" (11) ( USE IF AVAILABLE) (SUB FOR AT130426)

1шт.

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16" (SUB FOR AT130426 ALONG WITH AU43156) Fabricate

1шт.

44

AE24616

Elbow Fitting

(14) (USE IF AVAILABLE) (SUB FOR AT130429)

1шт.

AT50269

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16" (SUB FOR AT130429 ALONG WITH AE24616) Fabricate

1шт.

47

AE42282

Hydraulic Hose

11.1252" X 899 mm (35-1/2") X 11.1252" (PA) (SUB FOR 4213848 , ALONG WITH AH89069) Fabricate

1шт.

48

AH96002

Hydraulic Hose

11.1252" X 1117 mm (44") X 11.1252" (PG) (S UB FOR 4213849, ALONG WITH AH89069) Fabricate

1шт.

49

AH89069

Elbow Fitting

(SH) (USE IF AVAILABLE) (SUB FO R 4213850 ) (ALSO ORDER AH89069)

1шт.

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252" ( SUB FOR AT130432 ALONG WITH AH89069)

1шт.

51

AE24616

Elbow Fitting

3шт.

52

AU43156

Elbow Fitting

1шт.

53

AH89069

Elbow Fitting

3шт.

59

9727638

Hose Clamp

(SUB FOR AT130505)

1шт.

60

9727636

Plate

(SUB FOR AT130504)

1шт.

61

19M7550

Cap Screw

M10 X 35

2шт.

62

12M7066

Lock Washer

10 mm

2шт.

63

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

64

14M7274

Nut

M10

2шт.

Выбрано товаров: 43
