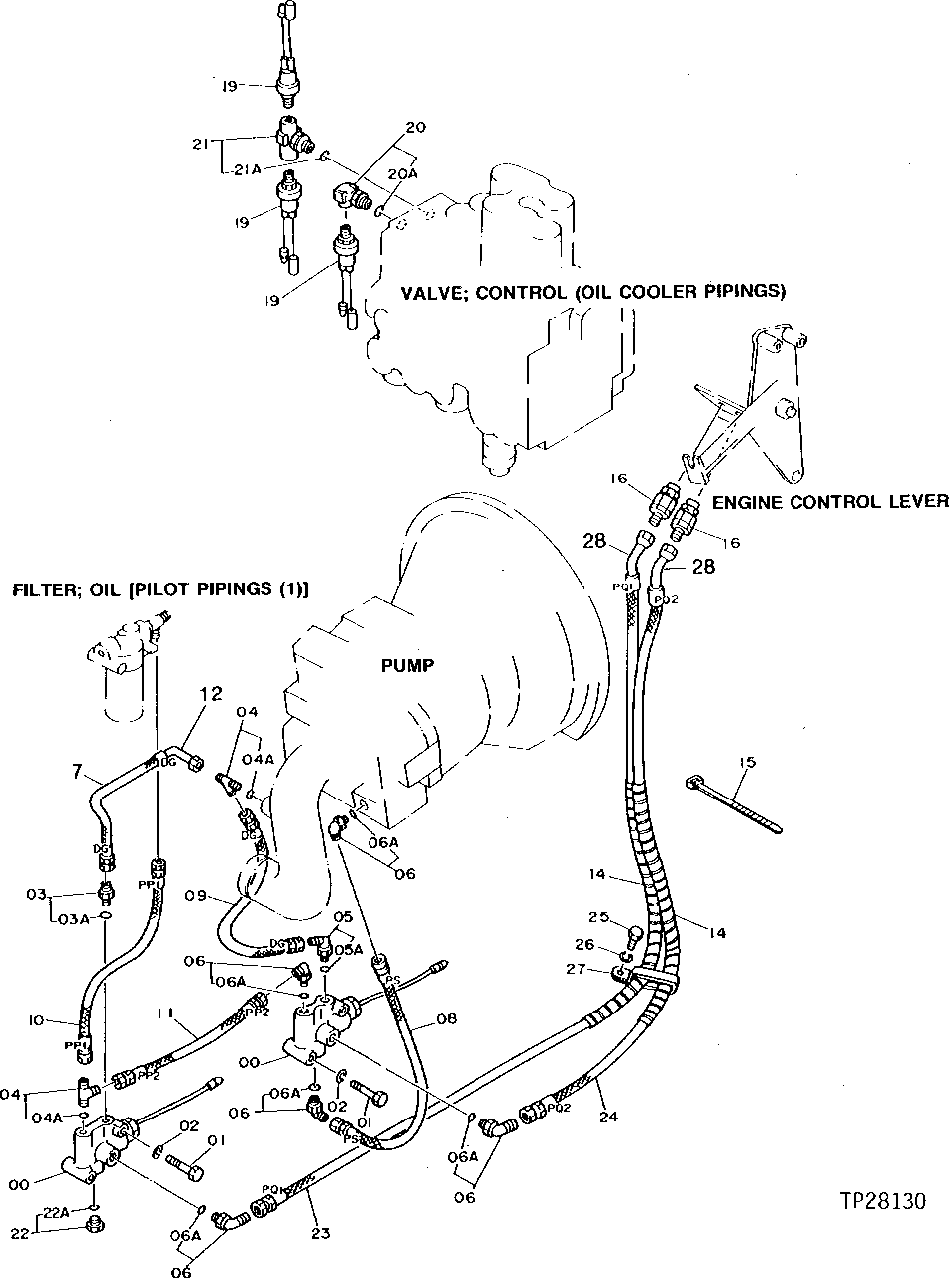

Запчасти John Deere 90D 160 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

0

4210647

Solenoid Valve

(SUB FOR TH110603)

2шт.

1

19M8402

Cap Screw

M8 X 65

4шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

3

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

3A

M800650

Packing

1шт.

4

4203171

Tee Fitting

(SUB FOR TH110578)

2шт.

4A

M800650

Packing

1шт.

5

4193826

Elbow Fitting

(SUB FOR TH106467)

1шт.

5A

M800650

Packing

1шт.

6

4154670

Elbow Fitting

(SUB FOR TH100951)

5шт.

6A

M800650

Packing

1шт.

7

AH89069

Elbow Fitting

DG (USE IF AVAILABLE) (SUB FOR AT130710)

1шт.

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252" (SUB F OR AT130710 ALONG WITH AH89069) Fabricate

1шт.

8

AT126482

Hydraulic Hose

11.1252" X 500 mm (19-3/4") X 11.12 52" PS (SUB FOR AT130692) Fabricate

1шт.

9

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252 " DG (SUB FOR AT130693) Fabricate

1шт.

10

TH108352

Hydraulic Hose

PP1 (SUB FOR AT130690)

1шт.

11

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252 " PP2 (SUB FOR AT130691) Fabricate

1шт.

12

AH89069

Elbow Fitting

1шт.

14

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LEN GTH) (SUB FOR TH100996, AT138222 OR 3052919)

2шт.

15

H77698

Tie Band

(SUB FOR TH106422)

1шт.

16

4187914

Cylinder

(SUB FOR TH108409)(ECONOMY MODE A DAPTER AND AUTO IDLE MODE ADAPTER)

2шт.

19

4259333

Pressure Switch

(SUB FOR TH108413)(PROP EL, AUTO IDLE, AND DIG)

3шт.

20

4222750

Elbow Fitting

(SUB FOR TH110783)

1шт.

20A

M800650

Packing

1шт.

21

4247930

Tee Fitting

(SUB FOR AT130702)

1шт.

21A

M800650

Packing

1шт.

22

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH103949 ) (SUB FOR TH102536)

1шт.

22A

M800650

Packing

1шт.

23

AT130705

Hydraulic Hose

11.1252" X 1199 mm (47-1/4") X 11.1252" PQ1 (USE IF AVAILABLE)

1шт.

AE42280

Hydraulic Hose

11.1252" X 1199 mm (47-1/4") X 11.1252" (SUB FOR AT130705 ALONG WITH AT128355) Fabricate

1шт.

24

AT130706

Hydraulic Hose

11.1252" X 950 mm (37-1/2") X 11.1252" PQ2 (USE IF AVAILABLE)

1шт.

AH96002

Hydraulic Hose

11.1252" X 1117 mm (44") X 11.1252" (SUB F OR AT130706 ALONG WITH AT128355) Fabricate

1шт.

25

19M7872

Cap Screw

M12 X 25

1шт.

26

12H301

Lock Washer

1/2"

1шт.

27

4190266

Clip

(SUB FOR TH108793)

1шт.

28

X4V6X-S

Elbow Fitting

(SUB FOR AT128355 OR X3703-4-4)

2шт.
