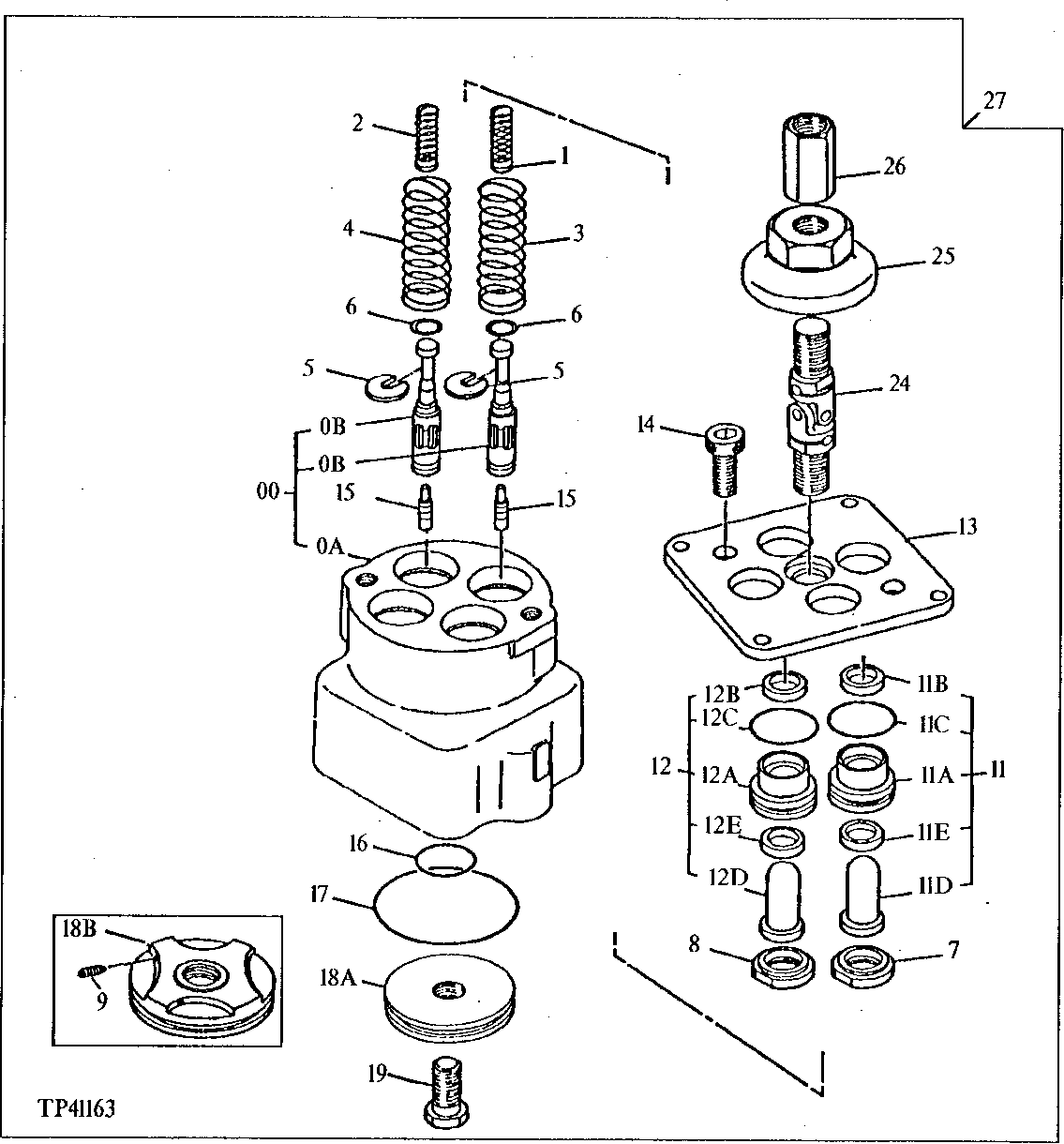

Запчасти John Deere 90D 156 - Pilot Valve (Valve Serial Number -128882) 3360 HYDRAULIC SYSTEM

0

Valve

(USE AT131277 IF AVAIL ABLE) (ORDER AT189840)

1шт.

0A

Case

1шт.

0B

Spool

4шт.

1

4201915

Spring

(SUB FOR TH109212)

2шт.

2

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

3

4210793

Compression Spring

(SUB FOR AT134060)(PORTS 1 AND 3)

2шт.

4

4210794

Compression Spring

(SUB FOR AT134061)

2шт.

5

4177777

Spacer

(SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)

20шт.

7

4179257

Guide

(SUB FOR TH109219)(1, 3 PORT)

2шт.

8

4177896

Guide

(SUB FOR TH109218)(2, 4 PORT)

2шт.

9

Orifice

(SUB AT131276)( AT1312 42 NO LONGER AVAILABLE)

2шт.

11

Plunger

(SUB (2) 9104359, (2) 9104360 AND 4284175)(P ORTS 1 AND 3) ( 9089809 NO LONGER AVAILABLE)

2шт.

11A

Bushing

1шт.

11B

4240150

Seal

(SUB FOR TH111960)

1шт.

11C

U46166

O-Ring

1шт.

11D

Push Rod

1шт.

11E

4240151

Seal

(SUB FOR TH109224)

1шт.

12

Plunger

(SUB (2) 9104359, (2) 9104360 AND 4284175)(P ORTS 2 AND 4) ( 9089808 NO LONGER AVAILABLE)

2шт.

12A

Bushing

1шт.

12B

4240150

Seal

(SUB FOR TH111960)

1шт.

12C

U46166

O-Ring

1шт.

12D

Push Rod

1шт.

12E

4240151

Seal

(SUB FOR TH109224)

1шт.

13

Plate

( 4184930 NO LONGER AVAILABLE) (SUB 428417 5, ALONG WITH (2) 9104359 AND (2) 9104360)

1шт.

14

19M8440

Screw

M10 X 25 (PORTS 2 AND 4)

2шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

16

CH11562

O-Ring

1шт.

17

CH11571

Packing

1шт.

18A

4284024

Plate

(SUB FOR AT131276)

1шт.

18B

Plate

(SUB AT131276)( AT1312 41 NO LONGER AVAILABLE)

1шт.

19

19M8168

Screw

M12 X 25

1шт.

24

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

25

4184931

Cam

(SUB FOR TH109231)

1шт.

26

4182067

Jointer

(SUB FOR TH109232)

1шт.

27

AT131277

Valve

NLA, (ORDER AT189840)

1шт.

AT189840

Hyd/Pilot Cntl Valve Reman

( AT130916 NO LONGER AVAILABLE) (USE AT131277 IF AVAILABLE) (SUB FOR TH111710) (REMAN FOR AT131277 )

1шт.
