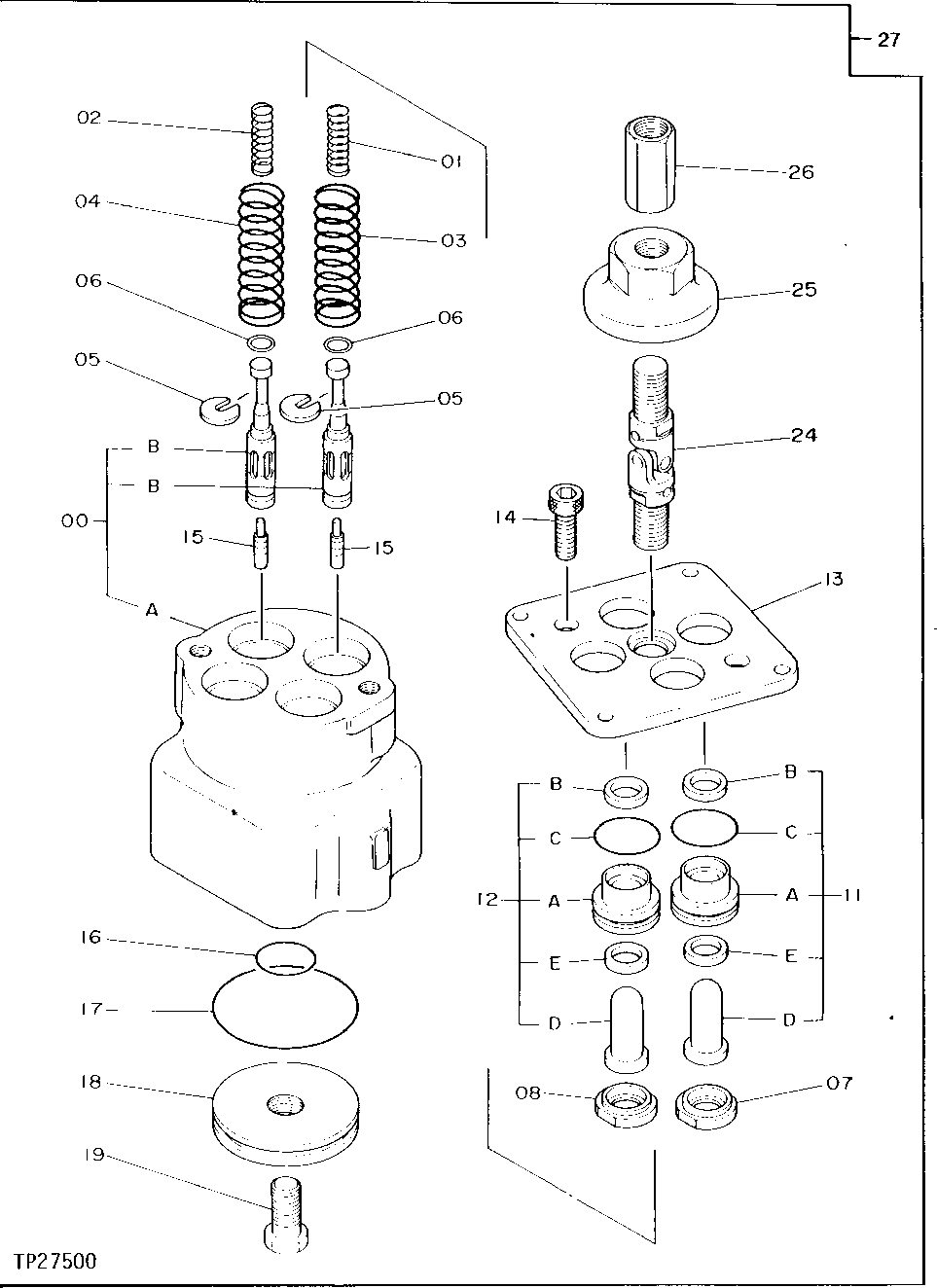

Запчасти John Deere 90D 155 - Pilot Control Valve (Valve Serial Number -128882) 3360 HYDRAULIC SYSTEM

0

Valve

( TH109211 NO LONGER AVAILABLE) (USE A T131277 IF AVAILABLE) (ORDER AT189840)

1шт.

0A

Housing

(NOT AVAILABLE FOR SERVICE)

1шт.

0B

Spool

(NOT AVAILABLE FOR SERVICE)

1шт.

1

4201915

Spring

(SUB FOR TH109212)

2шт.

2

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

3

4195421

Compression Spring

(SUB FOR TH109214)

2шт.

4

4186544

Compression Spring

(SUB FOR TH109215)

2шт.

5

4177777

Spacer

(SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)0.1 MM

20шт.

7

4179257

Guide

(SUB FOR TH109219)(PORTS 1 AND 3)

2шт.

8

4177896

Guide

(SUB FOR TH109218)(PORTS 2 AND 4)

2шт.

11

Plunger

(SUB (2) 9104359, (2) 9104360 AND 4 284175)(CONNECTED TO PORTS ONE AND T HREE) ( 9089809 NO LONGER AVAILABLE)

2шт.

11A

Bushing

1шт.

11B

4240150

Seal

(SUB FOR TH111960)

1шт.

11C

U46166

O-Ring

1шт.

11D

Push Rod

1шт.

11E

4240151

Seal

(SUB FOR TH109224)

1шт.

12

Plunger

(SUB (2) 9104360, (2) 9104359 AND 4 284175)(CONNECTED TO PORTS TWO AND F OUR) ( 9089808 NO LONGER AVAILABLE)

2шт.

12A

Bushing

1шт.

12B

4240150

Seal

(SUB FOR TH111960)

1шт.

12C

U46166

O-Ring

1шт.

12D

Push Rod

1шт.

12E

4240151

Seal

(SUB FOR TH109224)

1шт.

13

Plate

( 4184930 NO LONGER AVAILABLE) (SUB 42841 75 ALONG WITH (2) 9104359 AND (2) 9104360)

1шт.

14

19M8440

Screw

M10 X 25

2шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

16

CH11562

O-Ring

1шт.

17

CH11571

Packing

1шт.

18

4184954

Plate

(SUB FOR TH109229)

1шт.

19

19M8168

Screw

M12 X 25

1шт.

24

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

25

4184931

Cam

(SUB FOR TH109231)

1шт.

26

4182067

Jointer

(SUB FOR TH109232)

1шт.

27

AT131277

Valve

NLA, (ORDER AT189840)

1шт.

AT189840

Hyd/Pilot Cntl Valve Reman

(USE AT131277 IF AVAILABLE) ( TH111710 N O LONGER AVAILABLE) (REMAN FOR AT131277)

1шт.
