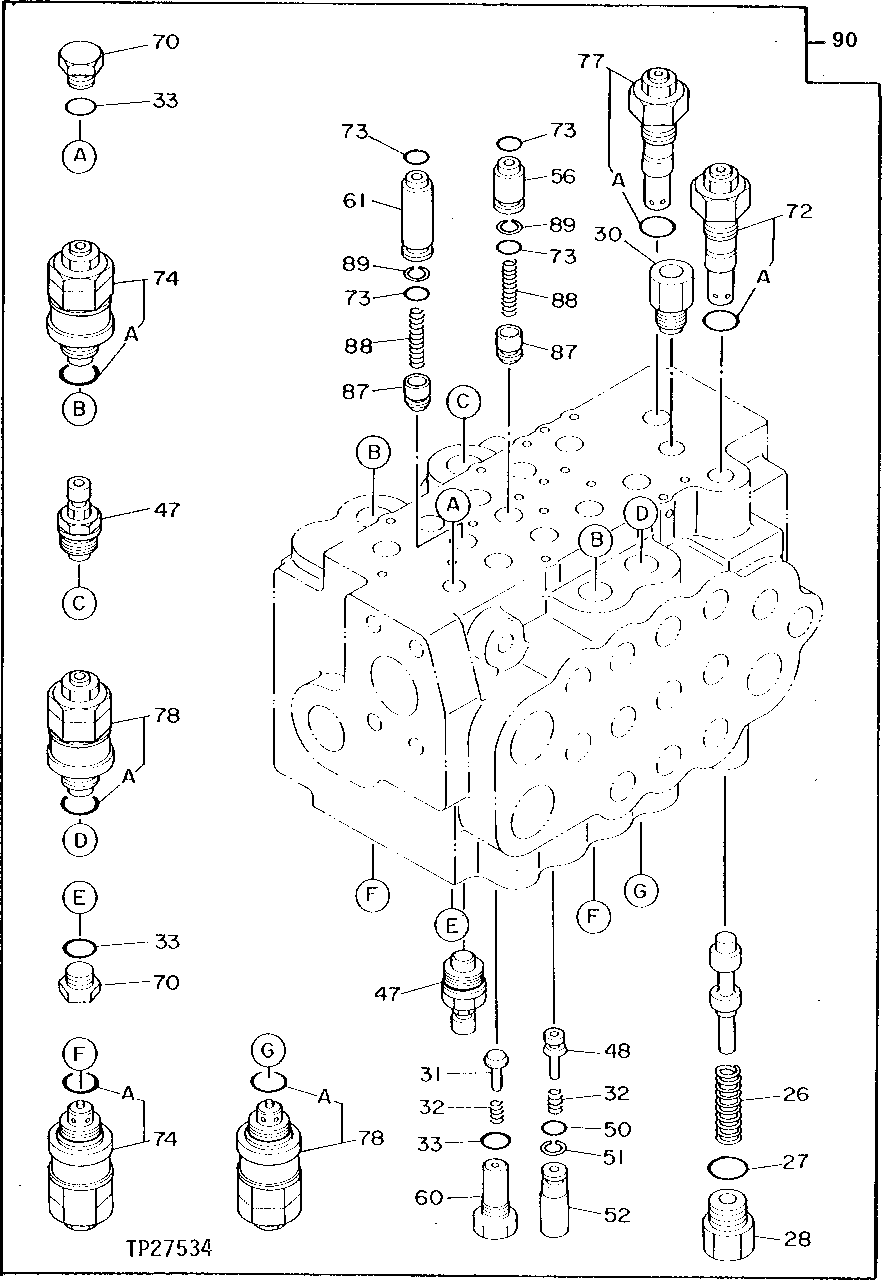

Запчасти John Deere 90D 154 - MAIN HYDRAULIC CONTROL VALVE 3360 HYDRAULIC SYSTEM

26

0332908

Spring

(SUB FOR TH110309)

1шт.

27

R26906

O-Ring

(SUB FOR TH102753)

1шт.

28

0332909

Drain Plug

(SUB FOR TH110310)

1шт.

30

0332911

Drain Plug

(SUB FOR TH110312)

1шт.

31

0332912

Poppet

(SUB FOR TH110313)

1шт.

32

0332913

Spring

(SUB FOR TH110314)

2шт.

33

CH11570

O-Ring

3шт.

47

0735916

Pressure Relief Valve

(SUB FOR TH110323, 0332922 AND 4345969)

2шт.

48

0332923

Poppet

(SUB FOR TH110324)

1шт.

50

CH10571

Packing

1шт.

51

0332924

Back-Up Ring

(SUB FOR TH110325)

1шт.

52

0332925

Plug

(SUB FOR TH110326)

1шт.

56

0332927

Plug

(SUB FOR TH110328)

1шт.

60

0332931

Fitting

(SUB FOR TH110332)

1шт.

61

0332932

Plug

(SUB FOR TH110333)

1шт.

70

0218608

Drain Plug

(SUB FOR TH110243)

2шт.

72

0332803

Pressure Relief Valve

DIG (WITH O-RING) (SUB FOR AT130538)

1шт.

72A

R26375

O-Ring

(SUB FOR TH104773)

1шт.

73

4140438

O-Ring

(SUB FOR TH110456)

4шт.

74

4263376

Pressure Relief Valve

BOOM AND ARM (SUB FOR TH110340, TH IS APPLICATION ) (SUB FOR AT130789)

4шт.

74A

R26906

O-Ring

(SUB FOR TH102753)

1шт.

77

0332804

Pressure Relief Valve

(SUB FOR AT130539)TRAVEL (WITH O-RING)

1шт.

77A

R26375

O-Ring

(SUB FOR TH104773)

1шт.

78

0332805

Pressure Relief Valve

(SUB FOR AT130540)BUCKET (WITH O-RING)

2шт.

78A

R26906

O-Ring

(SUB FOR TH102753)

1шт.

87

0332941

Poppet

(SUB FOR TH110342)

2шт.

88

0224416

Spring

(SUB FOR TH102752)

2шт.

89

4040813

Back-Up Ring

(SUB FOR TH110449)

2шт.

90

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS, SEE PREV IOUS PAGES) (USE IF AVAILABLE) ( 4 194450 NLA) (SERVICE COMPONENTS ONL Y)

1шт.
