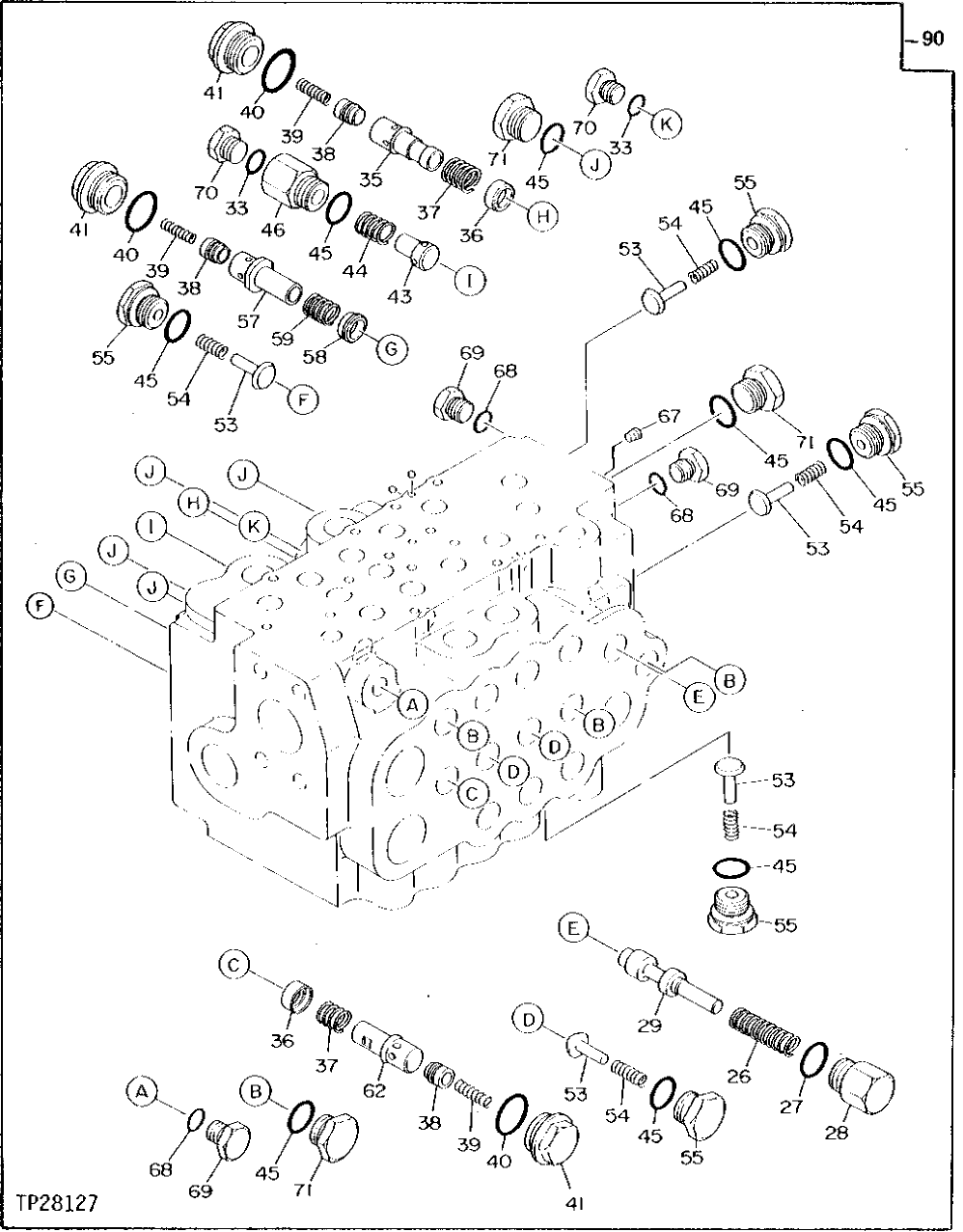

Запчасти John Deere 90D 153 - MAIN HYDRAULIC CONTROL VALVE 3360 HYDRAULIC SYSTEM

26

0332908

Spring

(SUB FOR TH110309)

1шт.

27

R26906

O-Ring

(SUB FOR TH102753)

1шт.

28

0332909

Drain Plug

(SUB FOR TH110310)

1шт.

29

Spool

1шт.

33

CH11570

O-Ring

2шт.

35

0332801

Spool

(SUB FOR AT130536)

1шт.

36

0332916

Poppet

(SUB FOR TH110317)

2шт.

37

0332917

Spring

(SUB FOR TH110318)

2шт.

38

0103012

Poppet

(SUB FOR TH105703)

3шт.

39

0103013

Spring

(SUB FOR TH105704)

3шт.

40

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

3шт.

41

0332918

Drain Plug

(SUB FOR TH110319)

3шт.

43

0332919

Poppet

(SUB FOR TH110320)

1шт.

44

0332920

Spring

(SUB FOR TH110321)

1шт.

45

4506418

O-Ring

(SUB FOR U46489)

15шт.

46

0332921

Fitting

(SUB FOR TH110322)

1шт.

53

0332926

Poppet

(SUB FOR TH110327)

6шт.

54

0225209

Spring

(SUB FOR TH105754)

6шт.

55

0225210

Fitting Plug

(SUB FOR TH105755)

6шт.

57

0332928

Spool

(SUB FOR TH110329)

1шт.

58

0332929

Poppet

(SUB FOR TH110330)

1шт.

59

0332930

Spring

(SUB FOR TH110331)

1шт.

62

0332802

Spool

(SUB FOR AT130537)

1шт.

67

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

68

M800650

Packing

3шт.

69

0332936

Fitting

(SUB FOR TH110337)

3шт.

70

0218608

Drain Plug

(SUB FOR TH110243)

2шт.

71

0225216

Fitting Plug

(SUB FOR TH105757)

8шт.

90

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, ADDI TIONAL COMPONENTS LISTED ON PREVIOUS AN D FOLLOWING PAGES) (USE IF AVAILABLE) ( 4194450 NLA) (SERVICE COMPONENTS ONLY )

1шт.
