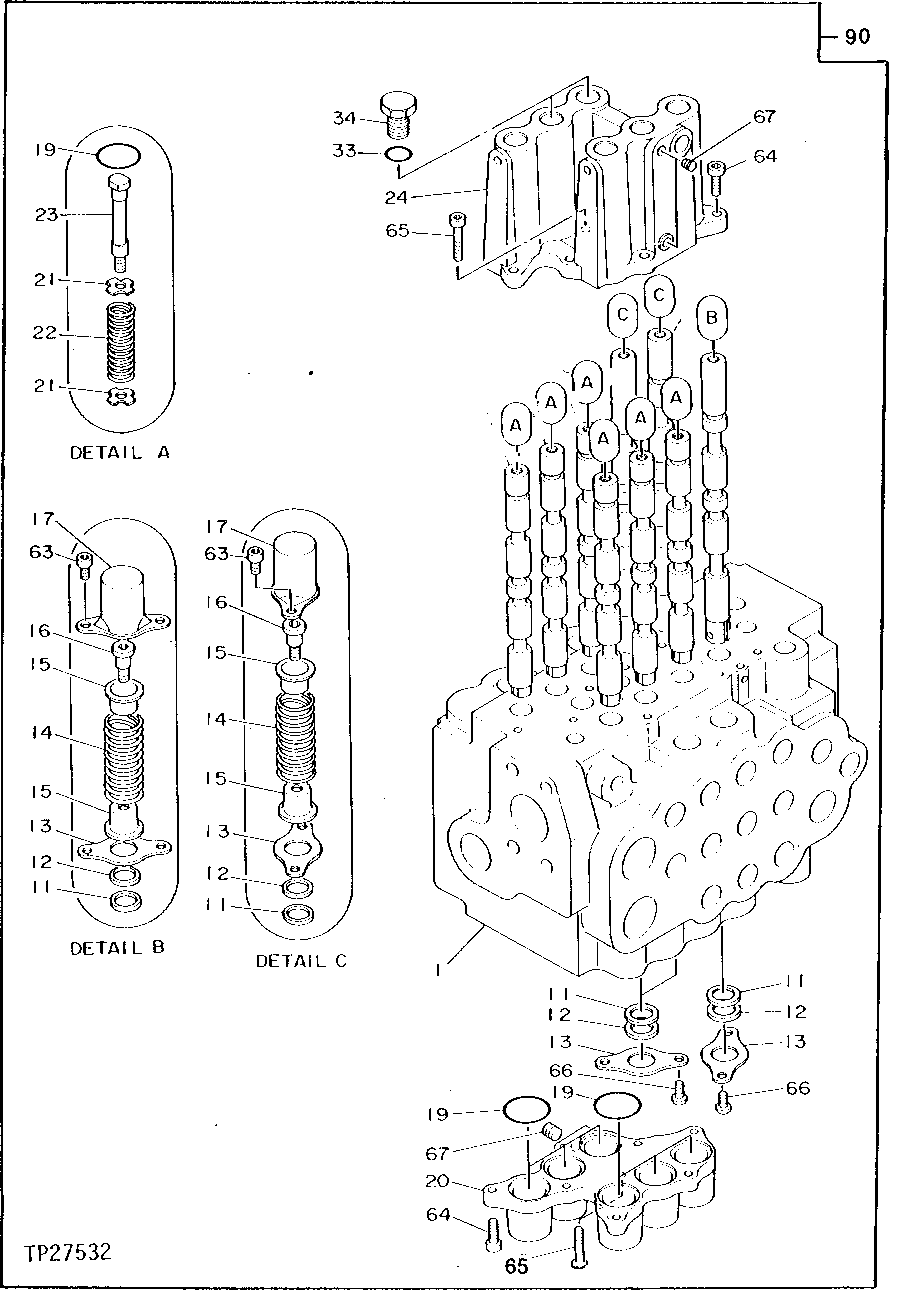

Запчасти John Deere 90D 152 - MAIN HYDRAULIC CONTROL VALVE 3360 HYDRAULIC SYSTEM

1

Housing

(SUB AT130391 OR AT186090)

1шт.

11

0225202

Seal

(SUB FOR TH105747)

6шт.

12

0225203

Seal

(SUB FOR TH105748)

6шт.

13

0332901

Plate

(SUB FOR TH110302)

6шт.

14

0225208

Spring

(SUB FOR TH105753)

3шт.

15

0225205

Retainer

(SUB FOR TH105750)

6шт.

16

0225201

Cap Screw

(SUB FOR TH106840)

3шт.

17

0332902

Cap

(SUB FOR TH110303)

3шт.

19

CH17653

Packing

12шт.

20

0332903

Cover

(SUB FOR TH110304)

1шт.

21

0332904

Retainer

(SUB FOR TH110305)

12шт.

22

0332905

Spring

(SUB FOR TH110306)

6шт.

23

0332906

End

(SUB FOR TH110307)

6шт.

24

0332907

Cap

(SUB FOR TH110308)

1шт.

33

CH11570

O-Ring

2шт.

34

0332914

Drain Plug

(SUB FOR TH110315)

2шт.

63

0209423

Bolt

(SUB FOR TH105824 ) (SUB FOR TH100738)

6шт.

64

19M7717

Screw

M6 X 20 (SUB FOR TH110335)

14шт.

65

T115409

Bolt

(SUB FOR TH110336)

2шт.

66

21M7400

Screw

M6 X 10 (SUB FOR TH105705)

6шт.

67

94-2010

Fitting Plug

(SUB FOR TH100689)

3шт.

90

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDI TIONAL COMPONENTS SEE FOLLOWING PAGES) (SUB FOR AT130391 AND AT186090 (USE IF AVAILABL E) ( 4194450 NLA) (SERVICE COMPONENTS ONLY) )

1шт.
