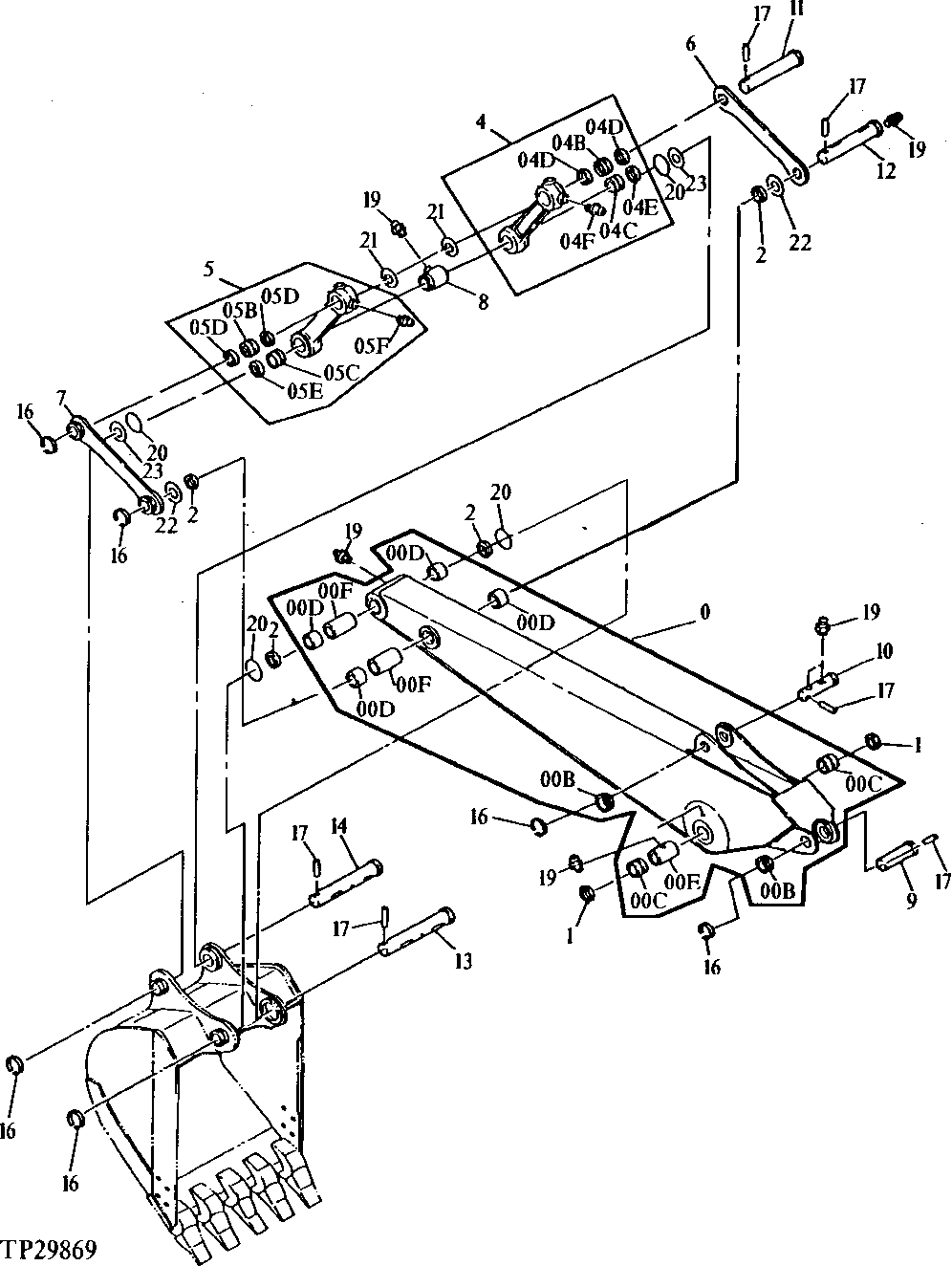

Запчасти John Deere 90D 150 - Standard Arm 3340 FRAMES

0

AT130315

Arm

WHOLEGOODS

1шт.

7019073

Arm

SUB FOR AT130732

1шт.

0B

T115092

Bushing

2шт.

0C

4198295

Bushing

SUB FOR AT130402

2шт.

0D

4198296

Bushing

SUB FOR AT130403

4шт.

0E

4198374

Line

SUB FOR AT130404

1шт.

0F

4088092

Line

SUB FOR AT130370

2шт.

1

4082193

Seal

SUB FOR AT130367

2шт.

2

4082194

Seal

SUB FOR AT120759

4шт.

4

8037893

Link

SUB FOR AT130480 Right

1шт.

4B

4198295

Bushing

SUB FOR AT130402

1шт.

4C

4198845

Bushing

SUB FOR AT130405

1шт.

4D

4082193

Seal

SUB FOR AT130367

2шт.

4E

4082194

Seal

SUB FOR AT120759

1шт.

4F

TH100074

Lubrication Fitting

1шт.

5

Link

8037894 NLA, SUB FOR AT130481

1шт.

5B

4198295

Bushing

SUB FOR AT130402

1шт.

5C

4198845

Bushing

SUB FOR AT130405

1шт.

5D

4082193

Seal

SUB FOR AT130367

2шт.

5E

4082194

Seal

SUB FOR AT120759

1шт.

5F

TH100074

Lubrication Fitting

1шт.

6

3037343

Link

SUB FOR AT130351

1шт.

7

9727023

Link

SUB FOR AT130503

1шт.

8

9706236

Spacer

SUB FOR AT130500

1шт.

9

3037434

Pin Fastener

SUB FOR AT130356

1шт.

10

3037436

Pin Fastener

SUB FOR AT130358

1шт.

11

3037437

Pin Fastener

SUB FOR AT130359

1шт.

12

3037432

Pin Fastener

SUB FOR AT130354

1шт.

13

3037431

Pin Fastener

SUB FOR AT130353

1шт.

14

3037690

Pin Fastener

SUB FOR AT130361

1шт.

16

4065688

Retainer

SUB FOR TH100624

6шт.

17

4065689

Pin Fastener

SUB FOR TH100625

6шт.

19

TH100074

Lubrication Fitting

5шт.

20

4069166

O-Ring

SUB FOR AT130365

4шт.

21

4075357

Washer

1MM SUB FOR TH108944

ARшт.

22

4082148

Washer

1MM SUB FOR AT126192

ARшт.

23

4081655

Washer

1MM SUB FOR AT130366

2шт.
