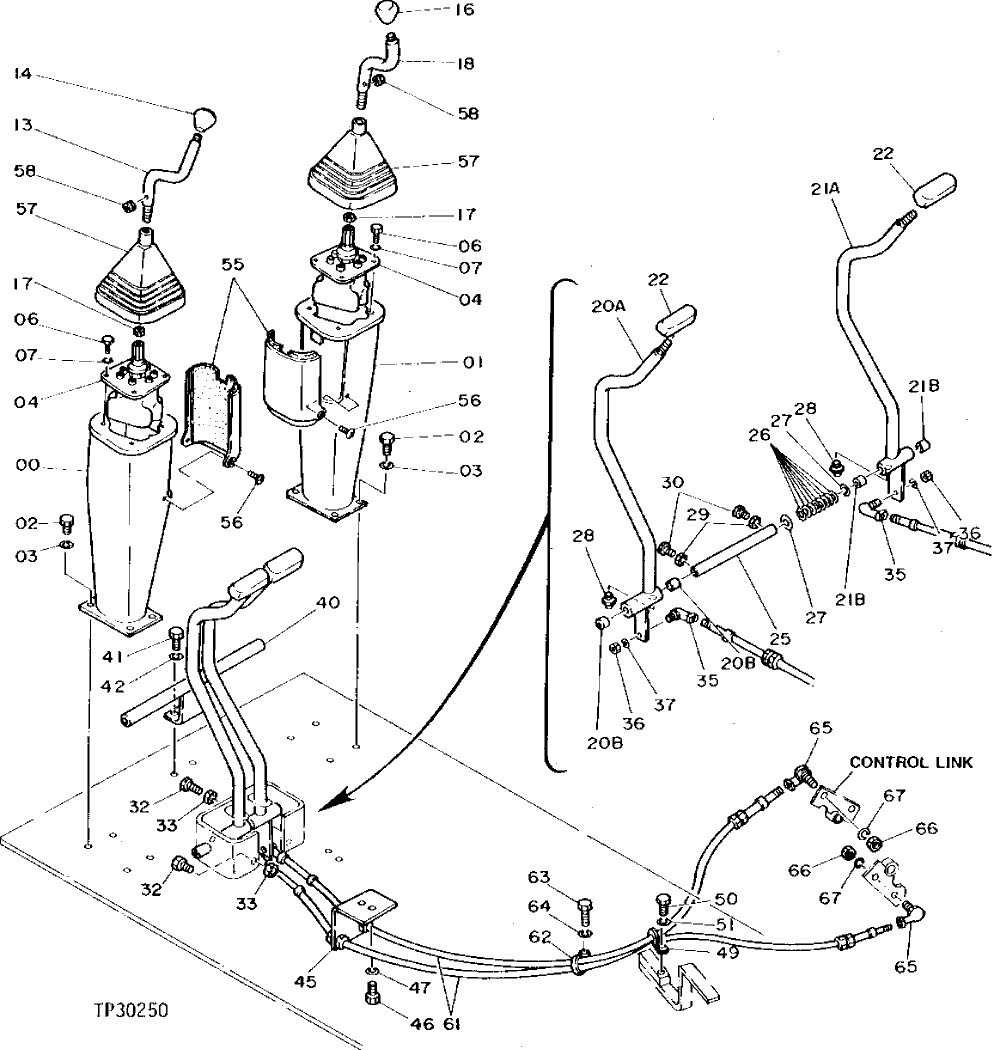

Запчасти John Deere 90D 146 - CONTROL LEVER 3315 CONTROL LINKAGE

0

6008402

Stand

(SUB FOR TH110794)

1шт.

1

6008401

Stand

(SUB FOR TH110793)

1шт.

2

19M7402

Cap Screw

M10 X 25

8шт.

3

12M7066

Lock Washer

10 mm

8шт.

4

AT131277

Valve

NLA, (ORDER AT189840)

2шт.

AT189840

Hyd/Pilot Cntl Valve Reman

( TH111710 NO LONGER AVAILABLE) (VALVE SERIAL NO.) (USE AT131277 IF AVAILABLE) (REMAN FOR AT131277 )

2шт.

AT189840

Hyd/Pilot Cntl Valve Reman

(VALVE SERIAL NO.) (USE AT131277 IF AVAILAB LE) (SUB FOR AT130916) (REMAN FOR AT131277)

2шт.

6

19M8425

Cap Screw

M6 X 16

8шт.

7

12M7006

Lock Washer

6 mm

8шт.

13

7018130

Lever

(SUB FOR TH110899)

1шт.

14

4269020

Knob

(SUB FOR TH108073)(INCLUDES HORN SWITCH)

1шт.

16

4243449

Grip

(SUB FOR AT130678)INCLUDES TRAVEL ALARM CANCEL SWITCH

1шт.

17

14M7141

Nut

M14

2шт.

18

7021419

Lever

(SUB FOR AT130739)

1шт.

20A

9078733

Lever

(INCLUDES (2) TH103818 ) (SUB FOR TH110931)

1шт.

20B

4063692

Needle Bearing

(SUB FOR TH103818)

2шт.

21A

9078732

Lever

(INCLUDES (2) TH103818 ) (SUB FOR TH110932)

1шт.

21B

4063692

Needle Bearing

(SUB FOR TH103818)

2шт.

22

4122423

Grip

(SUB FOR TH106012)

2шт.

25

4201336

Pin Fastener

(SUB FOR TH110572)

1шт.

26

4081592

Shim

4 MM (SUB FOR TH102030)

8шт.

27

24M7051

Washer

21 X 37 X 3 mm

2шт.

28

TH100074

Lubrication Fitting

2шт.

29

14M7274

Nut

M10

2шт.

30

19M7662

Cap Screw

M10 X 30

2шт.

32

19M7403

Cap Screw

M12 X 35

4шт.

33

14M7275

Nut

M12

4шт.

35

T110021

Ball Joint Socket

2шт.

36

14M7273

Nut

M8

2шт.

37

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

40

9719420

Footrest

(SUB FOR TH106281)

1шт.

41

19M7402

Cap Screw

M10 X 25

2шт.

42

12M7066

Lock Washer

10 mm

2шт.

45

4211091

Bracket

(SUB FOR TH110610)

1шт.

46

19M8017

Cap Screw

M12 X 20

2шт.

47

12H301

Lock Washer

1/2"

2шт.

49

4192018

Clip

(SUB FOR TH110498)

1шт.

50

19M7938

Cap Screw

M10 X 20

1шт.

51

12M7066

Lock Washer

10 mm

1шт.

55

7019096

Cover

(SUB FOR TH110912)

2шт.

56

21M7278

Screw

M5 X 10 (SUB FOR AT130 324 ) (SUB FOR 21M6071)

4шт.

57

2025150

Boot

(SUB FOR TH110389)

2шт.

58

487081

Grommet

(SUB FOR TH108081)

2шт.

61

4216652

Cable

(SUB FOR AT130508)

2шт.

62

4192018

Clip

(SUB FOR TH110498)

1шт.

63

19M8324

Cap Screw

M10 X 16

1шт.

64

12M7066

Lock Washer

10 mm

1шт.

65

T110021

Ball Joint Socket

2шт.

66

14M7273

Nut

M8

2шт.

67

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.
