Запчасти John Deere 90D 142 - HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS, TEETH, SHANKS AND SIDE CUTTERS

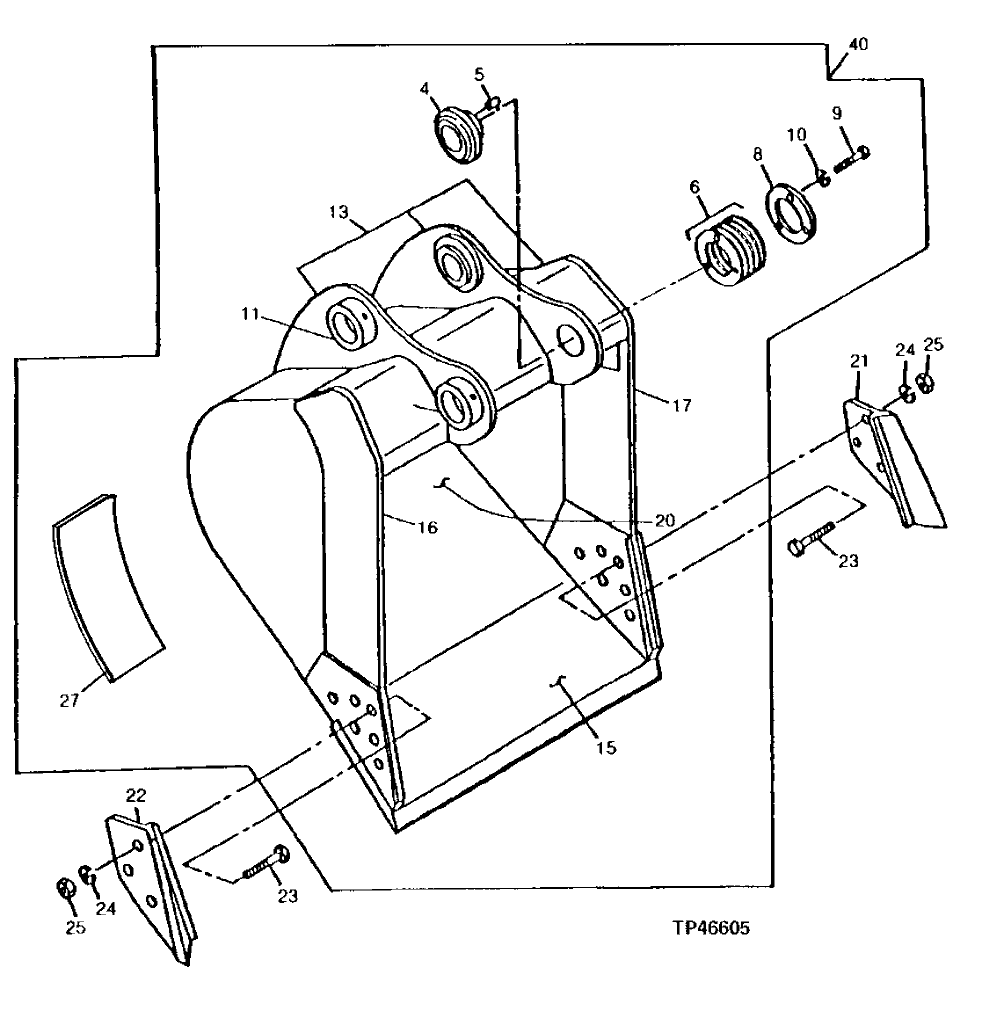

Схема запчастей John Deere 90D - 142 - HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS, TEETH, SHANKS AND SIDE CUTTERS

Артикул

Название

Примечание

Количество

4

3037347

Bushing

(SUB FOR AT130352)

1шт.

5

4198156

Pin Fastener

(SUB FOR TH110563)

1шт.

6

4198288

Washer

(SUB FOR AT130401)

7шт.

8

AT130400

Plate

1шт.

9

19M7493

Cap Screw

M12 X 40

3шт.

10

12H301

Lock Washer

1/2"

3шт.

11

T115092

Bushing

2шт.

13

C609599

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

AT131087

Cutting Edge

(CUT TO LENGTH)

1шт.

16

305331

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

307186

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

20

603941

Moldboard

(F) (18 INCH BUCKET)

1шт.

603943

Moldboard

(F) (24 INCH BUCKET)

1шт.

603945

Moldboard

(F) (30 INCH BUCKET)

1шт.

603946

Moldboard

(F) (36 INCH BUCKET)

1шт.

21

Cutting Edge

(K) (SUB AT167880)

1шт.

22

Cutting Edge

(K) (SUB AT167880)

1шт.

23

09H1764

Bolt

(K) 5/8" X 2-1/2"

6шт.

24

12H294

Lock Washer

(K) 5/8"

6шт.

25

14H1039

Nut

(K) 5/8"

6шт.

27

310666

Bar

(F) (WEAR)

1шт.

40

Excavator Bucket

( AT172084 NLA) (18 INCH - .28 CUBIC YARD)

1шт.

Excavator Bucket

( AT172085 NLA) (24 INCH - .41 CUBIC YARD)

1шт.

Excavator Bucket

( AT172087 NLA) (30 INC H - .54 INCH CUBIC YARD)

1шт.

Excavator Bucket

( AT172088 NLA) (36 INCH - .66 CUBIC YARD)

1шт.

Выбрано товаров: 25
