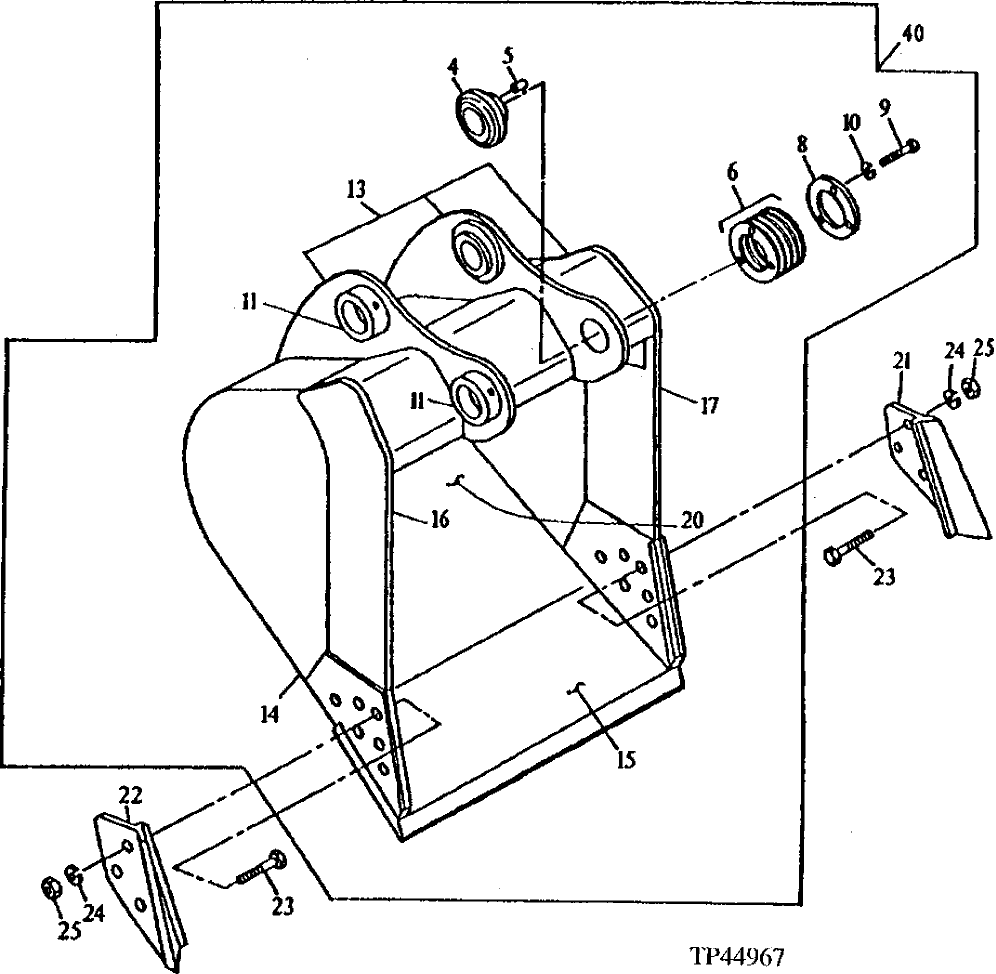

Запчасти John Deere 90D 141 - GENERAL PURPOSE BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS, TEETH, SHANKS AND SIDE CUTTERS

4

3037347

Bushing

(SUB FOR AT130352)

1шт.

5

4198156

Pin Fastener

(SUB FOR TH110563)

1шт.

6

4198288

Washer

(SUB FOR AT130401)

7шт.

8

AT130400

Plate

1шт.

9

19M7493

Cap Screw

M12 X 40

3шт.

10

12H301

Lock Washer

1/2"

3шт.

11

T115092

Bushing

2шт.

13

C607922

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304403

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131087

Cutting Edge

(CUT TO LENGTH)

1шт.

16

304402

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

307175

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

20

603941

Moldboard

(F) (18 INCH BUCKET)

1шт.

603943

Moldboard

(F) (24 INCH BUCKET)

1шт.

603945

Moldboard

(F) (30 INCH BUCKET)

1шт.

603946

Moldboard

(F) (36 INCH BUCKET)

1шт.

21

Cutting Edge

(K) (SUB AT167880)

1шт.

22

Cutting Edge

(K) (SUB AT167880)

1шт.

23

09H1764

Bolt

(K) 5/8" X 2-1/2"

6шт.

24

12H294

Lock Washer

(K) 5/8"

6шт.

25

14H1039

Nut

(K) 5/8"

6шт.

40

Excavator Bucket

(F) (SUB FOR AT131000 OR AT131120)( AT16346 0NLA) WHOLEGOODS (18 INCH - .28 CUBIC YARD) ( AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(F) (SUB FOR AT131001 OR AT131121)( AT16346 1 NLA) WHOLEGOODS (24 INCH - .41 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(F) (SUB FOR AT131002 OR AT131122 )( AT163462 NLA) WHOLEGOODS (30 INC H - .54 INCH CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(F) (SUB FOR AT131003 OR AT131123)( AT16346 3 NLA) WHOLEGOODS (36 INCH - .66 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.
