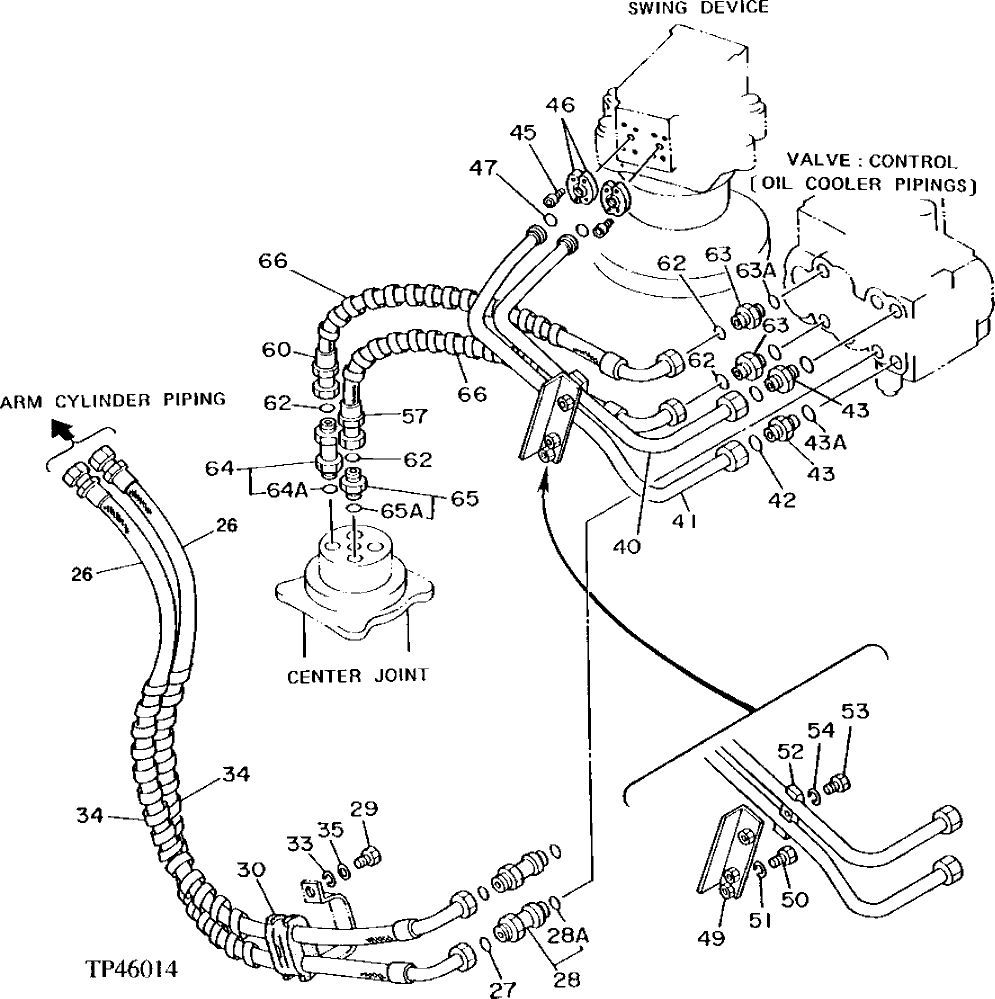

Запчасти John Deere 90D 138 - MAIN HYDRAULIC OIL LINES 2160 HYDRAULIC SYSTEM

26

AT130448

Hydraulic Hose

30.1752" X 1300 mm (51-1/4") X 30.1752"

2шт.

27

T77858

O-Ring

SUB FOR TH108349

2шт.

28

4197532

Adapter Fitting

2шт.

28A

4235035

O-Ring

1шт.

29

19M7872

Cap Screw

M12 X 25

1шт.

30

3038200

Bushing

SUB FOR AT130362

1шт.

33

12H301

Lock Washer

1/2"

1шт.

34

Hose Guard

MAKE FROM XHG-075 BULK MATERIAL, CUT TO L ENGTH SUB FOR TH100996, AT138222, 3052919

2шт.

35

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

40

8042186

Oil Line

SUB FOR AT130489

1шт.

41

8042187

Oil Line

SUB FOR AT130490

1шт.

42

T77858

O-Ring

SUB FOR TH108349

2шт.

43

X8-10F5OX

Adapter Fitting

SUB FOR TH110204 OR TH1 01006, ALONG WITH U46489

2шт.

43A

4506418

O-Ring

SUB FOR U46489

2шт.

45

19M8439

Screw

M8 X 25

8шт.

46

4510173

Fitting

SUB FOR TH108341

4шт.

47

CH12329

Packing

2шт.

49

9730427

Support

SUB FOR AT130506

1шт.

50

19M7872

Cap Screw

M12 X 25

2шт.

51

12H301

Lock Washer

1/2"

2шт.

52

4189858

Clamp

SUB FOR TH108333

1шт.

53

19M7361

Cap Screw

M12 X 50

1шт.

54

12H301

Lock Washer

1/2"

1шт.

57

4210320

Hydraulic Hose

30.1752" X 750 mm (29-1/2") X 30.1752" SUB FOR AT130407

1шт.

60

4210321

Hydraulic Hose

30.1752" X 800 mm (31-1/2") X 30.1752" SUB FOR AT130408

1шт.

62

T77858

O-Ring

SUB FOR TH108349

4шт.

63

X8-10F5OX

Adapter Fitting

SUB FOR TH110204 OR TH1 01006, ALONG WITH U46489

2шт.

63A

4506418

O-Ring

SUB FOR U46489

2шт.

64

4189539

Adapter Fitting

SUB FOR AT107393

1шт.

64A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

65

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

1шт.

65A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

66

Hose Guard

MAKE FROM XHG-075 BULK MATERIAL, CUT TO LE NGTH SUB FOR TH100996, AT138222 OR 3052919

2шт.
