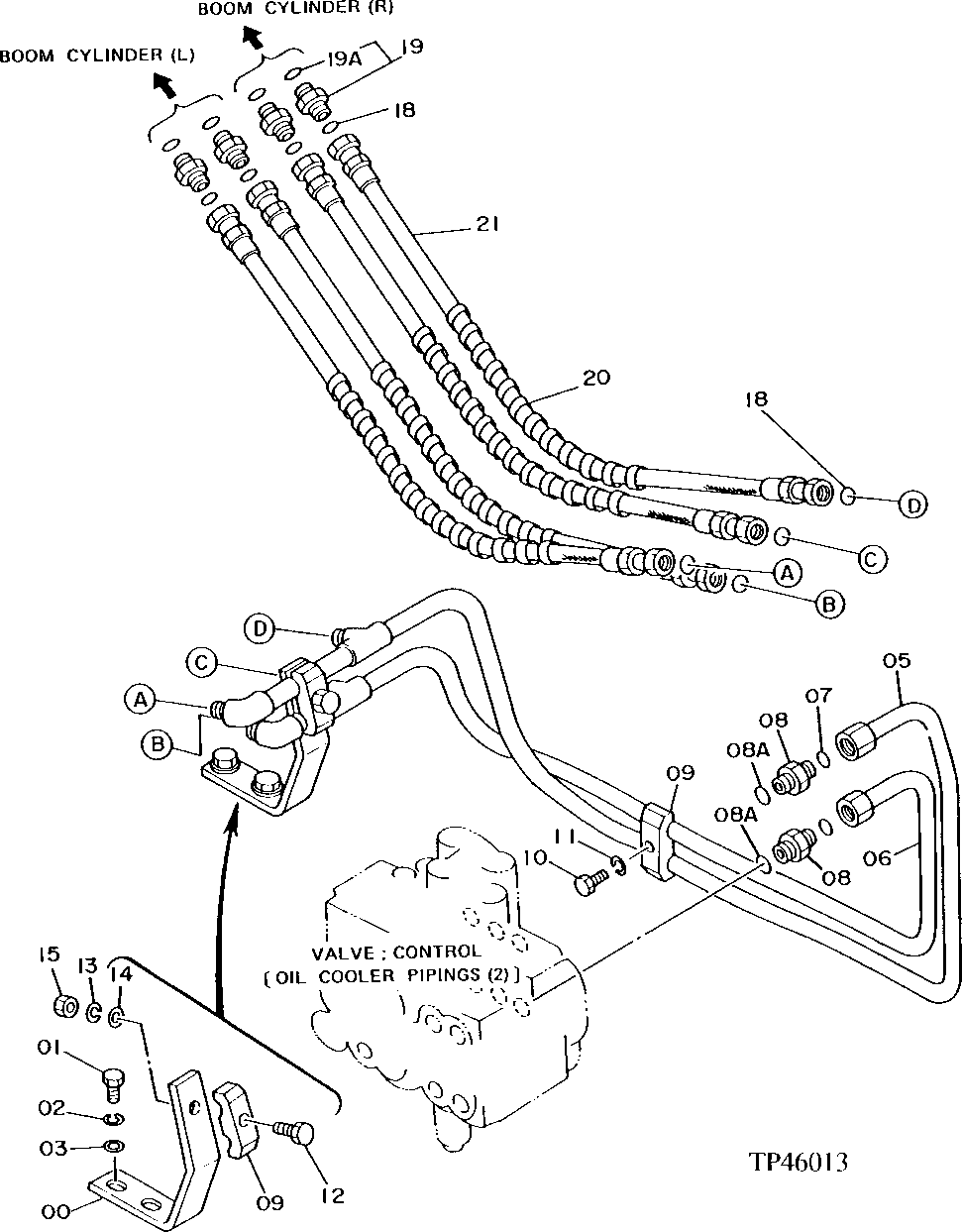

Запчасти John Deere 90D 137 - MAIN HYDRAULIC OIL LINES 2160 HYDRAULIC SYSTEM

0

4189137

Support

(SUB FOR TH108330)

1шт.

1

19M7872

Cap Screw

M12 X 25

2шт.

2

12H301

Lock Washer

1/2"

2шт.

3

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

5

8037420

Line

(SUB FOR AT130479)

1шт.

6

8037419

Oil Line

(SUB FOR AT130478)

1шт.

7

T77858

O-Ring

(SUB FOR TH108349)

2шт.

8

X8-10F5OX

Adapter Fitting

(SUB FOR TH110204 OR TH1 01006, ALONG WITH U46489)

2шт.

8A

4506418

O-Ring

(SUB FOR U46489)

2шт.

9

4189858

Clamp

(SUB FOR TH108333)

2шт.

10

19M7361

Cap Screw

M12 X 50

1шт.

11

12H301

Lock Washer

1/2"

1шт.

12

19M7363

Cap Screw

M12 X 60

1шт.

13

12H301

Lock Washer

1/2"

1шт.

14

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

15

14M7275

Nut

M12

1шт.

18

T77857

O-Ring

(SUB FOR TH108323)

8шт.

19

4189602

Fitting

(SUB FOR TH108350)

4шт.

19A

4506418

O-Ring

(SUB FOR U46489)

1шт.

20

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LEN GTH) (SUB FOR TH100996, AT138222 OR 3052919)

4шт.

21

AT130438

Hydraulic Hose

13/16" X 820 mm (32-1/4") X 13/16"

4шт.
