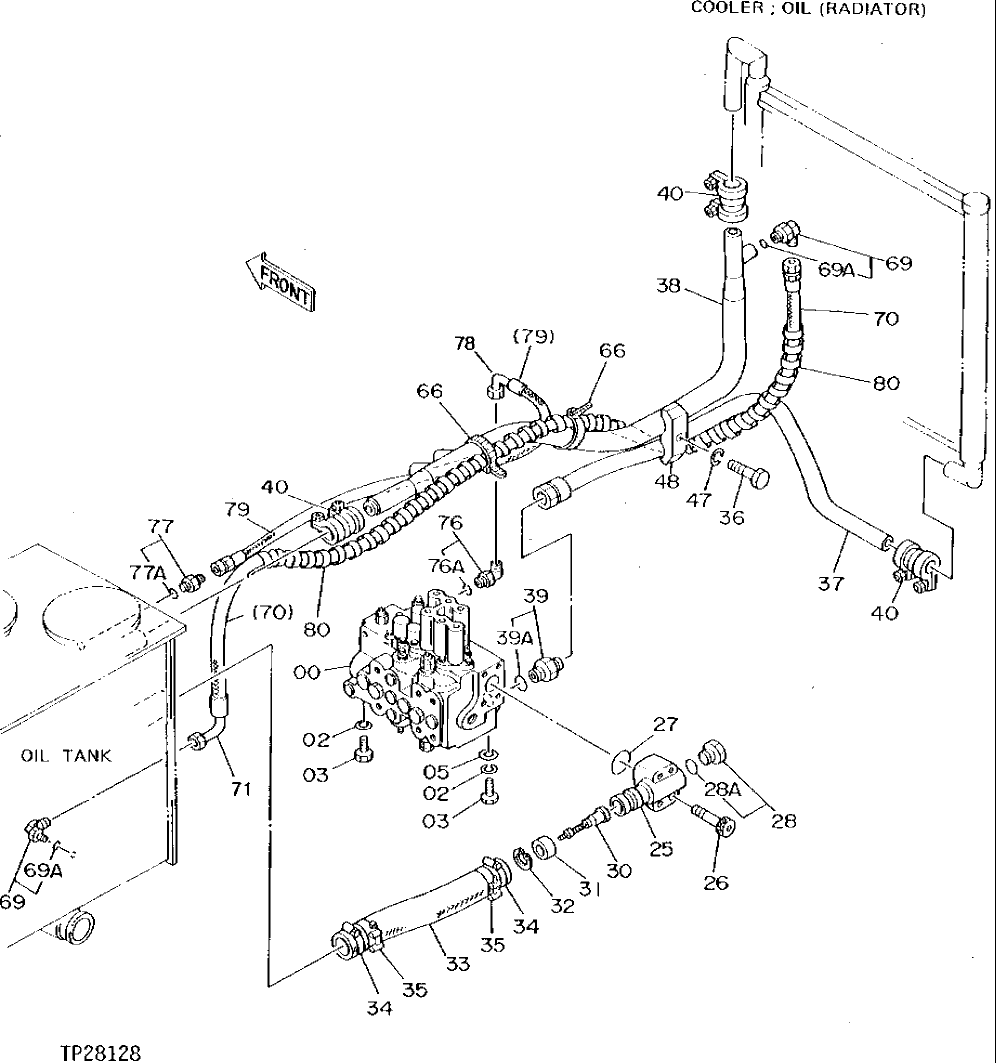

Запчасти John Deere 90D 133 - OIL COOLER LINES 2160 HYDRAULIC SYSTEM

0

Hyd Actuated Control Valve

SUB FOR AT130391 AND AT186090, AT 130391, AT186090, AND 4194450 NLA

1шт.

2

12H317

Lock Washer

9/16"

3шт.

3

19M7877

Cap Screw

M14 X 30

3шт.

5

4114404

Washer

SUB FOR TH108203, SUB FOR AT130666

1шт.

25

2023808

Manifold

SUB FOR TH110380

1шт.

26

19M8340

Screw

M10 X 65

4шт.

27

A811050

O-Ring

SUB FOR TH101014

1шт.

28

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

28A

TH101926

O-Ring

1шт.

30

4197528

Flow Control Hyd. Valve

SUB FOR TH110550

1шт.

31

4197527

Ring

SUB FOR TH110549

1шт.

32

40M1860

Snap Ring

SUB FOR TH110989

1шт.

33

4120281

Hose

44.5MM (1.7520IN) ID X 450.0MM ( A7.7165IN) LG, SUB FOR AT130373

1шт.

34

AT105289

Clamp

SUB FOR TH103473, AT105289 AND AT131221

2шт.

35

TY22470

Clamp

SUB FOR AR65293

2шт.

36

19M7364

Cap Screw

M12 X 80

1шт.

37

7021319

Oil Line

SUB FOR AT130735

1шт.

38

7021320

Oil Line

SUB FOR AT130736

1шт.

39

4042034

Adapter Fitting

SUB FOR TH110450

1шт.

39A

TH101926

O-Ring

1шт.

40

4071213

Coupling

CONTAINS 2 TH106965 SUB FO R TH101923 AND FXV00000005

3шт.

Coupling

SUB FOR TH106965 AND 4196258

1шт.

47

12H301

Lock Washer

1/2"

1шт.

48

FF101775

Clamp

SUB FOR 4198598 AND AT126328

1шт.

66

H77698

Tie Band

SUB FOR TH106422

4шт.

69

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

2шт.

69A

CH11570

O-Ring

1шт.

70

AT130683

Hydraulic Hose

9/16" X 2349 mm (92-1/2") X 9/16" S UB FOR AT130437, ALSO ORDER AE24616

1шт.

71

AE24616

Elbow Fitting

1шт.

76

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

76A

M800650

Packing

1шт.

77

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

77A

M800650

Packing

1шт.

78

AH89069

Elbow Fitting

1шт.

79

AT126850

Hydraulic Hose

11.1252" X 770 mm (30-1/4") X 11.1 252" SUB FOR AT130675 AND 4221221S

1шт.

AH89069

Elbow Fitting

SUB FOR AT130675 AND 4221221S

1шт.

80

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

2шт.
