Запчасти John Deere 90D 122 - MAIN HYDRAULIC PUMP AND DRIVE 2160 HYDRAULIC SYSTEM

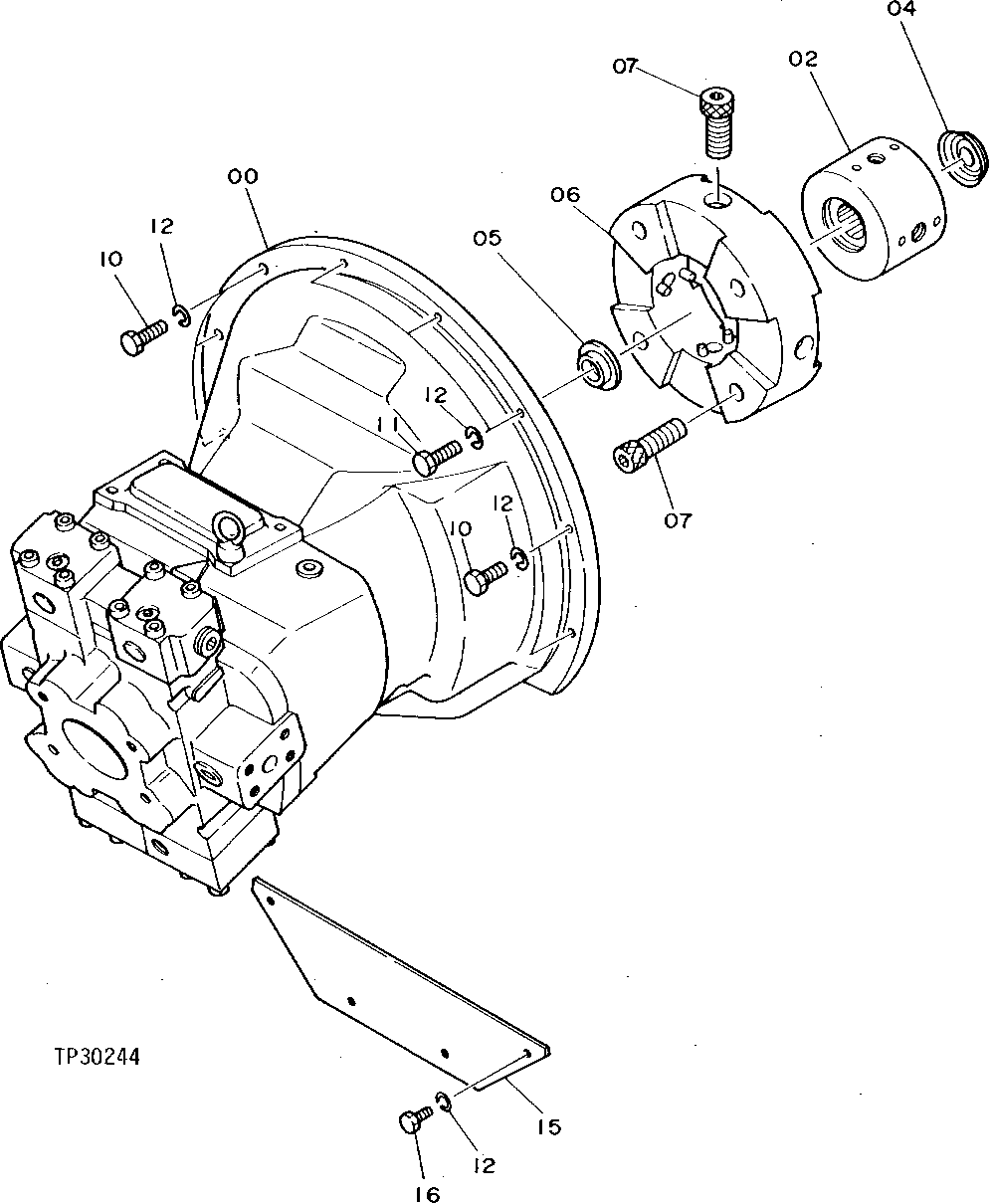

Схема запчастей John Deere 90D - 122 - MAIN HYDRAULIC PUMP AND DRIVE 2160 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

Pump

(SUB FOR AT130460)( 4621879 NLA)

1шт.

Hydraulic Pump

REMAN ( AT217362 OR 4621879EX NLA)

1шт.

2

3038723

Sleeve

(SUB FOR TH108254)

1шт.

4

30M7026

Plug

50 mm (SUB FOR TH100682)

1шт.

5

4063616

Seal

(SUB FOR TH100683)

1шт.

6

4228189

Coupling

(SUB FOR TH100684 ) (SUB FOR AT122329)

1шт.

7

T108085

Cap Screw

M16 X 50

8шт.

10

T22874

Bolt

9.525 X 28.448 mm (3/8" X 1.120")

5шт.

11

19H3239

Cap Screw

3/8" X 1-1/4"

3шт.

12

12H304

Lock Washer

3/8"

12шт.

15

4205128

Cover

(SUB FOR TH108255)

1шт.

16

19H1648

Cap Screw

3/8" X 3/4"

4шт.

Выбрано товаров: 12
