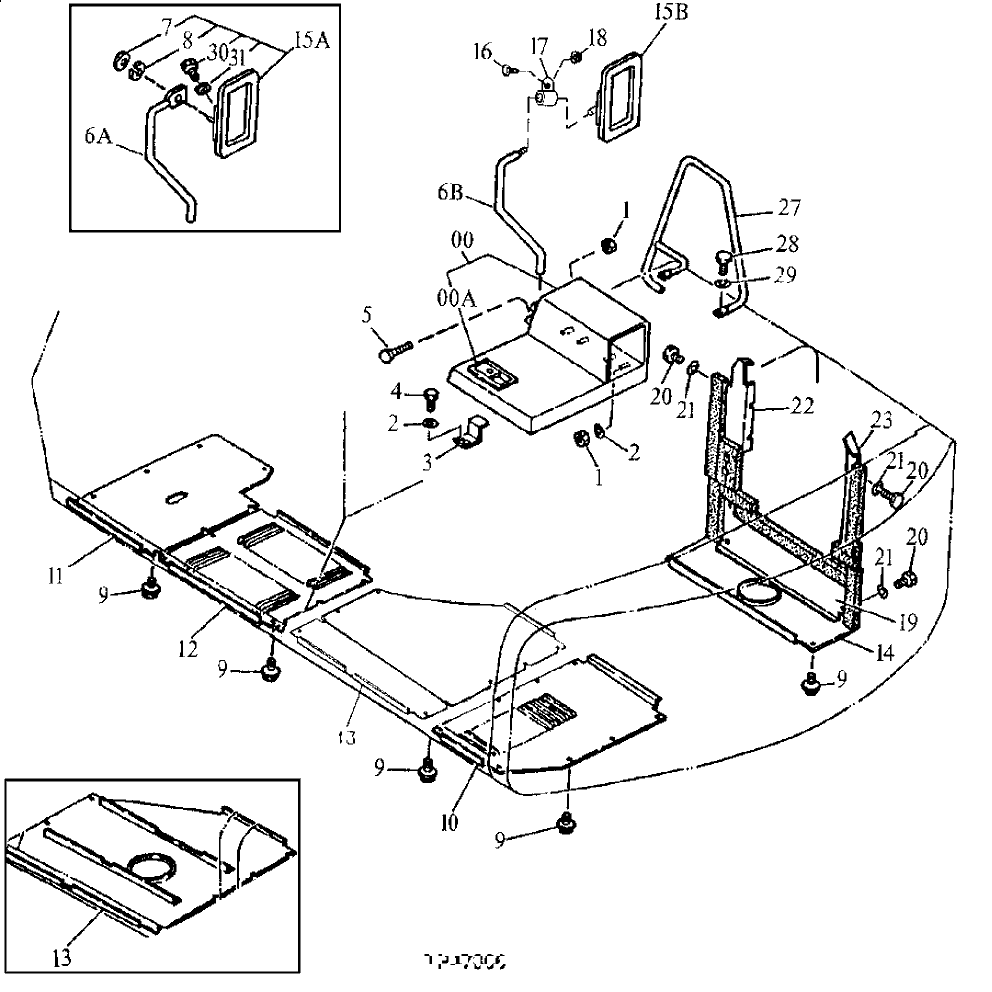

Запчасти John Deere 90D 114 - ENGINE COMPARTMENT SERVICE DOORS AND COVERS 1910 HOOD OR ENGINE ENCLOSURE

0

6008611

Cover

(SUB FOR AT130466)

1шт.

0A

4361763

Lock

(SUB FOR TH110898 OR AT11 5741 ) (SUB FOR AT214010)

1шт.

1

14M7275

Nut

M12

6шт.

2

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

3

9726648

Stop

(SUB FOR AT130501)

1шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

5

19M7403

Cap Screw

M12 X 35

2шт.

6A

Support

(SUB AT186649 AND AT185207)( AT128471 NO LONGER AVAILABLE)

1шт.

6B

3064828

Arm

(SUB FOR AT161071)

1шт.

7

14M7273

Nut

M8

1шт.

8

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

9

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

32шт.

19M8011

Cap Screw

M12 X 30

32шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

32шт.

10

2028204

Cover

(SUB FOR AT130614)

1шт.

11

3037483

Cover

(SUB FOR AT130360)

1шт.

12

3037246

Cover

(SUB FOR AT130350)

1шт.

13

7019825

Cover

(SUB FOR AT130468)

1шт.

14

3047424

Cover

(SUB FOR AT130661)

1шт.

15A

4318135

Rear View Mirror

(RIGHT HAND) (SUB FOR AT103919, TH IS APPLICATION ) (SUB FOR AT121241)

1шт.

15B

Rear View Mirror

( TH104119 NO LONGER AVAILABLE) (SU B AT185207 MIRROR AND AT186649 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

16

03M7193

Bolt

M10 X 35

1шт.

17

Clamp

(NOT AVAILABLE FOR SERVICE)

1шт.

18

14M7400

Lock Nut

M10

1шт.

19

8045737

Cover

(SUB FOR AT130747)

1шт.

20

19M7872

Cap Screw

M12 X 25

9шт.

21

12H301

Lock Washer

1/2"

9шт.

22

8045738

Cover

(SUB FOR AT130748)

1шт.

23

8045739

Cover

(SUB FOR AT130749)

1шт.

27

8041628

Support

(SUB FOR TH110960)

1шт.

28

19M7872

Cap Screw

M12 X 25

2шт.

29

12H301

Lock Washer

1/2"

2шт.

30

21M7250

Screw

M4 X 12

3шт.

31

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

3шт.
