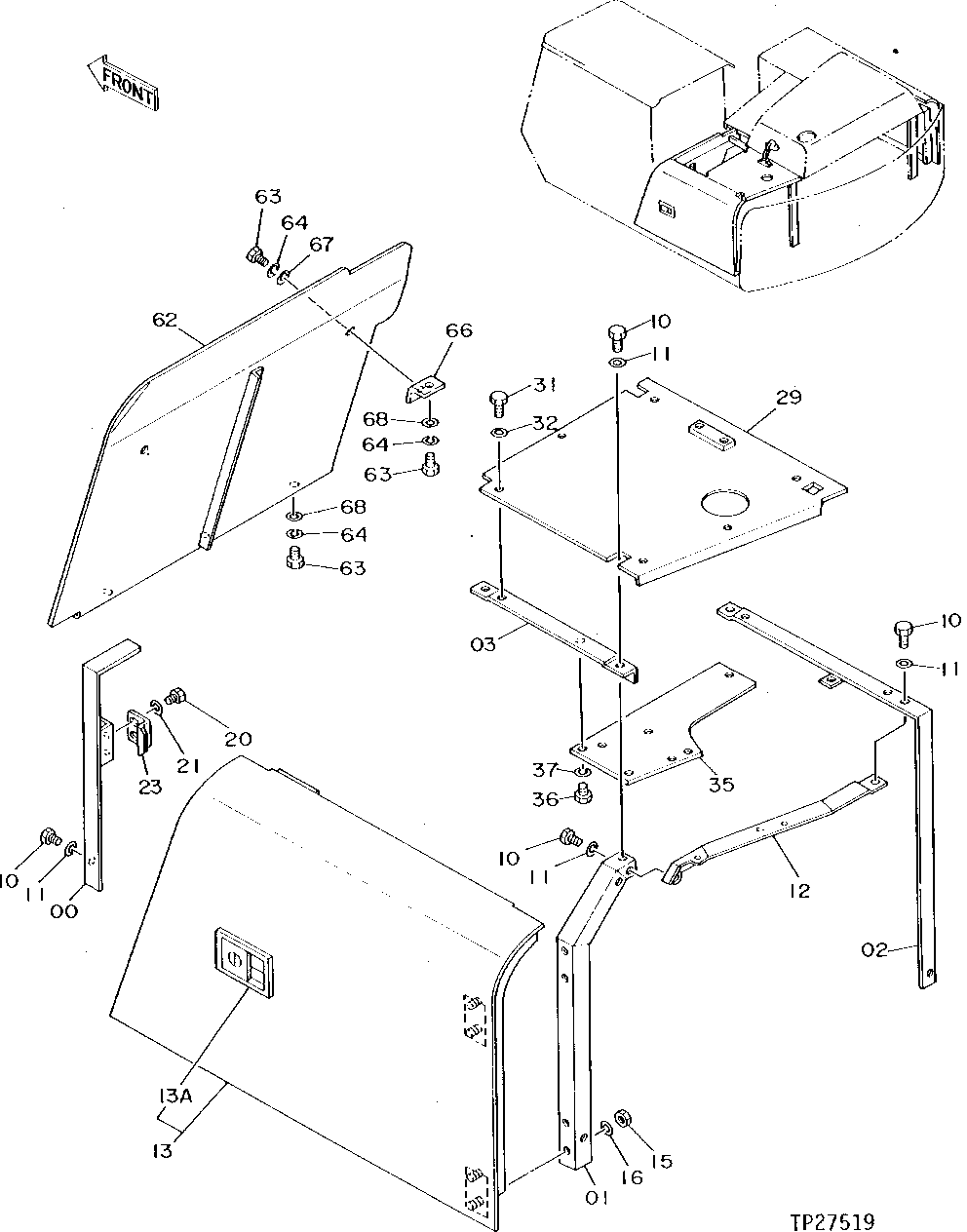

Запчасти John Deere 90D 111 - ENGINE COMPARTMENT SERVICE DOORS AND COVERS 1910 HOOD OR ENGINE ENCLOSURE

0

9726901

Support

(SUB FOR AT130502)

1шт.

1

3047423

Support

(SUB FOR AT130660)

1шт.

2

8045734

Support

(SUB FOR AT130744)

1шт.

3

9733177

Support

(SUB FOR AT130761)

1шт.

10

19M7872

Cap Screw

M12 X 25

9шт.

11

24M7047

Washer

13 X 24 X 2.500 mm

9шт.

12

Support

(SUB AT130773 ALONG WITH AT13 0774, AT130775 AND AT130776)

1шт.

8048045

Support

(SUB FOR AT130773)

1шт.

13

6008245

Door

(SUB FOR AT130464)

1шт.

13A

4361763

Lock

(SUB FOR TH110898 OR AT11 5741 ) (SUB FOR AT214010)

1шт.

15

14M7275

Nut

M12

4шт.

16

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

20

19M7872

Cap Screw

M12 X 25

2шт.

21

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

23

4188492

Stop

(SUB FOR TH108762)

1шт.

29

Cover

(SUB AT130774 ALONG WITH AT13 0773, AT130775 AND AT130776)

1шт.

8048044

Cover

(SUB FOR AT130774)

1шт.

31

19M7872

Cap Screw

M12 X 25

6шт.

32

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

35

Plate

(SUB AT130775 ALONG WITH AT13 0773, AT130774 AND AT130776)

1шт.

4257292

Plate

(SUB FOR AT130775)

1шт.

36

19M7938

Cap Screw

M10 X 20

3шт.

37

12M7066

Lock Washer

10 mm

3шт.

62

7018706

Cover

(SUB FOR AT130472)

1шт.

63

19M7938

Cap Screw

M10 X 20

7шт.

64

12M7066

Lock Washer

10 mm

7шт.

66

4216587

Bracket

(SUB FOR AT130442)

2шт.

67

24M7101

Washer

11 X 34 X 3 mm (SUB FOR TH101289)

2шт.

68

24M7028

Washer

10.500 X 20 X 2 mm

5шт.
