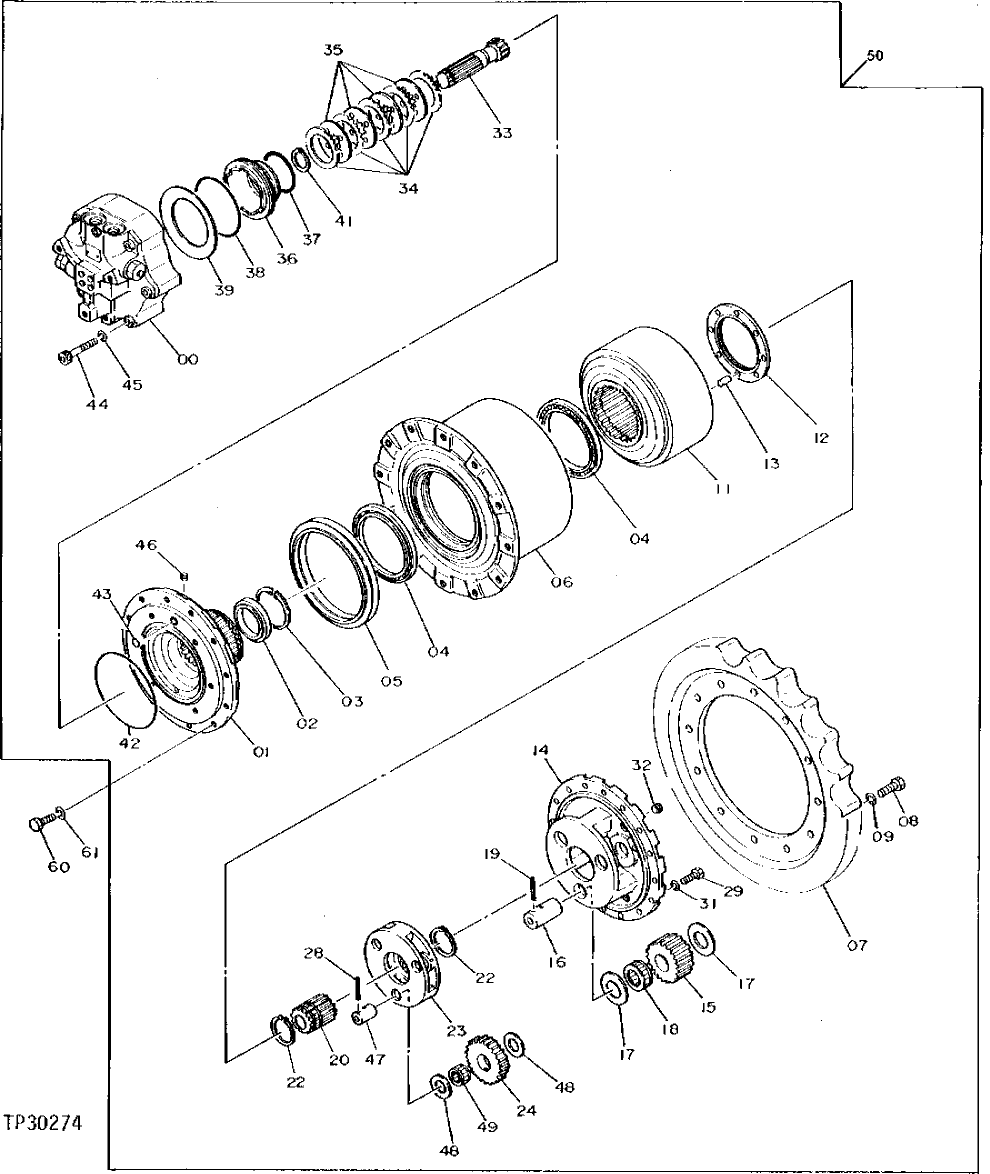

Запчасти John Deere 90D 2 - PROPEL MOTOR AND PLANETARY DRIVE 0130 TRACK SYSTEMS

0

Hydraulic Motor

( AT167087 NO LONGER AVAILABLE

1шт.

Hydraulic Motor

REMANUFACTURING ( AT217307 NLA)

1шт.

1

1012229

Housing

(SUB FOR AT128348)

1шт.

2

4192640

Spacer

(SUB FOR AT130383)

1шт.

3

40M7117

Snap Ring

(SUB FOR AT134304)

1шт.

4

AT130382

Tapered Roller Bearing

2шт.

5

4082631

Seal

(SUB FOR AT130368)

1шт.

6

1011510

Drum

(SUB FOR AT130333)

1шт.

7

1012495

Chain Sprocket

(SUB FOR AT130329 ) (SUB FOR AT200345)

1шт.

8

19M7488

Cap Screw

M16 X 40

12шт.

19M8035

Cap Screw

M16 X 35

12шт.

9

12H294

Lock Washer

5/8"

12шт.

11

2023139

Gear

(SUB FOR AT130334)

1шт.

12

3036163

Nut

(SUB FOR AT130343)

1шт.

13

4148012

Dowel Pin

10 X 19.500 mm (0.394" X 0.768") (SUB FOR TH110463)

1шт.

14

1010452

Planet Pinion Carrier

(SUB FOR AT130328)

1шт.

15

3036162

Planet Pinion

(SUB FOR AT130342)

3шт.

16

4192635

Pin Fastener

(SUB FOR AT130380)

3шт.

17

4192637

Plate

(SUB FOR AT130381)

6шт.

18

4354271

Needle Bearing

(SUB FOR AT130375 ) (SUB FOR AT214453)

6шт.

19

34M7014

Spring Pin

5 X 60 mm (SUB FOR TH102300)

3шт.

20

3015555

Sun Gear

(SUB FOR TH105880)

1шт.

22

40M7066

Snap Ring

(SUB FOR TH100498)

2шт.

23

2023141

Planet Pinion Carrier

(SUB FOR AT130335)

1шт.

24

3036161

Planet Pinion

(SUB FOR AT130341)

3шт.

28

4173093

Spring Pin

(SUB FOR TH108841)

3шт.

29

19M8169

Screw

M12 X 30 (SUB FOR TH105691)

16шт.

19M8011

Cap Screw

M12 X 30

16шт.

31

12H301

Lock Washer

1/2"

16шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

16шт.

32

94-2013

Fitting Plug

(SUB FOR AT128487 ) (SUB FOR TH100648)

3шт.

33

2024995

Shaft

(SUB FOR AT130339)

1шт.

34

3036164

Plate

(SUB FOR AT130344)

6шт.

3064191

Plate

(SUB FOR AT164168)

6шт.

35

3036165

Plate

(SUB FOR AT130345)

5шт.

3064192

Plate

(SUB FOR AT164170)

5шт.

36

3036166

Piston

(SUB FOR AT130346)

1шт.

37

4150683

Ring

89.600 X 5.700 mm (3.528" X 0.224") (SUB FOR AT130376)

1шт.

38

4150684

Ring

118.600 X 5.700 mm (4.669" X 0.224") (SUB FOR AT130377)

1шт.

39

3017067

Washer

104 X 152 X 2.500 mm (4-3/32" X 5- 63/64" X 0.098") (SUB FOR TH105888)

1шт.

41

40M7062

Snap Ring

(SUB FOR TH106273)

1шт.

42

4154877

O-Ring

(SUB FOR TH110468)

1шт.

43

M800650

Packing

1шт.

44

M341495

Bolt

(SUB FOR 4192042 ) (SUB FOR TH110499)

6шт.

45

12H317

Lock Washer

9/16"

6шт.

46

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

47

4194833

Pin Fastener

(SUB FOR AT130394)

3шт.

48

4194831

Plate

(SUB FOR AT130392)

6шт.

49

4194832

Needle Bearing

(SUB FOR AT130393)

3шт.

50

Motor

( AT130498 NO LONGER AVAILABLE)

2шт.

60

19M8295

Cap Screw

M16 X 55 (SUB FOR AT130 325 ) (SUB FOR 19M7480)

24шт.

61

12H294

Lock Washer

5/8"

24шт.
