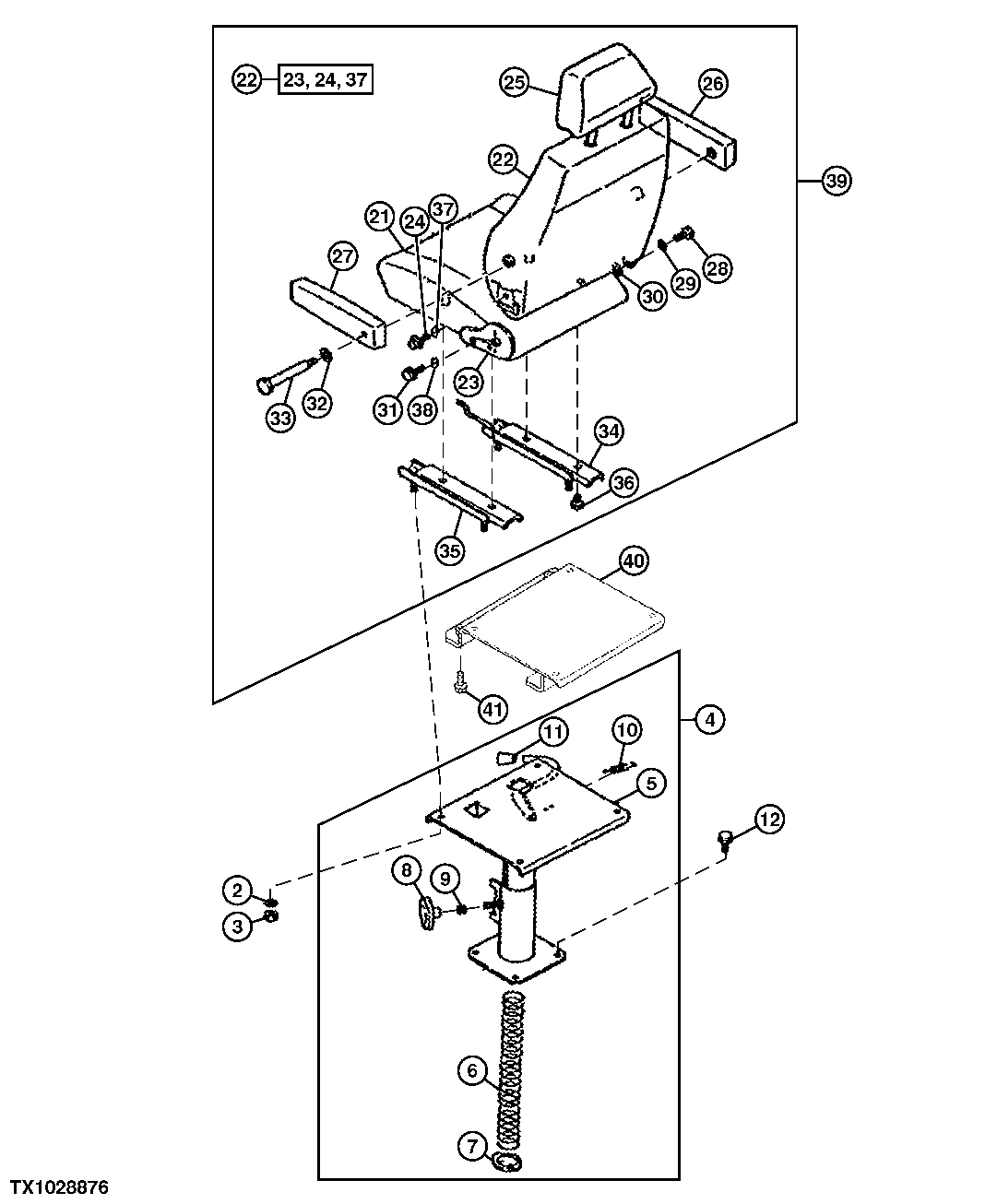

Запчасти John Deere 90D 103 - SEAT 1821 SEAT AND SEAT BELT

2

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

3

14M7273

Nut

M8

4шт.

4

4178550

Stand

SUB FOR TH108740

1шт.

5

Support

SUB TH108740

1шт.

6

4206087

Spring

SUB FOR TH108741

1шт.

7

3039222

Plate

SUB FOR TH108742

1шт.

8

3039223

Knob

SUB FOR TH108743

1шт.

9

3039221

Spring

SUB FOR TH108744

1шт.

10

3030268

Extension Spring

SUB FOR TH101616

1шт.

11

3030267

Grip

SUB FOR TH101615

1шт.

12

19M7402

Cap Screw

M10 X 25

4шт.

21

0368101

Cushion

SUB FOR AT126054

1шт.

22

0368102

Seat Back

SUB FOR AT126055 For Use With Headrest

1шт.

0368102

Seat Back

SUB FOR AT168203, 4331470 OR AT 126055 For Use Without Headrest

1шт.

0368102

Seat Back

SUB FOR AT126055 For Use With Headrest

1шт.

23

0340803

Adjuster

SUB FOR TH111648

1шт.

24

19M7402

Cap Screw

M10 X 25 SUB FOR TH104 152, ALONG WITH 12M7066

2шт.

25

0368103

Head Restraint

SUB FOR AT126056, USE WI TH TH112076 SEAT ASSEMBLY

1шт.

0368103

Head Restraint

SUB FOR AT126056, USE WI TH TH112076 SEAT ASSEMBLY

1шт.

26

0368104

Arm

SUB FOR AT126057 Right

1шт.

27

0368105

Arm

SUB FOR AT126058 Left

1шт.

28

Bolt

0262709 NLA, SUB FOR TH104153

1шт.

29

24M7434

Washer

13 X 20 X 2 mm SUB FOR 0262710 AND TH104154

1шт.

30

12M7056

Lock Washer

8 mm SUB FOR TH104155 AND 12M7065

1шт.

31

19M7402

Cap Screw

M10 X 25 SUB FOR TH104 152, ALONG WITH 12M7066

2шт.

32

24M7434

Washer

13 X 20 X 2 mm SUB FOR 0262710 AND TH104154

2шт.

33

0340807

Bolt

SUB FOR TH111652

2шт.

34

0368106

Adjuster

SUB FOR AT126059 Right

1шт.

35

0304003

Adjuster

SUB FOR TH107001 Left

1шт.

36

0340808

Screw

SUB FOR TH111653

4шт.

37

12M7066

Lock Washer

10 mm

2шт.

38

12M7066

Lock Washer

10 mm

2шт.

39

Seat

4230833 NLA, SUB FOR TH112076, SUB 4679327 ALONG WITH (4) 19M7139, (4) 2 4M7055, (1) 8112099 Cloth With Headres t

1шт.

Seat

SUB TH112076, AT168202 N LA Cloth Without Headrest

1шт.

Seat

SUB FOR TH112076, 423083 3 NLA Cloth With Headrest

1шт.

4679327

Seat Assembly

SUB FOR 4230833, USE WITH (4) 19M7139, (4 ) 24M7055 AND 8112099 Cloth With Headrest

1шт.

40

8112099

Bracket

1шт.

41

Screw With Washer

J260820 NLA

4шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J900820

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.
