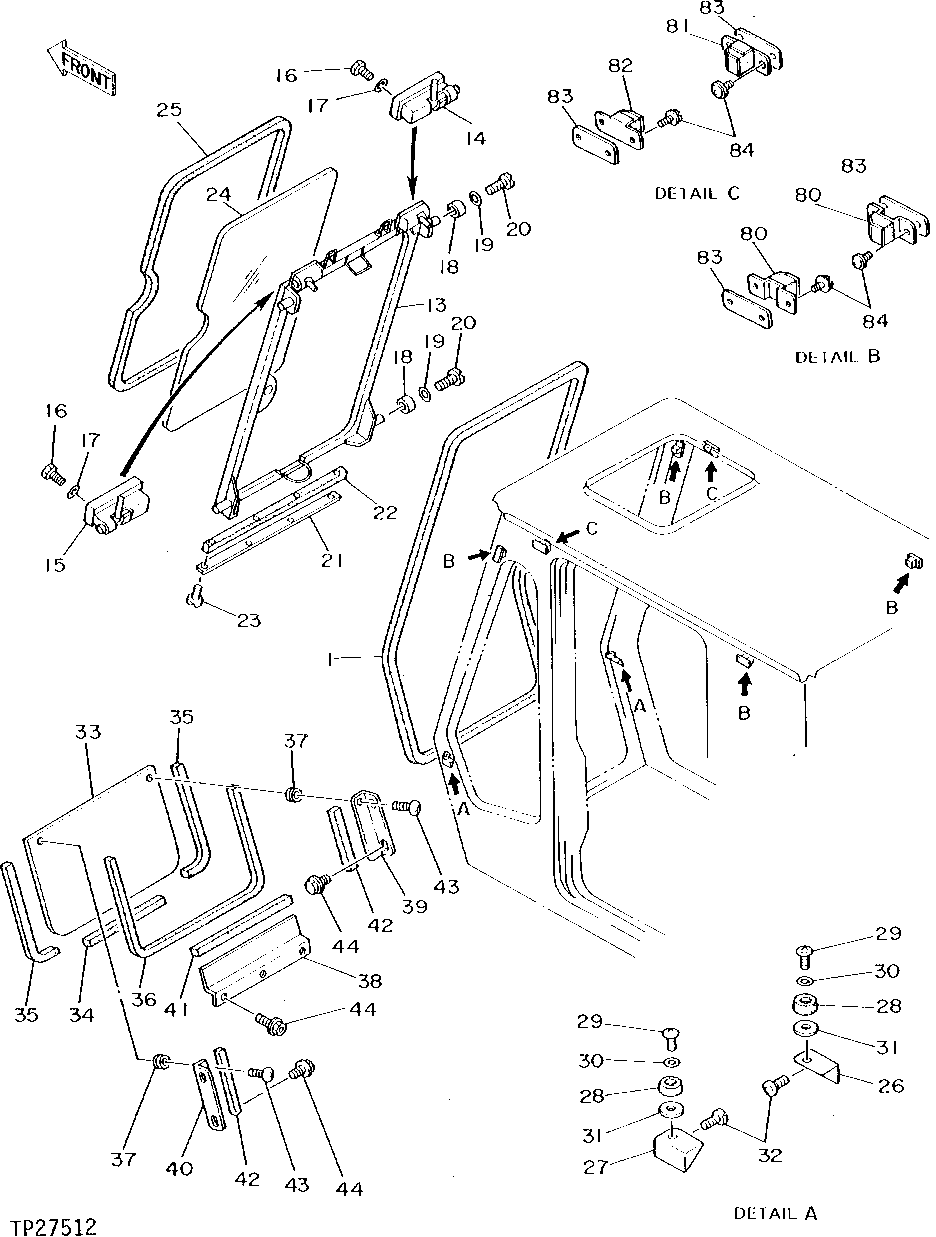

Запчасти John Deere 90D 97 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

1

4141616

Weatherstrip

(SUB FOR TH106516)

1шт.

13

4217826

Frame

(SUB FOR TH110691)

1шт.

14

4147957

Lock

(SUB FOR TH106523)

1шт.

15

4147958

Lock

(SUB FOR TH106651)

1шт.

16

19M8324

Cap Screw

M10 X 16

4шт.

17

12M7066

Lock Washer

10 mm

4шт.

18

4141623

Roller

(SUB FOR TH106524)

4шт.

19

24M7027

Washer

5.300 X 10 X 1 mm

4шт.

20

4141748

Screw

(SUB FOR TH106525)

4шт.

21

4141620

Strap

(SUB FOR TH106520)

1шт.

22

4141621

Barrier

(SUB FOR TH106521)

1шт.

23

21M7535

Screw

M5 X 16 (SUB FOR M470516)

4шт.

24

TH106517

Windowpane

1шт.

25

4141617

Weatherstrip

(SUB FOR TH106518)

1шт.

26

4217828

Bracket

(SUB FOR TH110692)

1шт.

27

4217829

Bracket

(SUB FOR TH110693)

1шт.

28

4141626

Bushing

(SUB FOR TH106528)

2шт.

29

Snap Ring

(SUB FOR TH106529)( 4141741 NLA)

2шт.

21M7271

Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

30

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

31

24M7213

Washer

10.500 X 25 X 4 mm (SUB FOR TH106645)

2шт.

32

Screw

(SUB FOR TH107996)( 4189968 NLA)

4шт.

19M7560

Cap Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7088

Washer

6.600 X 12 X 1.600 mm

4шт.

33

TH106531

Windowpane

1шт.

34

4217830

Weatherstrip

(SUB FOR TH110694)

1шт.

35

4217832

Weatherstrip

(SUB FOR TH110695)

2шт.

36

4601125

Isolator

(SUB FOR TH110755 OR 42179 35)(INCLUDES THREE STRIPS)

1шт.

37

4141880

Isolator

(SUB FOR TH106533)

2шт.

38

4217833

Bracket

(SUB FOR TH110696)

1шт.

39

4217834

Bracket

(SUB FOR TH110697)

1шт.

40

4217835

Bracket

(SUB FOR TH110698)

1шт.

41

4233072

Weatherstrip

(SUB FOR TH110699)

1шт.

42

4233073

Weatherstrip

(SUB FOR TH110700)

2шт.

43

4219493

Screw

(SUB FOR TH110773)

2шт.

44

Screw With Washer

(SUB FOR TH110701)( 4217838 NLA)

7шт.

19M8425

Cap Screw

M6 X 16

7шт.

12M7006

Lock Washer

6 mm

7шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

7шт.

80

4141693

Stop

(SUB FOR TH106602)

4шт.

81

4141695

Stop

(SUB FOR TH106604)

1шт.

82

4141696

Stop

(SUB FOR TH106605)

1шт.

83

4217936

Shim

(SUB FOR TH110756)

6шт.

84

Screw

(SUB FOR TH107996)( 4189968 NLA)

12шт.

19M7560

Cap Screw

M6 X 16

12шт.

12M7006

Lock Washer

6 mm

12шт.

24M7088

Washer

6.600 X 12 X 1.600 mm

12шт.

85

4369154

Cab

(SUB FOR TH110615)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE, OTHER COMPONENTS LISTED ON FOLLOWING PAGES) (USE IF AVAILABLE )

1шт.

4369154

Cab

(SUB FOR TH110615 ) (SUB FOR AT130697 )(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.
