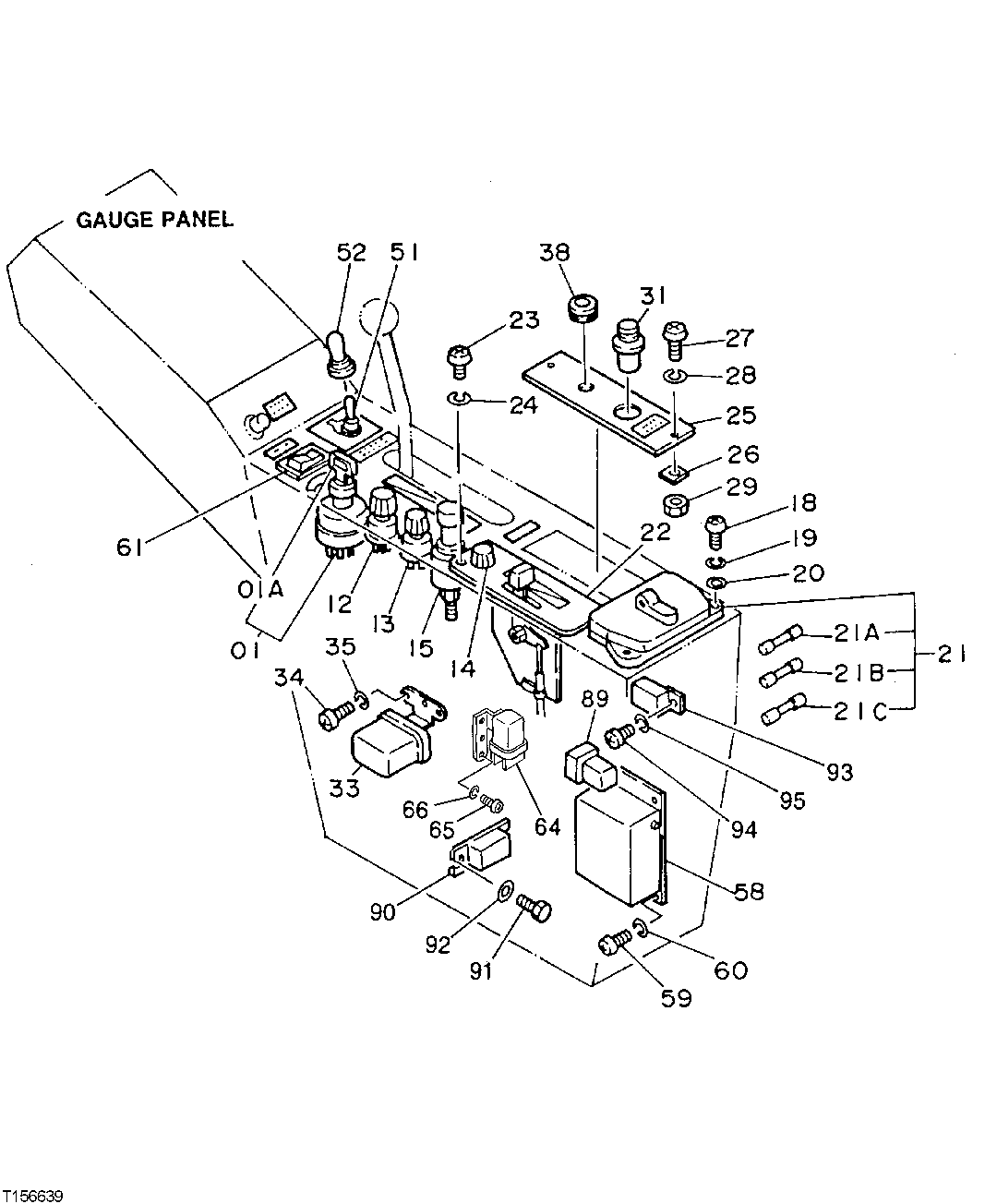

Запчасти John Deere 90D 87 - Control Panel Electrical Components 1674 WIRING HARNESS AND SWITCHES

1

4237505

Switch

SUB FOR TH108551 OR 4186744, IGNITION

1шт.

1A

AT194969

Key

SUB FOR TH108552 AND AT147803

1шт.

12

4184396

Switch

LIGHT SUB FOR TH108556

1шт.

4268740

Knob

SUB FOR AT130799

1шт.

13

4184398

Switch

WIPER SUB FOR TH108559

1шт.

4268741

Knob

SUB FOR AT130801

1шт.

14

4184397

Switch

HEATER SUB FOR TH108557

1шт.

4268750

Knob

SUB FOR AT130800

1шт.

15

AR60937

Electrical Lighter

SUB FOR TH108558 ALONG WITH AT786 33, AT78634 AND AU42809, 12 VOLT

1шт.

AT78633

Housing

12 VOLT

1шт.

AT78634

Wiring Lead

12 VOLT

1шт.

AU42809

Resistor

12 VOLT

1шт.

Electrical Lighter

4357862 NO LONGER AVAILABL E SUB FOR AT190190, 24 VOLT

1шт.

18

21M7277

Screw

M6 X 25

2шт.

19

12M7006

Lock Washer

6 mm

2шт.

20

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

21

4205437

Fuse Box

SUB FOR TH108560

1шт.

21A

AT58169

Fuse

1 Amp 1 AMP

3шт.

21B

AT28077

Fuse

10 Amp 10 AMP

9шт.

21C

AT39227

Fuse

15 Amp 15 AMP

5шт.

22

4456566

Control

HEATER SUB FOR 4189169, ALSO ORDER 4248908

1шт.

4248908

Cable

SUB FOR AT194604

1шт.

23

21M7396

Screw

M4 X 10

4шт.

24

12H315

Lock Washer

0.164" SUB FOR 12M7063

4шт.

25

4200522

Plate

SUB FOR TH108564

1шт.

26

4200521

Plate

SUB FOR TH108565

2шт.

27

21M7455

Screw

M6 X 20 SUB FOR 21M7085

2шт.

28

12M7006

Lock Washer

6 mm

2шт.

29

14M7272

Nut

M6

2шт.

31

4155755

Switch

START AID SUB FOR TH101582

1шт.

33

T116141

Relay

SUB FOR 4505392 AND TH100585, HORN

1шт.

34

21M7288

Screw

M6 X 10

2шт.

35

12M7006

Lock Washer

6 mm

2шт.

38

4146754

Bumper

SUB FOR TH100572

1шт.

51

AN15089

Toggle/Rocker Switch

AUTO IDLE SUB FOR TH110482

1шт.

52

4042098

Cap

SUB FOR TH103939

1шт.

58

9062123

Panel

SUB FOR TH110961

1шт.

59

21M7288

Screw

M6 X 10

4шт.

60

12M7006

Lock Washer

6 mm

4шт.

61

4251778

Switch

MODE SELECT SUB FOR TH112234

1шт.

64

4357038

Relay

SUB FOR AT82709, AUTO IDLE

1шт.

65

21M7278

Screw

M5 X 10

2шт.

66

12M7064

Lock Washer

5 mm

2шт.

89

4192489

Diode

SUB FOR TH110500

1шт.

90

AT85258

Relay

STARTER, SUB AT145341, ALON G WITH (2) T28583 CONNECTORS

1шт.

AT145341

Relay

STARTER

1шт.

14M7165

Lock Nut

M6 STARTER RELAY TERMINALS

2шт.

91

19M7300

Cap Screw

M6 X 10

2шт.

92

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

93

4205029

Relay

LOAD DUMP SUB FOR TH108573

1шт.

94

21M7288

Screw

M6 X 10

1шт.

95

12M7006

Lock Washer

6 mm

1шт.
