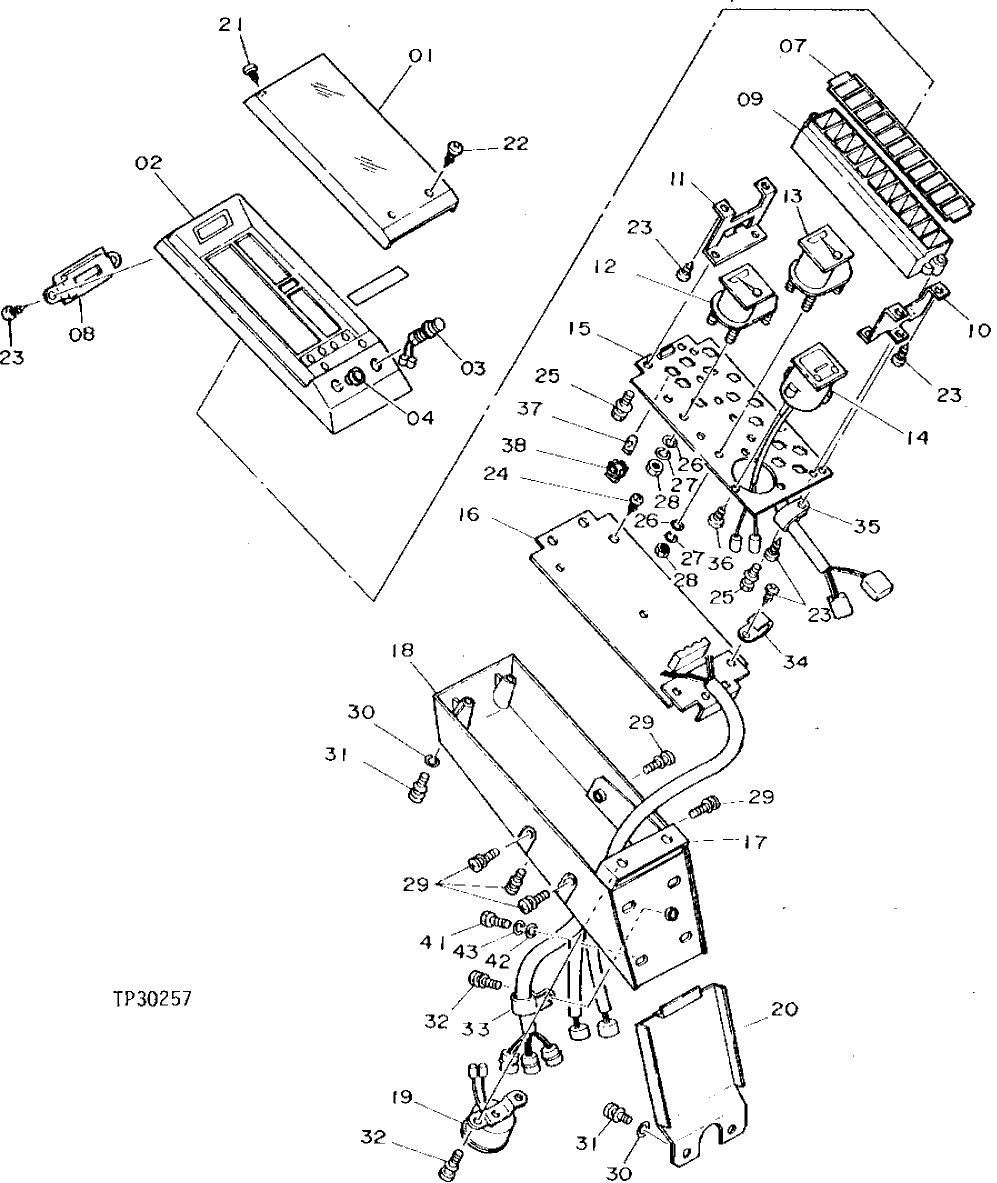

Запчасти John Deere 90D 86 - GAUGE PANEL 1674 WIRING HARNESS AND SWITCHES

1

Cover

4208843 NLA, SUB FOR TH108514

1шт.

2

4208844

Housing

SUB FOR TH108515

1шт.

3

4208845

Switch

SUB FOR TH108516, BUZZER CANCEL

1шт.

4

4210973

Cap

SUB FOR T114522, LEVEL CHECK

1шт.

7

4210976

Lens

SUB FOR TH110606

1шт.

8

4210977

Label

SUB FOR TH110607

1шт.

9

4208851

Housing

SUB FOR TH108522

1шт.

10

4208852

Bracket

SUB FOR TH108523

1шт.

11

Bracket

SUB FOR TH108524, 4208853 NSEP

1шт.

12

Temperature Gauge

4208854 NLA, SUB FOR TH108525

1шт.

13

Gauge

4208855 NLA, SUB FOR TH108526, FUEL

1шт.

14

4208856

Hour Meter

SUB FOR TH108527

1шт.

15

4210975

Circuit Board

SUB FOR TH110605, DISPLAY

1шт.

16

4210978

Circuit Board

SUB FOR TH110608, MONIT OR CONTROL PANEL (LOGIC)

1шт.

17

4208859

Bracket

SUB FOR TH108530

1шт.

18

4208860

Housing

SUB FOR TH108531

1шт.

19

4208861

Audible Warning Alarm

LOW ENGINE OIL PRESSURE, COOL ANT OVERHEAT, START WITH AUTO IDLE SWITCH ON SUB FOR TH10853 2

1шт.

20

4208862

Cover

SUB FOR TH108533

1шт.

21

4208864

Screw

SUB FOR TH108534, SUB FOR TH108535, 3 X 10

2шт.

22

4208864

Screw

SUB FOR TH108535, 3 X 12

2шт.

23

37H95

Screw

10шт.

24

37M7067

Screw

2шт.

25

21M7395

Screw

M4 X 8 M4 X 8

5шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

5шт.

12H315

Lock Washer

0.164" SUB FOR 12M7063

5шт.

26

4208868

Shim

SUB FOR TH108539, 3.2 X 6 X 0.5MM

8шт.

27

12H233

Lock Washer

1/8" SUB FOR 12M7048

8шт.

28

14M7030

Nut

M3

8шт.

29

21M7305

Screw

M6 X 12 M6 X 12

6шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

6шт.

12M7006

Lock Washer

6 mm SUB FOR 12M7099

6шт.

30

24M7117

Washer

4.300 X 9 X 0.800 mm

6шт.

31

21M7396

Screw

M4 X 10 M4 X 10

6шт.

12H315

Lock Washer

0.164" SUB FOR 12M7063

6шт.

32

21M7347

Screw

M5 X 14 M5 X 14

3шт.

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

12M7064

Lock Washer

5 mm

3шт.

33

4208874

Clip

SUB FOR TH108544

1шт.

34

4213161

Clip

SUB FOR T114524

2шт.

35

4210979

Clip

SUB FOR TH110609

1шт.

36

37M7181

Screw

SUB FOR TH108547, 4 X 12

3шт.

37

4208878

Bulb

SUB FOR TH108548 OR (14) T67008, SUB FOR TH108548

14шт.

38

4208879

Socket

SUB FOR TH108549

14шт.

41

19M7881

Screw

M8 X 20

4шт.

42

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

43

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.
