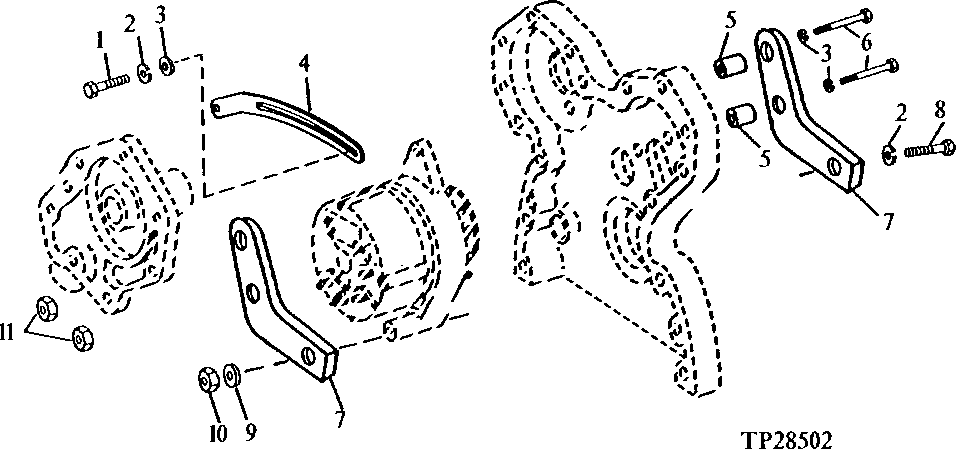

Запчасти John Deere 90D 83 - ALTERNATOR SUPPORTS 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING

1

19H1726

Cap Screw

3/8" X 2-1/4"

ARшт.

19H3065

Cap Screw

3/8" X 2"

ARшт.

2

12M7066

Lock Washer

10 mm

2шт.

3

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

4

T32853

Strap

1шт.

R108404

Strap

(SUB FOR R71250, THIS APPLICATION)

1шт.

5

28H2547

Spacer

0.423" X 0.675" X 1" 3/8" X 1"

2шт.

28H862

Spacer

0.423" X 0.675" X 7/16"

2шт.

6

19H3743

Screw

3/8" X 2-7/8"

2шт.

7

T20202

Bracket

1шт.

R59962

Bracket

1шт.

R57260

Bracket

2шт.

8

19M7329

Cap Screw

M10 X 75

1шт.

9

24H1822

Washer

11/32" X 7/8" X 1/16"

1шт.

10

14M7274

Nut

M10

1шт.

11

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.
