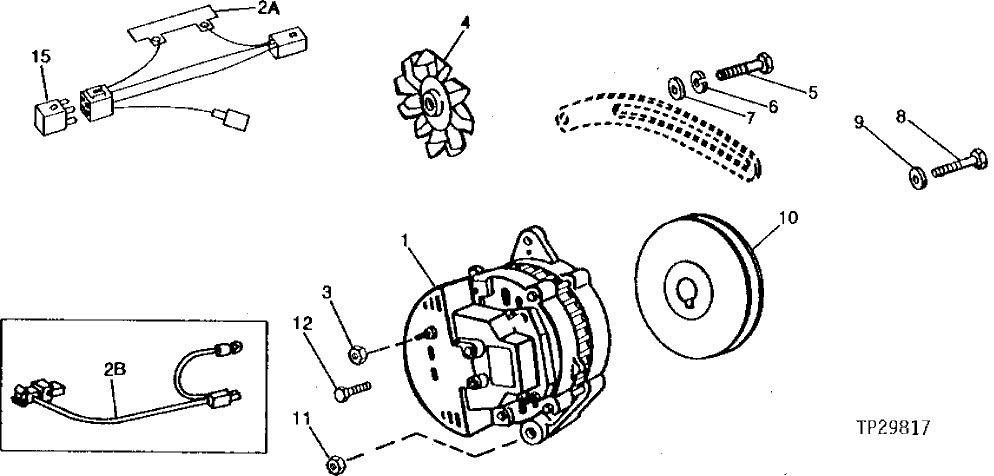

Запчасти John Deere 90D 82 - ALTERNATOR PULLEY AND FAN (XXXXXX - ) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING

1

Alternator

(24 VOLT - 40 AMPHERE) (DELCO-R EMY NO. 1101285) ( AT130930 NLA)

1шт.

Alternator

(REMANUFACTURED) ( TY6752 NLA)

1шт.

SE501377

Alternator

(REMAN FOR TY6752 OR AT130930)

1шт.

2A

AT131151

Wiring Harness

1шт.

2B

AT131151

Wiring Harness

(SUB FOR AT142344)

1шт.

3

14M7165

Lock Nut

M6

1шт.

4

R87764

Fan

1шт.

5

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288)

1шт.

6

12H303

Lock Washer

5/16"

1шт.

7

24H1621

Washer

11/32" X 1" X 0.220"

1шт.

8

19M8197

Cap Screw

M10 X 85

1шт.

9

24H1822

Washer

11/32" X 7/8" X 1/16"

ARшт.

10

T128132

Pulley

1шт.

11

14M7274

Nut

M10

1шт.

12

19M7865

Screw

M8 X 16

1шт.

15

T138822

Electrical Connector Assy

1шт.
