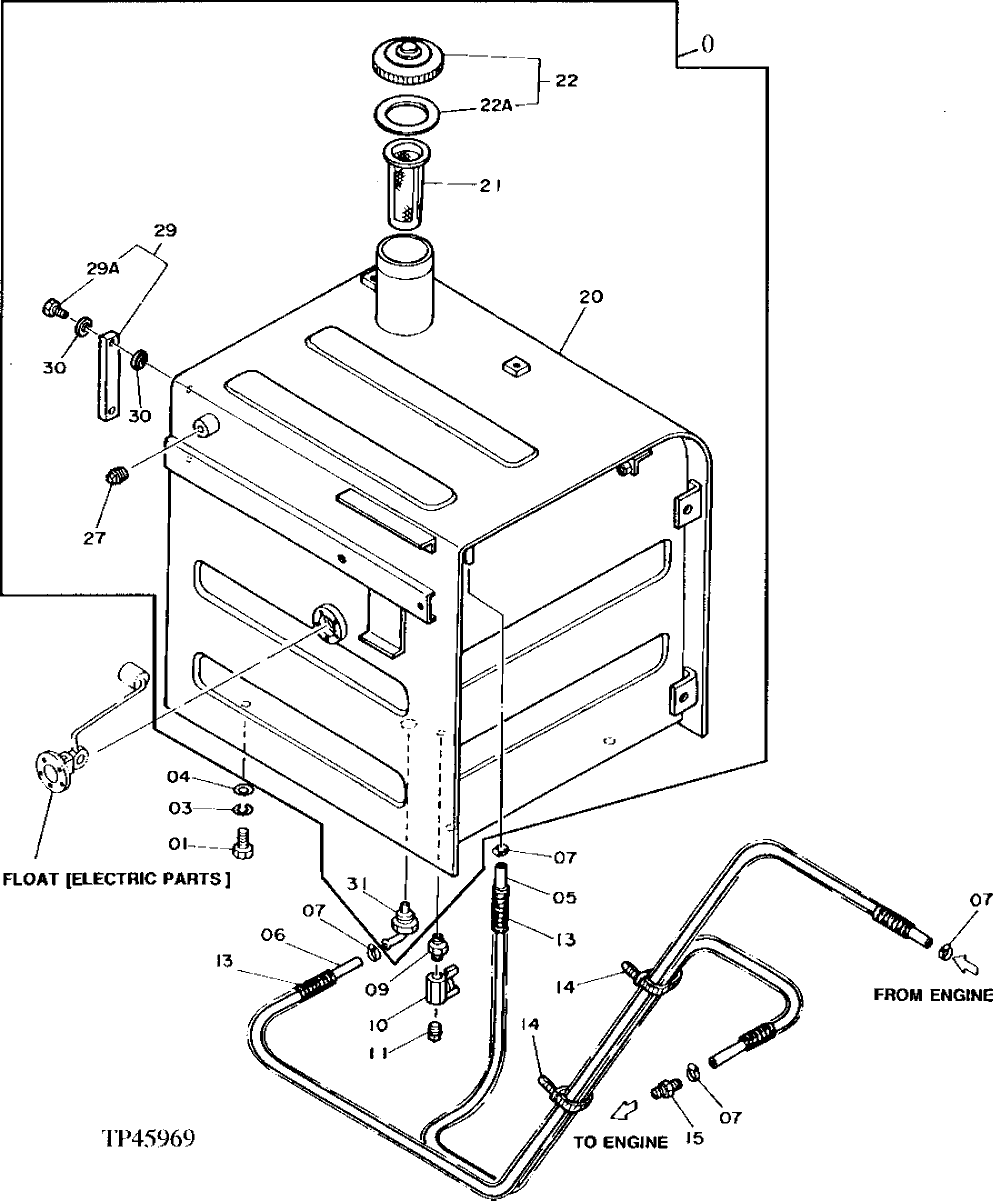

Запчасти John Deere 90D 67 - Fuel Tank 0560 EXTERNAL FUEL SUPPLY SYSTEMS

0

9076097

Fuel Tank

SUB FOR AT168538

1шт.

1

19M8035

Cap Screw

M16 X 35

4шт.

3

12H294

Lock Washer

5/8"

4шт.

4

4114405

Washer

SUB FOR TH101105

4шт.

5

Hose

AT130670 NO LONGER AVAILABLE, SUB TY225 61 BULK MATERIAL CUT TO LENGTH - 2800 MM

1шт.

6

Hose

AT130665 NO LONGER AVAILABLE, SUB TY225 61 BULK MATERIAL CUT TO LENGTH - 2500 MM

1шт.

7

TY22464

Clamp

SUB FOR TH100896 AND AT 145649, SUB FOR AR21836

4шт.

9

T116057

Fitting

SUB FOR TH101997

1шт.

10

4374265

Drain Valve

SUB FOR TH111035, SUB FOR AT177419

1шт.

11

M800462

Plug

SUB FOR TH101049

1шт.

13

T83427

Conduit

2шт.

14

H77698

Tie Band

2шт.

15

R67293

Fitting

SUB FOR TH100897

1шт.

20

Fuel Tank

AT130467 NO LONGER AVAILABLE

1шт.

21

4121496

Fuel Filter

SUB FOR TH100509

1шт.

22

4361638

Cap

SUB FOR TH108249, KEY LOCK ABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800, NOT ILLUSTRATED

1шт.

AT323462

Filler Cap

SUB FOR TH108249, AT175989 OR 4361638, CAN BE LOCKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

22A

4168820

Packing

SUB FOR TH103384, USE WITH TH108249 FUEL CAP

1шт.

27

94-2024

Fitting Plug

SUB FOR TH101292

1шт.

29

8033923

Level Gauge

ALSO ORDER (4) TH100675, SUB FOR TH108250

1шт.

29A

4100967

Bolt

SUB FOR TH101894

2шт.

30

449558

Washer

SUB FOR TH100675

4шт.

31

9726772

Fitting

SUB FOR TH108251

1шт.
